Passivation vs. Electropolishing for CNC Stainless Steel Parts

Introduction

Choose chemical passivation when the requirement is a specified surface treatment without intentional smoothing of the machined geometry. Consider electropolishing when controlled surface removal and smoothing are also required and the part can accommodate the dimensional effect. Both decisions depend on the alloy, initial condition, application, drawing and acceptance requirements. A brighter appearance alone does not establish corrosion performance or dimensional compliance.

For overseas buyers ordering CNC stainless steel parts, “passivate,” “polish” and “clean” can become dangerously vague purchase-order notes. They describe different objectives. A supplier might quote a finishing operation while the buyer expects a particular roughness, or inspect a fit before a subsequent operation changes it. Clear requirements prevent those assumptions from becoming shipment disputes.

This guide compares the options from a machining and procurement perspective. Here, chemical passivation means a specified chemical treatment such as an approved immersion process; electropolishing is discussed separately as a material-removal process that can also produce a passive surface. Examples and images are illustrative, not customer case studies, production records or evidence of YILIU finishing certifications.

1. Define the Result Before Choosing the Process

Begin with the part’s role. Does it locate another component, contact a process fluid, slide against a seal, or present a visible cosmetic surface? Identify the surfaces that matter and the condition required after every manufacturing operation. Different surfaces on the same part may have different acceptance needs.

Avoid translating a service requirement directly into “make it shiny.” A reflective surface can still have an unacceptable dimension, residual contamination or a defect. Equally, a satisfactory functional surface need not look like a mirror. Define performance, geometry, roughness, cleanliness and appearance as separate requirements where each is relevant.

The table is a selection aid, not a guarantee that either route is suitable for a particular environment. The design authority and finishing supplier must resolve the project-specific conditions.

2. Understand What the Standards Cover

ASTM A967/A967M-25 addresses chemical passivation treatments and alternative verification tests for stainless steel parts. Its public scope explicitly does not select a grade, treatment or acceptance criterion for a particular application. A reference to the standard therefore needs a compatible purchasing specification, not an assumption that every listed option is interchangeable.

ASTM B912-26 covers passivation using electropolishing. Its public description explains that passivation can occur during properly controlled electropolishing and depends on the alloy and operating conditions. The current catalog identifies the 2026 edition; an existing drawing may call out another edition, which should not be changed without approval.

ASTM A380/A380M-25 provides broader guidance on cleaning, descaling, pickling and passivation. These names should not be collapsed into one undefined operation. Agree the applicable documents and editions with the processor. The public catalog summaries used here do not replace the full standards or the processor’s qualified procedures.

Write the required outcome into the order

Specify the governing document, permitted process choices where necessary, final acceptance requirements and required records. If the drawing and purchase order differ, resolve the conflict before machining. A finishing subcontractor should receive the same controlled requirements that govern the main supplier’s quotation.

3. Chemical Passivation Is Not a Shortcut Around Preparation

A part can arrive at finishing with cutting-fluid residues, handling marks, chips or contamination from earlier operations. Do not treat the finishing note as permission to send an undefined starting condition. Ask the supplier to explain the preparation stages included in its route and which issues require a different operation.

A practical review distinguishes removable contamination from geometry or surface damage. A visible groove, damaged sealing edge or dimensional error needs an engineering disposition; it should not simply be assigned to the passivation stage. If an acceptance issue is discovered late, identify the cause and affected parts before deciding on rework.

Chemical passivation is not intended as the means of generating a specified machining finish. Plan the cutting and any mechanical surface preparation to meet the required starting condition. Where a dimension is critical, retain an agreed final check rather than declaring that any chemical operation must have zero effect under all conditions.

Define what “clean” means for the application

Visual cleanliness is one useful observation, but it is not a universal cleanliness specification. A buyer may need defined limits or a named verification method for the application. State those requirements explicitly. Avoid adding sterile, medical, food-contact or high-purity claims unless the actual product and supply chain support them.

4. Electropolishing Requires a Dimensional Plan

Electropolishing removes metal rather than depositing a coating. It can change an external size, an internal opening and the shape of an edge. The amount and distribution of removal need a process-specific agreement; a general internet value is not a machining allowance for your part.

For an idealized cylindrical surface, uniform radial removal of an amount r would reduce an outside diameter by 2r or increase a bore diameter by 2r. That simple geometry explains why a small surface change can matter to a fit. It does not establish that a real electropolishing process removes material uniformly from every surface or feature.

Consider a hypothetical turned sleeve with a precision outside diameter, a mating bore and a thin shoulder. The buyer should identify all three interfaces, define which dimensions apply after treatment and ask the processor about the achievable result. Machining the part to its final nominal size first, then adding an undefined removal step, leaves the fit outcome uncertain.

Review sensitive features individually

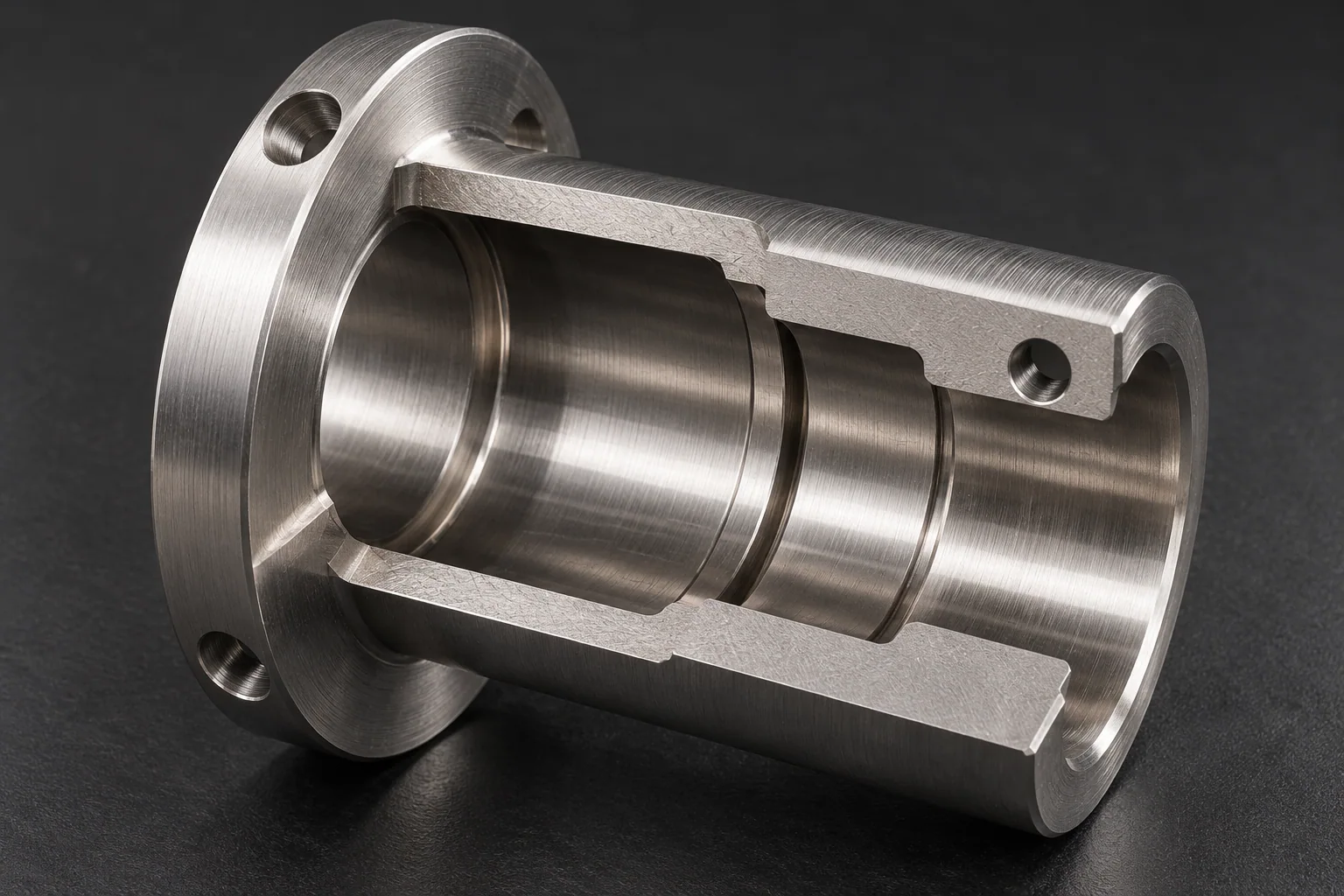

Threads, sealing lands, small cross-holes, narrow slots and sharp functional edges deserve explicit attention. Ask whether the proposed route is suitable and whether areas require exclusion, masking or another approved solution. Do not assume every surface can be protected equally, or that adding a masking instruction is always feasible.

Our custom sleeves and bushings guide explains why interface relationships should guide a machining enquiry. Apply the same principle when a finishing operation follows turning or milling.

Send Your Stainless Steel Drawing for Finish Review

Share the drawing, material grade, finish specification, final tolerances and intended service conditions. Mark critical bores, sealing surfaces, threads and appearance areas. Contact YILIU to review the information needed for machining and finishing coordination before a project-specific quotation is prepared.

5. Specify Roughness Separately from Brightness

A roughness requirement needs a defined parameter, location and measurement approach. Ra is one parameter; the number alone does not fully describe an interface or guarantee suitability. Include the applicable measurement specification and any additional surface requirements that the design needs.

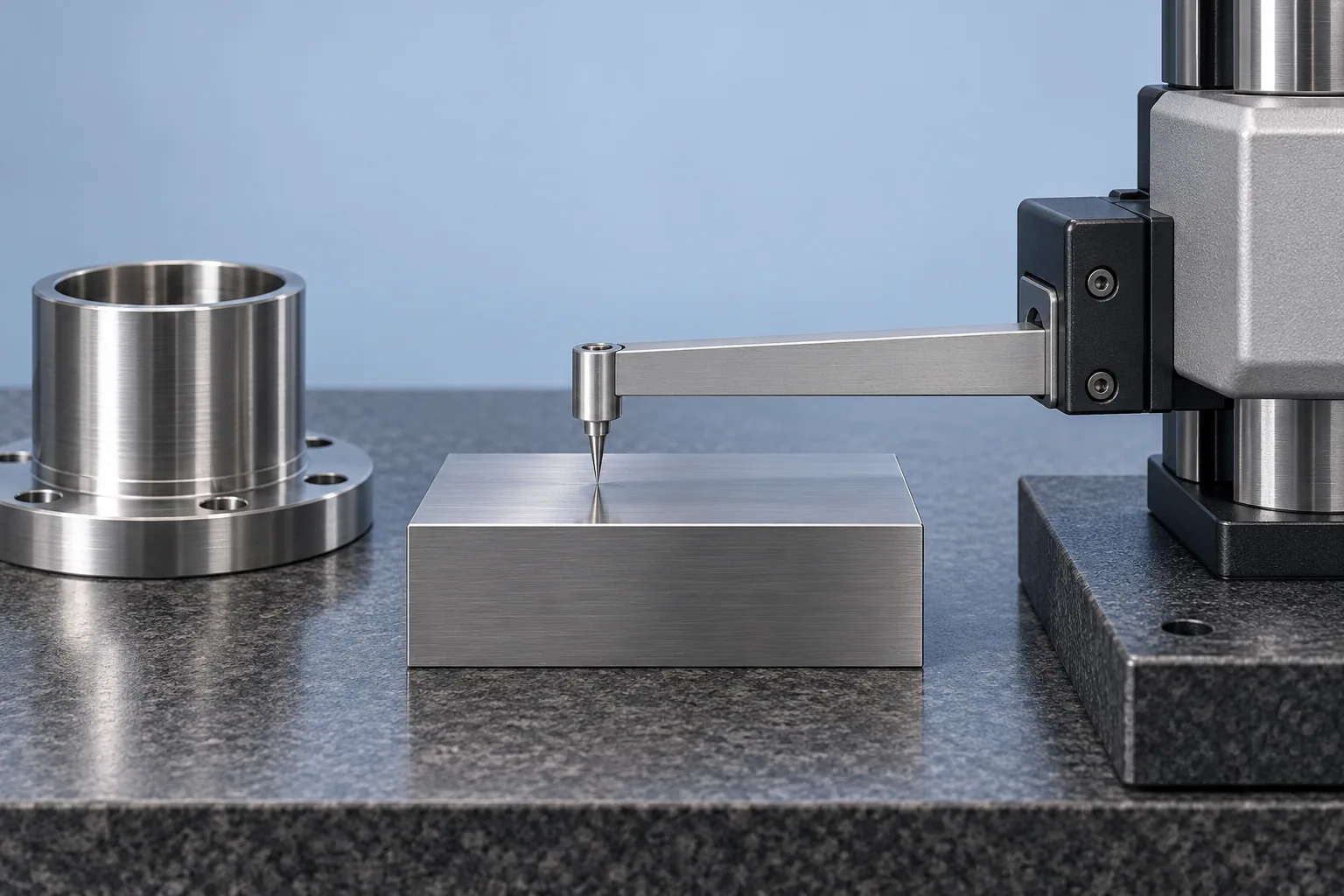

Agree where measurements will be taken and how the instrument reaches those locations. A flat external face, a small bore and an interrupted surface do not present the same measurement problem. If a feature is inaccessible, resolve an acceptable verification approach before production rather than substituting an easy location without authorization.

The British Stainless Steel Association’s electropolishing guidance discusses smoothing, initial surface condition and the limitations of removing visible irregularities. The useful buying implication is to assess the starting finish and geometry with the processor. Do not promise that electropolishing will erase any scratch or achieve any requested roughness regardless of the machined surface.

Separate three acceptance questions

Does the part meet the roughness requirement? Does it meet the visual requirement? Does it meet the dimensional requirement after treatment? Record each answer using the appropriate evidence. A photograph may support appearance review, but it cannot replace a roughness trace or dimensional result.

6. Match the Route to the Actual Stainless Grade

Start with the exact material designation and condition. Do not select a treatment solely from the broad label “stainless steel.” The finishing supplier needs the applicable grade, relevant processing history and any restrictions imposed by the application or drawing.

A proposed move from 304 to 316L is a material change, not a surface-treatment adjustment. It should pass through design approval. Likewise, selecting electropolishing does not convert one alloy into another or remove the need to assess the actual service environment. Our 304 versus 316L guide covers the separate material-selection discussion.

Tell the processor about assemblies, inserts or dissimilar materials if they are present. A route appropriate for a simple single-material part may not be suitable for an assembled component. Identify whether treatment occurs before assembly, after assembly or at another controlled stage, and how that choice affects inspection and handling.

For a new combination of alloy, geometry and finish, discuss a representative trial where appropriate. Agree what the trial must demonstrate and how the results will be evaluated. A trial is useful evidence for the conditions tested, not a blanket approval for every subsequent design or material substitution.

7. Plan Access, Contact Locations and Drainage

A finishing process must reach the surfaces named in the specification. Internal cavities, blind holes and intersecting passages require particular discussion. Show the processor the actual CAD model, not only the external envelope or a photograph that hides internal features.

Ask how the part will be held and which contact marks may remain. Identify prohibited contact areas on functional or cosmetic surfaces. If the processor proposes a different arrangement, assess it against the drawing rather than accepting or rejecting it solely on appearance.

Rinsing and drainage also need a practical plan. A blind cavity can be difficult to inspect or dry, while a narrow passage may complicate removal of trapped residues. The design review should consider the accessible flow path and the final cleanliness requirement. This is a planning discussion, not a chemical operating recipe.

Machining quality remains important at these transitions. Cross-hole burrs or loose fragments should not be ignored because another surface operation follows. Define edge requirements and verification. Our CNC deburring guide addresses the separate task of controlling edges and intersecting holes.

8. Agree Verification Before the Parts Reach Finishing

State what each inspection or test is intended to establish. Dimensional inspection checks geometry against the drawing. Roughness measurement checks the specified texture requirement. A passivation verification method addresses its defined surface-treatment acceptance question. These are related activities, but they are not interchangeable evidence.

Avoid requests such as “provide all corrosion tests” without defining the application and contractual requirement. Ask the responsible quality and engineering teams to select appropriate methods, sampling and acceptance rules with the processor. A test name alone is incomplete without a clear interpretation of the required result.

Factory testing records should identify the part or lot, drawing revision, treatment reference and reported activity. For an outsourced operation, agree how the machining supplier will retain and connect the processor’s documents to the delivered parts. Do not confuse a general supplier capability statement with records for your order.

Check the finished state

If a tolerance applies after all finishing, the acceptance plan must address that final state. Define which characteristics are checked before treatment for process control and which are verified afterward for release. Our first-article inspection guide can help connect drawing requirements to a structured report.

9. Compare Quotations and Protect the Finished Surface

Compare the same scope: preparation, treatment, handling, verification, documentation and packaging. A low finishing price may exclude work that another quote includes. Quantities, geometry and access requirements can also affect the proposed route. Request explicit assumptions rather than applying a universal price ratio between the two processes.

Do not order both treatments automatically because that sounds more protective. Electropolishing and passivation are not always independent steps with additive benefits. Ask whether a separate operation is required by the governing specification or application, and have any proposed omission or addition approved through the project’s normal change process.

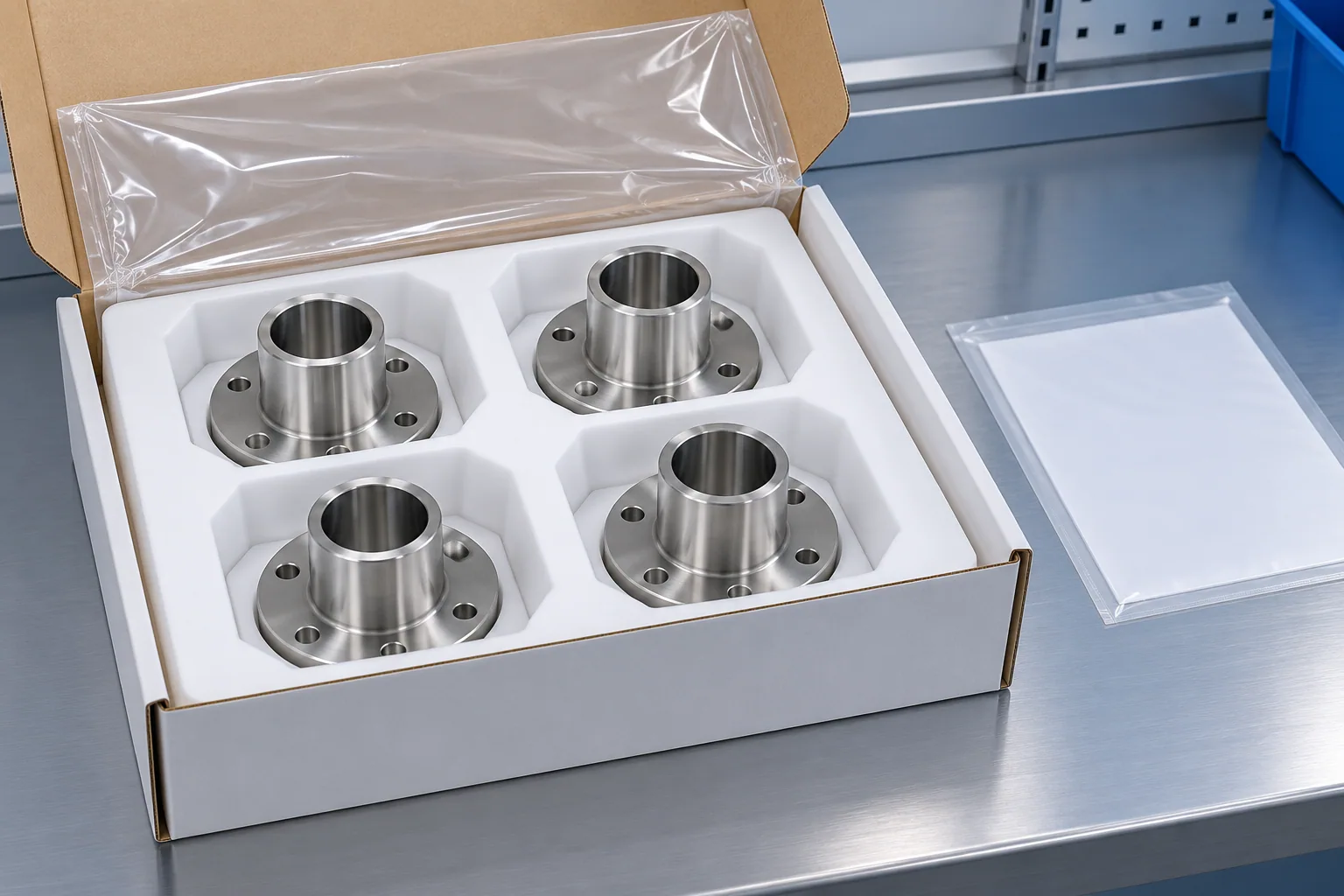

Shipment inspection should confirm identification, quantity, agreed surface condition and the required records. Protect parts from rubbing, scratching and mixing with unapproved revisions. Specify packaging compatible with the actual cleanliness and storage requirements; ordinary protective packing does not establish sterile or high-purity status.

During installation preparation, use the handling and cleaning instructions defined for the application. If the surface is damaged or contaminated after release, assess the effect before use. Keep feedback linked to the relevant batch so an issue can be investigated without assuming that the original machining or finishing step caused it.

FAQ

Is passivation the same as electropolishing?

No. In this comparison, chemical passivation is a specified chemical surface treatment, while electropolishing also deliberately removes surface metal. The processes can overlap in their passivation outcome. Choose the route against the drawing, application and final acceptance requirements.

Will passivation improve the Ra value of a CNC part?

Do not specify it as the operation that creates your required roughness. Define the machining or surface-preparation route and verify the final surface. A treatment label does not demonstrate a measured texture result.

Does electropolishing affect dimensions?

It removes metal, so the dimensional effect needs review. Specify final-state tolerances and agree allowances with the processor. Do not copy a generic removal figure into a precision-fit drawing without confirming that it is suitable for the actual geometry and process.

Must electropolished parts also receive chemical passivation?

Not automatically. Review the governing specification and agreed process with the finishing supplier. A separate step should follow a defined requirement, rather than an assumption that two treatment names always provide a better result.

Can a shiny part still fail inspection?

Yes. Appearance does not prove size, roughness, cleanliness or treatment compliance. Define each required characteristic and retain the appropriate evidence for it. Photographs support visual review but do not replace measurement or agreed test records.

What should a buyer send with the RFQ?

Send CAD and the controlled drawing, exact material, treatment specification and edition, final tolerances, roughness locations, contact restrictions, quantities and documentation needs. Describe service conditions and unresolved questions so the quotation can state its assumptions clearly.

Conclusion

Passivation and electropolishing should be selected through a clear definition of the finished part. The decision involves more than corrosion language or a preferred appearance: material, starting condition, feature geometry, dimensional allowance, verification and handling all belong in the review.

For CNC buyers, the practical step is to coordinate machining and finishing before the drawing and quotation are released. Define the final-state requirements, resolve the processor’s assumptions and retain evidence tied to the delivered batch. That creates a more reliable basis for acceptance than an undefined instruction to polish or passivate.
