Deburring CNC Parts: Edge Breaks, Cross-Holes, and Buyer Inspection

Introduction

“Remove all burrs” is a familiar drawing note, but it does not answer every purchasing question. Which edges may lose material? Does a hole intersection need inspection? Must an intentionally sharp feature remain sharp? What evidence will receiving accept?

The direct answer: specify the required edge condition, identify critical and protected edges, and agree on an inspection method with adequate access. Define any chamfer or radius separately when its geometry matters. Treat cleanliness and functional testing as additional requirements rather than assuming deburring proves both.

This guide helps OEM engineers, technical buyers, and quality teams order CNC milled and turned components with reviewable edge requirements. It covers exterior edges, threaded entrances, and internal cross-holes. Examples are hypothetical engineering scenarios, not YILIU customer results. Feasibility depends on the drawing, material, geometry, finishing sequence, and order requirements.

1. Start with the Function of Each Edge

An edge can affect assembly clearance, seal installation, contact behavior, handling, appearance, or the release of particles. Those functions call for different controls. A single instruction to round everything can create problems as easily as an instruction that says nothing.

Mark the important edges on a controlled drawing or an accompanying reviewed view. Do not rely on a photograph of a different component to define the supplied part. When an edge cannot be reached by the proposed process or inspection method, resolve that limitation before manufacture.

Consider an illustrative sensor bracket with a locating shoulder and several clearance holes. The hole entrances may need a lead-in, while the locating shoulder must retain enough useful contact. Treating both regions with the same unrestricted hand-finishing instruction could alter the feature that positions the assembly.

2. Separate Edge Breaks, Chamfers, and Radii

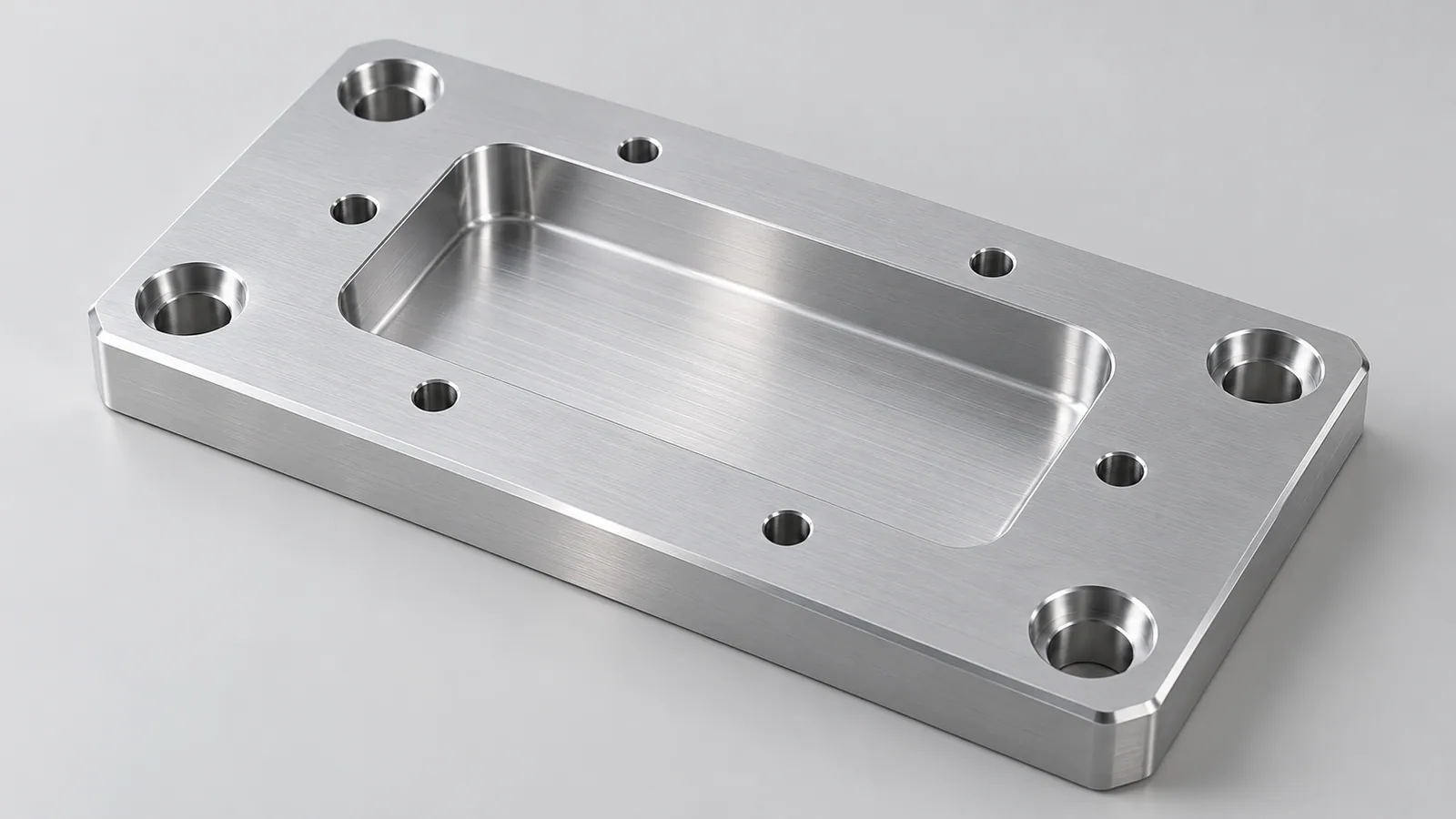

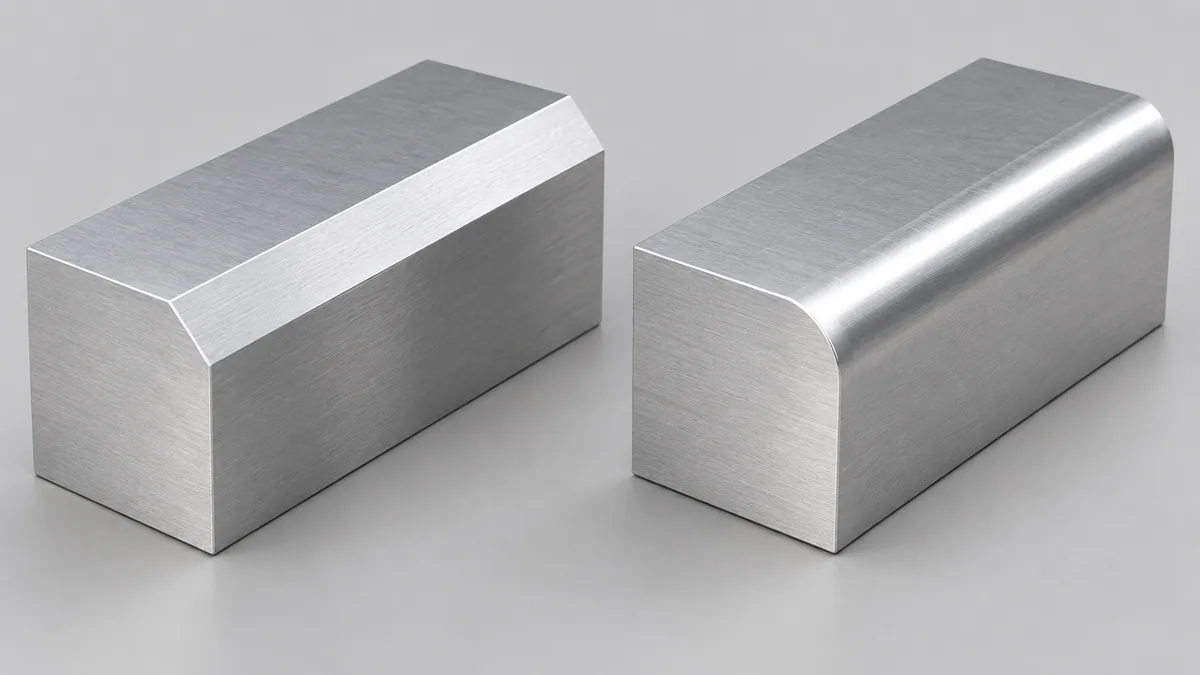

Deburring removes unwanted material left by manufacturing. An edge break is often used informally to describe a small edge treatment, but the phrase alone may leave its size and shape unclear. A chamfer specifies a beveled geometry; a radius specifies a rounded geometry. These terms should not be used as substitutes when function depends on the resulting shape.

Use geometry when geometry matters

If a fastener needs a defined entry feature, or an assembly requires a particular rounded transition, show the relevant size, tolerance, and location. For a hypothetical drawing review, a specified 0.2 mm chamfer at 45 degrees conveys different geometry from a 0.2 mm radius. These example values are not recommended defaults or a statement of YILIU capability.

ISO 13715:2017 addresses indication and dimensioning of edges of undefined shape. Its scope distinguishes those edges from geometrically defined shapes, for which the applicable dimensioning principles are used. The responsible engineer should select the appropriate drawing convention and applicable edition; a blog cannot replace the controlled specification.

State exceptions to general notes

Identify edges that must retain their intended condition, surfaces that must not be scratched, and regions where excessive removal would reduce a functional land. A general deburring instruction should not silently override a specific feature requirement.

Also clarify precedence when a model, drawing, general note, and purchase order appear inconsistent. Request a written resolution instead of asking the supplier to choose whichever interpretation is easiest. The CNC RFQ preparation guide helps keep these decisions tied to one revision.

3. Identify Internal Edges Before Choosing a Process

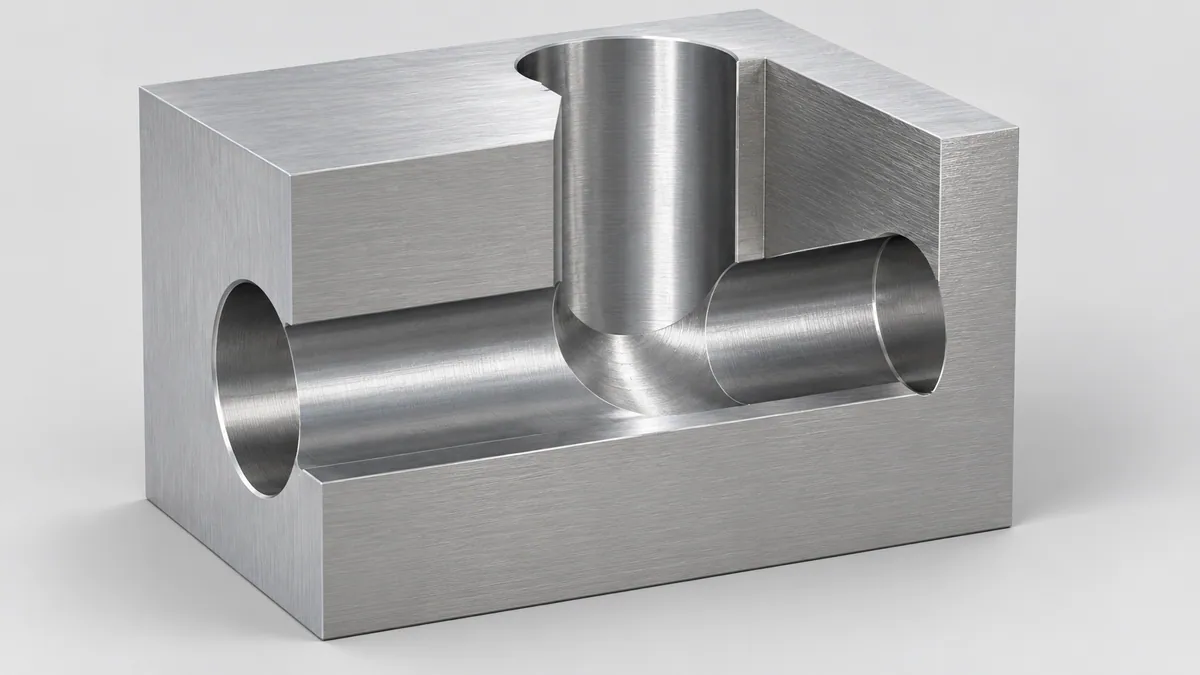

The outside of a component is only part of the review. Drilling can create an edge at the exit into another bore or pocket. That intersection may be difficult to see, reach, or clean after the next operation.

Describe the passage network

Provide section views or a model that makes the relevant intersections understandable. Include bore sizes, intersection positions, nearby threads, blind ends, and any later-installed plugs. Explain which passages are functional and whether access will remain available during final inspection.

Do not assume a tool that enters the main bore can reach every intersection edge. Its working envelope, projection, contact, and approach must suit the actual geometry. XEBEC’s cross-hole brush information illustrates a purpose-designed internal deburring option with product-specific application conditions. It does not establish that any brush will work in any intersecting hole.

Review inaccessible features early

Ask the supplier how the edge will be treated and verified before a plug or another feature blocks access. Alternatives might involve a different sequence, a revised access provision, or another suitable process. A design change needs approval from the responsible engineer.

For threaded blind features, distinguish the edge treatment from the required usable thread length. A larger entrance feature can consume space that the assembly expects to contain complete thread. Review the relationship using the blind tapped-hole depth guide rather than treating the operations independently.

4. Compare Methods Against the Required Result

The process name does not define acceptance. Review what material the proposed method removes, which surfaces it can affect, and how the delivered geometry will be checked.

Extrude Hone’s deburring overview discusses thermal, electrochemical, and abrasive-flow approaches with different objectives and application considerations. Burr removal, radiusing, and polishing are not automatically identical outcomes. These are industry process options, not a claim that YILIU owns or offers every listed technology in-house.

Ask whether any operation would require an external specialist and how its scope, traceability, and acceptance would be controlled. A familiar process name is not sufficient evidence that the actual component will meet its requirements.

Avoid making the operator solve an uncontrolled specification. If hand finishing is permitted, provide enough definition to distinguish acceptable treatment from excessive rounding or cosmetic repair. Where repeatability matters, include a review of the process instruction and inspection coverage in first-article planning.

Send a Clear Deburring RFQ

Send the drawing and model together, with one controlled revision. Identify the functional edges and internal intersections that need particular attention. The goal is a quotation for the required delivered condition, not simply a price for a generic “deburr” operation.

• Material grade, condition, quantity, and part identification.
• General edge requirements and specific chamfer or radius dimensions where required.
• Protected surfaces, intentional sharp edges, and limits on material removal.
• Internal passage geometry, available access, and assembly sequence constraints.
• Surface treatment and the condition in which acceptance applies.
• Inspection method, reporting needs, sampling agreement, cleanliness, and packaging requirements.

Ask suppliers to identify exclusions and proposed deviations in their response. A marked-up view showing an inaccessible edge is more useful than a blanket promise that all parts will be perfect. Assess any proposed change through the design owner before approving production.

5. Coordinate Deburring with Dimensions and Finishing

An edge operation can affect more than appearance. It may change a hole entrance, reduce a narrow contact surface, affect a thread lead-in, or mark a nearby cosmetic face. Check these relationships before selecting the sequence.

Accept the delivered condition

Clarify whether the specified edge condition applies before or after coating, treatment, or subsequent machining. Finishing can change what is visible and measurable. A pre-finish photograph alone may not demonstrate the final condition.

For aluminum, connect the edge plan with the anodizing tolerance requirements. Removing material after treatment can change protection and appearance. Do not assume that post-finish scraping, thread chasing, or reworking is acceptable without agreement.

Include delicate geometry in the review

A thin wall or narrow rib can be sensitive to both the finishing force and the amount removed. Specify the functional limit rather than allowing broad polishing until a sharp feature disappears. The thin-wall machining and inspection guide explains why handling and support conditions can also affect acceptance.

Where a critical edge controls assembly, ask whether a separate fit or functional check is required. Factory testing should have an agreed configuration and acceptance basis. An acceptable-looking entrance does not, by itself, prove sealing, locating accuracy, or correct fastener engagement.

6. Agree on an Inspection Method That Can See the Edge

“Visually checked” is incomplete if the important edge is hidden. The inspection plan must address visibility, coverage, and the characteristic being evaluated.

Define the observation conditions

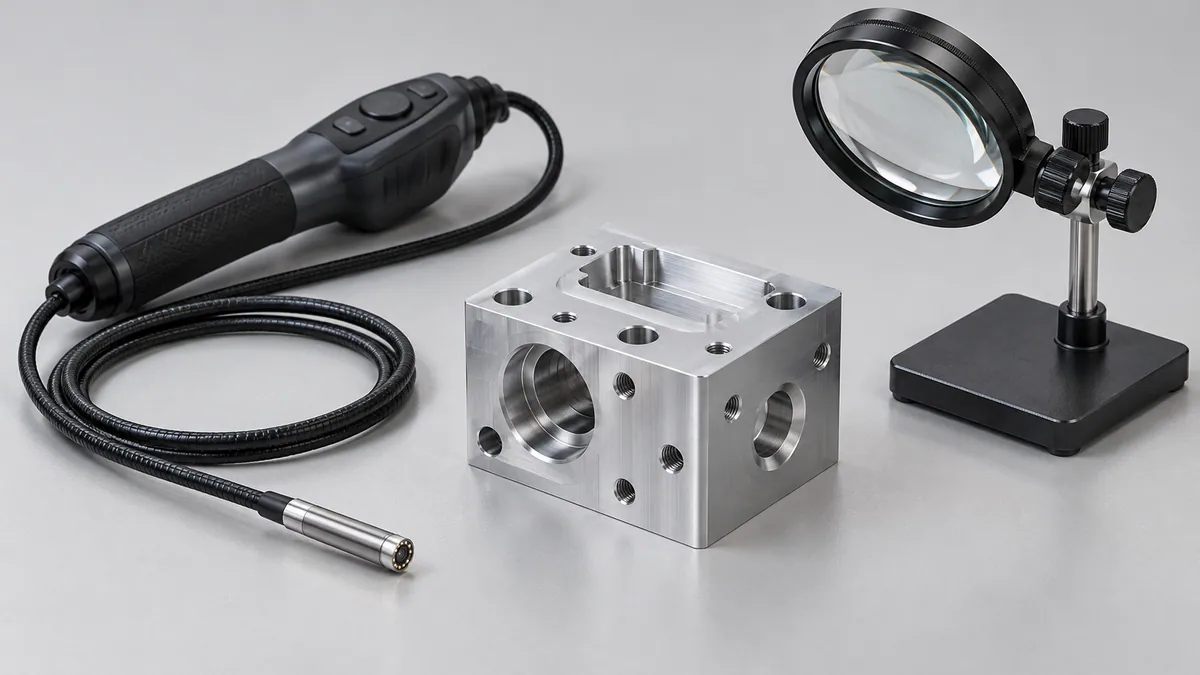

Identify the inspection stage, surfaces, viewing directions, access provisions, lighting, and suitable magnification where needed. If a borescope is proposed, confirm that its field of view and access allow the relevant intersection to be examined. A camera entering a hole is not proof that the complete edge has been inspected.

An image can support an observation, but it is not automatically a dimensional measurement. If acceptance depends on a small geometric limit, agree on a suitable measurement method and its practical limitations. Do not infer a size solely from an uncalibrated photograph or a display’s pixel count.

Make first-article evidence reviewable

Link critical edge checks to characteristic numbers, part identity, and drawing revision. Use annotated photographs or controlled setup descriptions where helpful, while preserving the actual acceptance requirement. The first-article inspection guide provides a structure for organizing the records.

If a first article cannot be inspected adequately without sectioning, discuss an appropriate qualification approach and how production control will relate to it. A sectioned sample may reveal a feature at one location; it does not automatically verify every production component.

Agree on routine inspection and sampling rather than assuming first-article approval covers all future batches. Changes to tooling, sequence, or specialist processing should be assessed for their effect on the accepted edge condition.

7. Keep Cleanliness Separate from Burr Acceptance

An attached burr and a loose particle are different conditions. Removing one does not prove the absence of the other. Deburring can itself leave material that must be removed through a suitable cleaning and handling sequence.

For a component used near seals or sensitive passages, explain the cleanliness requirement independently. Identify the affected areas, relevant contamination concerns, agreed verification method, and the condition that packaging must preserve. Avoid substituting a vague “clean and burr-free” note for a requirement with functional consequences.

ISO 16232:2018 concerns cleanliness of components and systems for road vehicles. Its framework should not be presented as a universal cleanliness specification for every CNC part. Where it is contractually applicable, qualified specialists should define the relevant requirements for the component and system.

Do not describe ordinary visual inspection as a cleanliness certification. Likewise, a cleanliness result does not prove that an internal edge has the correct chamfer, radius, or remaining material. Keep the records connected to the characteristics they actually address.

8. Protect the Result Through Shipment and Receiving

Before shipment inspection, reconcile part identity, revision, finishing status, edge acceptance, and any agreed deviation. Ensure that the inspection record describes the delivered batch rather than an earlier prototype or unfinished sample.

Choose packaging that protects treated edges from impacts and prevents parts rubbing against each other. Caps or plugs should suit the finish and cleanliness requirements; fitting them must not introduce damage or debris. Define which temporary protectors the receiving team must remove.

During installation preparation, inspect for transport damage and follow the released assembly instructions. Do not scrape a questionable internal feature or enlarge a chamfer at receiving without engineering review. Retain the affected part identification and report the location clearly.

If supplier and receiving decisions disagree, compare the requirement, inspection stage, access, observation conditions, and evidence before assigning a cause. A close-up from a different angle may show a different region. Preserve original records instead of replacing the acceptance criteria with whichever image looks more favorable.

9. Compare the Complete Quotation

Ask what each quotation includes: edge treatment, specialist work if needed, finishing sequence, internal inspection, cleanliness verification, reporting, and packaging. A lower machining price may omit one of these agreed deliverables.

Evaluate proposed simplifications by function. A revised access hole or a less restrictive edge geometry may improve manufacturability, but only if the design owner accepts its effect. Document the approved requirement before manufacture and use it consistently for supplier and receiving checks.

For custom CNC milling and CNC turning, provide the actual geometry and customer requirements. Feasibility, available processes, inspection effort, price, and delivery need project-specific review rather than assumptions based on a general guide.

FAQ

Does burr-free mean every edge needs a chamfer?

No. Burr removal and a defined chamfer are different requirements. Some edges need a specified geometric treatment; others may have protected functional conditions. Identify the intended result and exceptions on the controlled drawing.

Is an edge break the same as a radius?

Not necessarily. “Edge break” can be ambiguous without a size and shape definition. If the part needs a rounded geometry, specify the radius and its applicable limits rather than assuming an informal note communicates them.

How can internal cross-hole burrs be checked?

Select an inspection method that has adequate access and visibility, potentially including suitable optical equipment. Define coverage and acceptance before production. Qualification samples or other agreed approaches may be needed when direct inspection is limited.

Does deburring prove that a component is clean?

No. Edge acceptance and cleanliness address different conditions. Define the cleaning, verification, handling, and packaging requirements separately when contamination matters to the product application.

Can an AI image serve as inspection evidence?

No. AI illustrations can explain concepts, but actual acceptance evidence must relate to the identified component or batch and the agreed inspection procedure. The images in this article are explicitly illustrative.

Conclusion

A useful deburring specification connects edge function, permitted material removal, internal access, process sequence, and inspection. Define geometric treatments where needed and keep cleanliness and functional checks distinct. Clear requirements make quotations comparable and reduce disagreements during receiving and assembly.

Get a Quote for Your CNC Part

Send YILIU your drawing, model, material, quantity, finish, critical edge details, and internal passage requirements. Include inspection and cleanliness expectations so the review can address the complete delivered condition. Send your requirements to discuss feasibility before quotation.
