Five-Axis Machining a One-Piece 2A12 Aluminum Housing

Introduction

Five-axis machining is useful for a one-piece aluminum housing when its ring, side openings, ribs, and mounting faces must remain related to the same reference system. The challenge is to maintain tool access and structural support while material is removed. More axes expand the available cutting directions; the process still needs a realistic holding strategy, controlled finishing, and inspection after release.

The product owner supplied the four photographs accompanying this article and identified the component as 2A12 aluminum, produced as an integral part using five-axis machining. Its application and formal product name were not supplied. Here, “housing” describes the visible geometry rather than a confirmed equipment function. The pictures show an upper annular flange, an open internal cavity, side windows, connecting webs, a central post, and a shaped mounting base.

For OEM engineers and technical buyers, this example brings several procurement questions together: what does one-piece machining actually mean, where does machining difficulty arise, what should a supplier verify, and which drawing decisions affect cost? The following analysis separates visible features and owner-confirmed facts from engineering considerations that require CAD and process records.

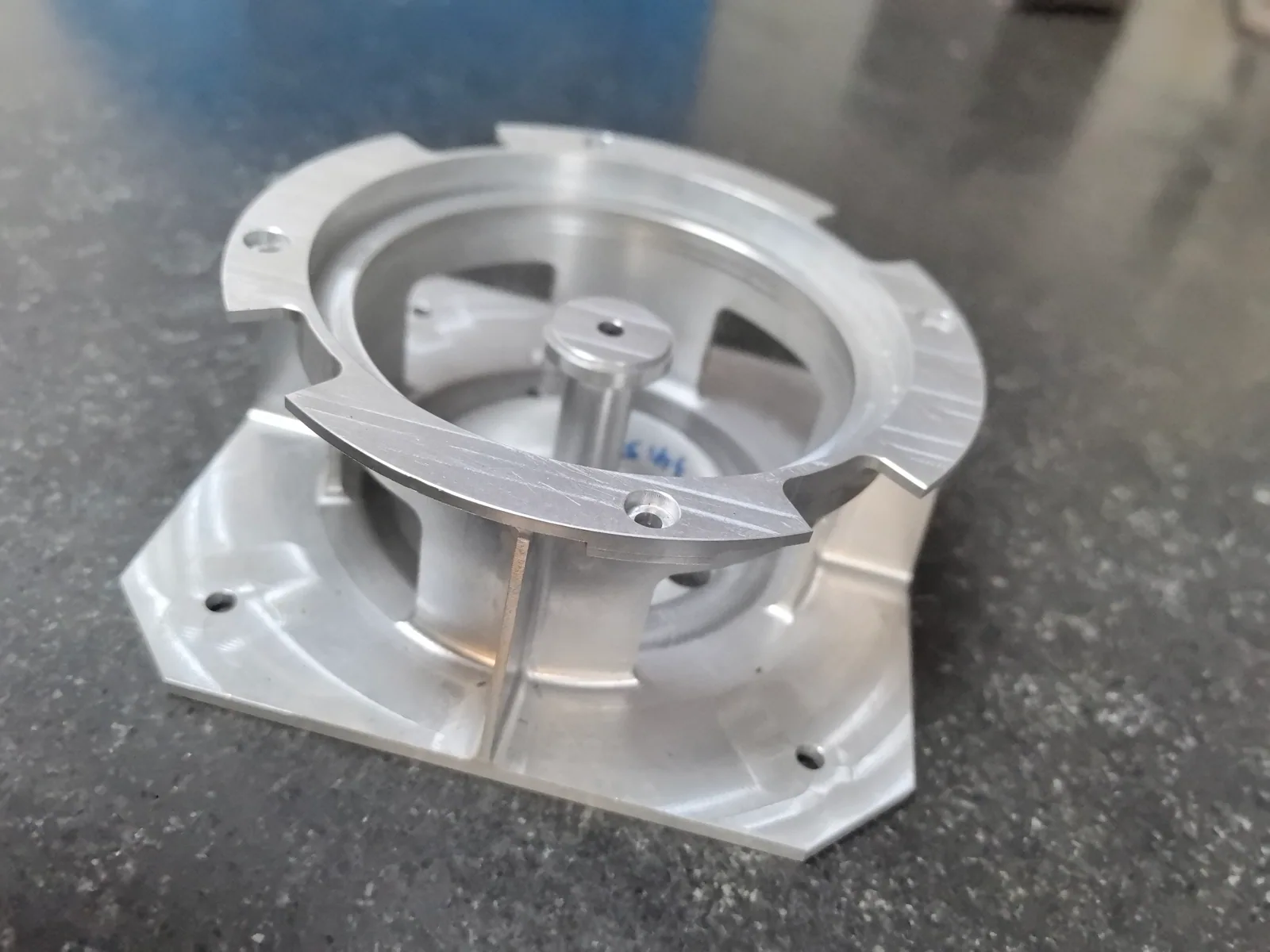

1. Read the Housing as Connected Features

This component is more demanding than a simple cylindrical pocket because its features interact. Removing material for a side window changes the stiffness of the surrounding cylindrical section. Finishing the annular flange can affect a comparatively flexible edge. Reaching the cavity near the central post may require a different tool direction from machining the base.

The photos do not establish dimensions, minimum wall thickness, alloy temper, or measured accuracy. Nor do they establish whether the central feature is a locating post, mounting feature, or something else. A drawing review should resolve those details before a manufacturing route is promised.

Translate geometry into acceptance requirements

Ask which surfaces locate the component during installation preparation and which merely provide clearance. If a mating part engages the ring, the drawing should define the relevant fit and orientation. If the mounting base establishes alignment, its relationship to the ring or post may matter more than an isolated diameter. Inspection becomes useful when it follows those relationships.

2. What Does One-Piece Five-Axis Machining Mean?

One-piece construction and single-setup machining answer different questions. One-piece describes the integral component rather than an assembly of separately joined elements. Single setup means specified operations are completed without releasing and relocating the workpiece. A five-axis machine can support either indexed cutting or simultaneous multi-axis movement, depending on access and surface requirements.

The owner describes this product as formed integrally through five-axis machining. That statement does not document the complete sequence, the number of clamping operations, or the method used to finish a holding interface. Photographs of the finished component cannot establish those details. A useful process review identifies which critical features are completed together and how any remaining surfaces are handled.

Indexed machining versus simultaneous motion

Indexed machining positions the workpiece at a selected angle before cutting. Simultaneous machining changes the tool orientation during a cutting move. A housing with several accessible faces may benefit from indexed access; a restricted transition may require continuous orientation changes. The correct choice follows geometry and collision clearance, rather than a requirement to use all five axes continuously.

Compared with several separate three-axis setups, multi-face access can reduce relocation steps for related features. It does not eliminate machine calibration, tool setting, fixture error, or part movement. For a broader process comparison, see our three-axis versus five-axis guide.

3. Why 2A12 Requires a Complete Material Specification

The owner identifies the material as 2A12 aviation aluminum. The alloy designation is important, but a purchase specification also needs the applicable material standard, temper, product form, and traceability requirements. “Aviation aluminum” alone does not establish aerospace certification or suitability for a particular service environment.

Supplier information from CHAL on 2A12 aluminum identifies it as an aluminum-copper alloy and lists multiple material conditions. That catalog is useful background; its sheet data is not a material certificate for the stock used in this housing. Mechanical properties and processing assumptions must match the actual ordered condition and product form.

For a machined component with substantial material removal, stock condition matters to process planning. Residual stresses in the starting material can redistribute as material is removed. The amount and direction of movement cannot be predicted from the alloy name or these photographs alone. The supplier needs the actual blank specification and a route suited to the geometry.

Do not substitute 2024, 6061, or 7075 solely because an overseas drawing uses a familiar designation. Any alternative requires engineering approval against the applicable specification, properties, finish and service requirements. For this product, retain 2A12 as the confirmed alloy and clarify its condition before buying stock.

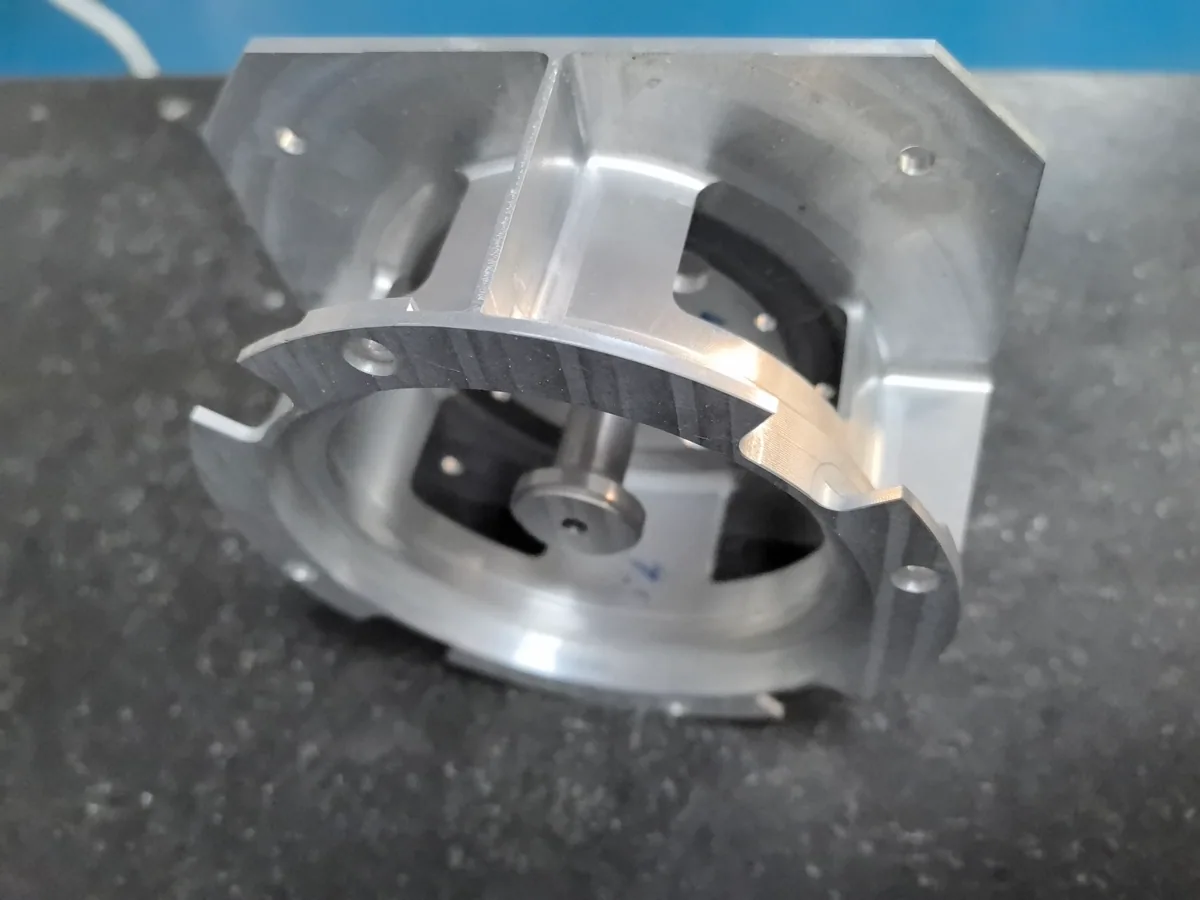

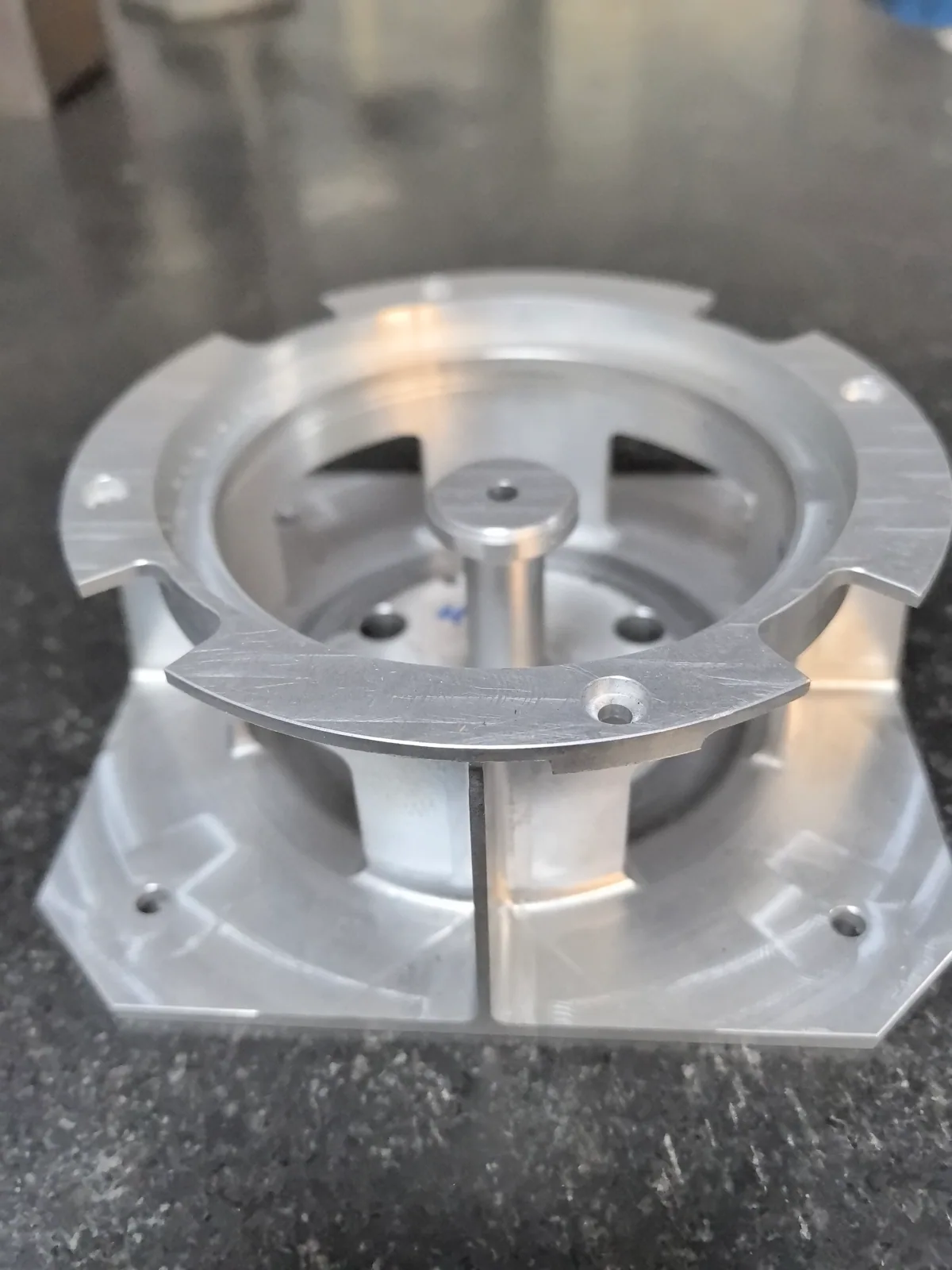

4. Tool Access Around the Ring, Windows and Central Post

The upper ring restricts access to some internal surfaces, while the central post occupies space that a tool or holder might otherwise use. An end mill that can reach a surface geometrically may still have insufficient clearance for its holder. Tilting the workpiece can improve access, but the full assembly must clear the ring, webs, fixture and machine throughout the move.

An access review should evaluate cutting length, neck clearance, holder diameter, tool projection and entry direction. A narrow window can create a difficult compromise: a small tool enters the opening, but a long projection reduces stiffness. Choosing an unnecessarily small internal corner radius can make that compromise worse.

Sandvik Coromant’s milling application guide discusses overhang, stability and vibration in extended-reach machining. The relevant lesson is to assess the complete tool assembly and cutting conditions together. It does not prove that a particular cutter or damped holder was used for this housing.

Check the route between cuts

Collision review must include approach, retract, indexing and linking moves, as well as the cutting path. A safe cutting position does not guarantee a safe transition to the next orientation. CAM verification should use representative stock, fixtures, tools and holders, followed by the shop’s controlled machine prove-out procedure.

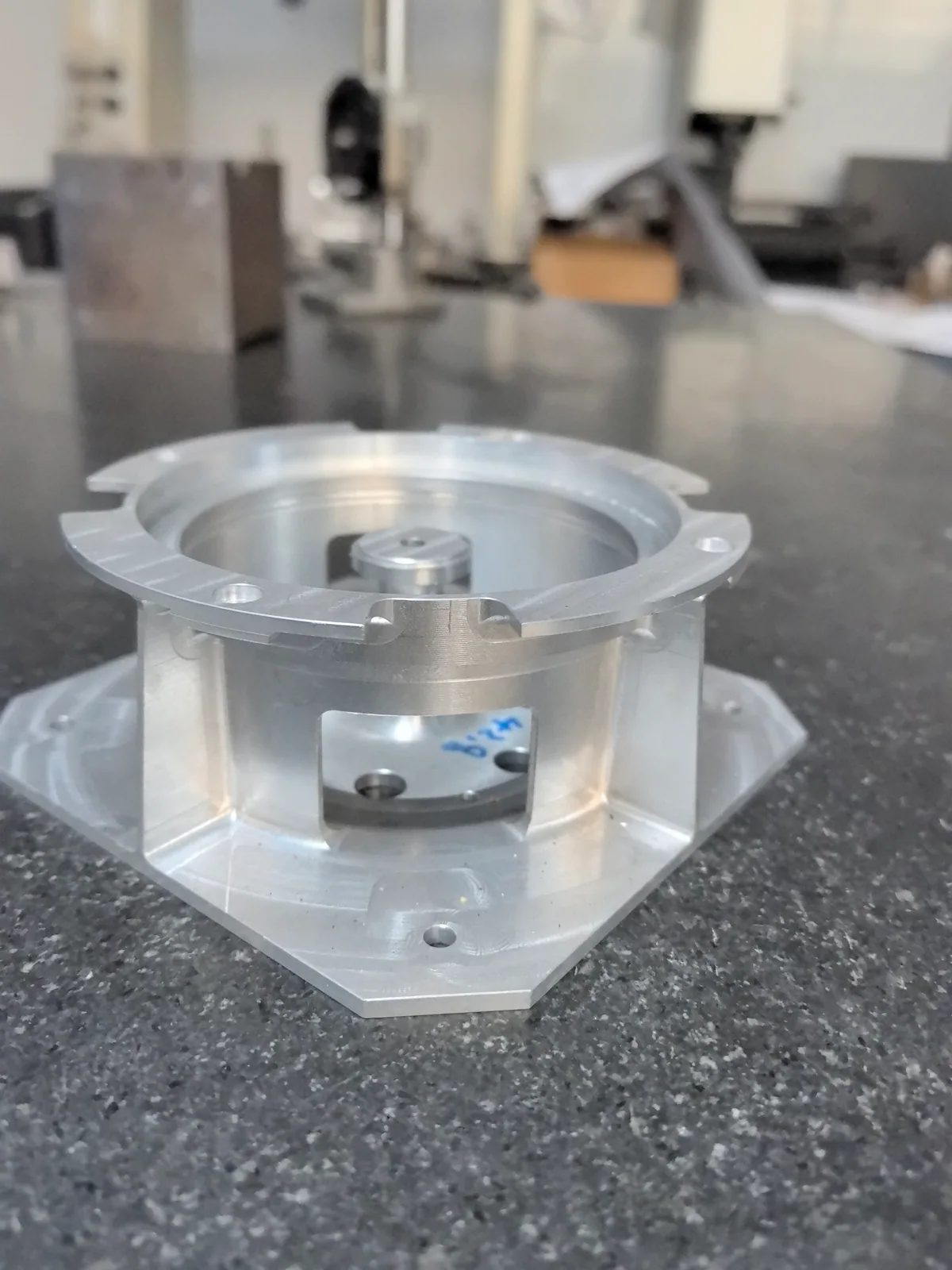

5. Maintain Support as the Windows Open

The side windows are a defining feature of the component. Before they are fully opened, surrounding material can help support the ring and webs. After opening, those sections become more compliant. A route that ignores this change may encounter chatter, deflection or geometric movement late in the job.

A process planner therefore considers when to remove bulk material, when to open windows, and when to finish the remaining sections. Possible measures include retaining appropriate stock during earlier operations and finishing sensitive features after major material removal. These are planning options, not a reconstruction of the undocumented route used here.

The fixture also has to support the changing part without masking movement. Clamping a flexible ring into position can produce an acceptable measurement while restrained and a different shape after release. Contact locations and clamp loads should suit the workpiece at that stage. The central post should not be assumed to be a suitable clamping feature simply because it is accessible.

Sandvik Coromant’s shoulder-milling guidance addresses thin deflecting walls and the importance of machining strategy. For this housing, CAD dimensions and practical trials are needed to determine which sections require special support.

Send Your Housing CAD Model for Review

Send the current CAD model, controlled drawing, 2A12 material condition, quantity and critical interface requirements. Ask for an access review covering the ring, side windows and central post, together with a proposed inspection approach. This gives a custom machining enquiry a practical technical starting point before price and delivery are agreed.

6. Control the Relationships That Matter in Assembly

The most important requirement may be a relationship between features, rather than the size of any single feature. Examples include the orientation of an upper mounting face to the base, the position of the central post, or the location of a hole pattern relative to a defined axis. These examples need confirmation from the actual assembly design.

Use a datum system that reflects how the part is located and constrained in service. Avoid selecting an easily accessible surface as a datum without considering its function and stability. Likewise, do not add tight concentricity, flatness or positional requirements simply because they sound precise. Each requirement should support fit, operation or interchangeability.

A buyer should ask how the supplier will measure the specified relationships after unclamping. CMM inspection may be appropriate where probe access and feature geometry permit; other features may need different methods. The measurement setup must not distort a flexible section into agreement with the drawing. Machine probing is useful for process control, but it is not automatically an independent final acceptance result.

For planning the acceptance package, our first-article inspection guide explains how drawing requirements can be connected to recorded evidence.

7. Separate Surface Finish, Deburring and Functional Testing

The photographs show visible machining marks. They do not establish a roughness value, coating condition, or acceptance result. A reflective surface is not evidence of dimensional accuracy. Specify roughness on the surfaces where it matters, along with the measurement method or applicable standard where necessary.

Window edges, flange interruptions, hole mouths and internal transitions deserve a deliberate deburring review. Access can be limited behind the ring or beside the post. An undefined instruction to “remove all sharp edges” may leave uncertainty about how much material can be removed from an interface. Define permitted edge breaks and protect functional corners.

If anodizing or another treatment is required, establish it before final machining allowances are agreed. Identify surfaces that must be masked and dimensions that apply after treatment. The alloy condition, environment and application should guide the finish specification. Our anodizing and tolerance guide covers questions to resolve with the finishing supplier.

Factory testing should also be defined precisely. Dimensional inspection, material verification and functional testing are separate activities. The supplied information does not establish pressure, electrical, vibration or load requirements for this component. Request such tests only where the application specifies them, with agreed procedures and acceptance criteria.

8. What Drives the Cost of This Housing?

Machining cost depends on more than the number of visible features. Restricted tool access, long tool reach, window geometry, fixture development and inspection effort can all affect the route. A one-piece design may avoid joining operations, while requiring more stock removal and careful handling during machining.

To reduce cost responsibly, review requirements that create work without improving function. Can an internal corner radius increase to accommodate a more stable tool? Does every surface need the same roughness? Are tight tolerances limited to mating and locating features? Can a minor nonfunctional detail improve access without compromising the product application?

Compare quotations against the same scope. One offer may include material certification, final treatment and a documented inspection report; another may cover machining only. Prototype pricing may include fixture and programming effort that is distributed differently in repeat orders. Ask suppliers to identify these assumptions rather than treating the lowest unit price as a complete comparison.

No credible unit price or delivery promise can be derived from these photographs. Dimensions, stock form, quantities, tolerances and acceptance requirements are still needed. The useful outcome of a technical review is a quotation with explicit assumptions and a clear route to resolving open questions.

9. Prepare a Buyer-Focused RFQ and Delivery Plan

Provide a revision-controlled model and drawing together, and identify which document governs when they differ. State quantities for the prototype and expected repeat orders separately. Include the material specification, finish, critical features, documentation and packaging needs. This prevents customer requirements from being scattered across untracked messages.

Before prototype approval, agree which dimensions and relationships will be reported. A photograph can confirm visible configuration but cannot replace the measurement record. Keep the approved drawing revision, material documents and inspection results linked to the correct part or batch. Record any agreed deviations explicitly.

Shipment inspection should check identity, quantity, cleanliness, edge condition and protection of the ring, post and base interfaces, alongside the agreed dimensional documentation. Packaging should restrain the component without loading a vulnerable flange or allowing parts to strike one another. Specify handling or corrosion-protection requirements appropriate to the transport and storage conditions.

For a structured enquiry, use our CNC RFQ preparation checklist. Keep private drawings and customer identifiers within the agreed enquiry channel rather than placing them in public blog comments or image captions.

FAQ

Can this type of housing be machined as one piece?

The owner confirms integral five-axis manufacture for the photographed 2A12 component. Feasibility for another design depends on access, stock, geometry and the holding plan. Review the actual model rather than assuming that every similar-looking housing can follow the same route.

Does five-axis machining mean one clamping operation?

No. Five-axis capability describes machine movement. The number of setups depends on the features, holding interfaces and access requirements. Ask which surfaces are completed together and how any remaining holding area is finished.

Is simultaneous five-axis cutting necessary for every feature?

No. Indexed cutting may suit accessible faces and holes. Simultaneous movement is useful where changing orientation is needed during the cut. The process should use the approach that provides safe access and adequate stability.

What makes the side windows difficult?

They reduce support around the ring and connecting webs while creating internal edges and restricted cutting directions. Their size, corner radii and remaining wall sections affect tooling, sequence and inspection. Photos alone cannot quantify that difficulty.

How can a buyer reduce machining cost?

Prioritize functional tolerances, allow practical corner radii, define required surface finishes and provide complete revision-controlled files. Discuss changes with the design authority. Removing a requirement without checking its function can create a more expensive assembly problem later.

What evidence should accompany the finished parts?

Agree the evidence before ordering: material traceability, inspection results tied to the drawing, finish documentation where applicable, and shipment checks. Functional test records are needed only when specified. Product photographs support identification and geometry review, not proof of compliance.

Conclusion

This 2A12 aluminum component illustrates why one-piece housing machining requires more than multi-axis access. The upper ring, open windows, webs, central post and base create a changing system of clearance, support and feature relationships. A sound review connects those features to the material condition, holding plan, cutting route and released-part inspection.

For buyers, the strongest enquiry defines how the component must fit and be accepted. That allows manufacturing decisions and quotation assumptions to be assessed against the same requirements, while avoiding unsupported claims about accuracy, cycle time or application performance.
