CNC Prototype to Production: A Buyer’s Guide to Repeat Orders

Introduction

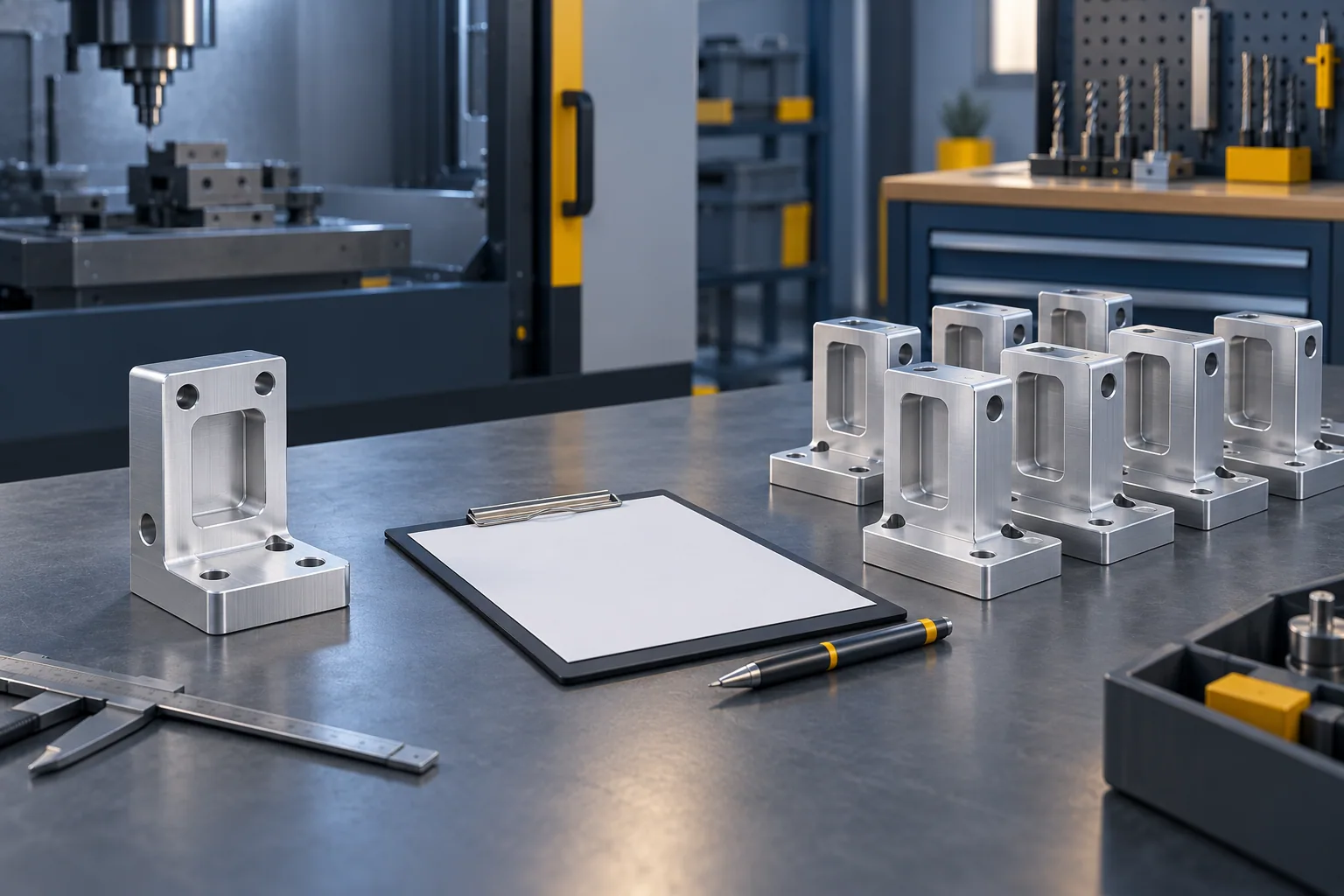

Moving a CNC part from prototype to production requires more than increasing the quantity on a purchase order. Before a repeat batch, confirm the released design, material condition, manufacturing route, inspection plan, finishing requirements and change controls. A prototype that fits demonstrates something valuable about that particular sample; it does not, by itself, establish consistency across future material lots, setups and deliveries.

For OEM engineers, technical buyers and quality teams, this transition is where a seemingly straightforward reorder can become difficult. The prototype may contain an approved deviation, a manually adjusted feature or a temporary finish. If those details remain in messages rather than controlled documents, the production supplier may reproduce the wrong requirement faithfully.

This guide explains what to review before releasing repeat CNC orders, how quantity affects cost, and what evidence supports batch acceptance. The examples are illustrative engineering scenarios, not customer case studies or reported YILIU production results. The accompanying images are AI-generated illustrations, not photographs of actual factory testing, inspection or shipments.

1. Decide What the Prototype Actually Proved

A prototype can answer different questions: whether the part fits, whether an assembly can be built, whether a material performs adequately, or whether the manufacturing approach is feasible. Record the purpose of the sample and the evidence obtained. “Sample approved” is ambiguous if engineering meant fit approval while purchasing understood full production approval.

Separate design validation from manufacturing acceptance. An assembly trial can reveal an interference that individual dimensions missed, while a dimensional report can show compliance without demonstrating service performance. Neither automatically replaces the other. Identify which activities remain necessary for the intended product application.

Capture temporary conditions

List any prototype concessions, substitutions, rework and omitted operations. Perhaps a sample was accepted without its final coating to allow an early fit check. The production drawing must still define the coating, masking and final dimensions. Approval of that sample should not silently authorize omission of the finish on the next order.

Photographs help identify the sample and its visible configuration. Keep them linked to its drawing revision and inspection records. A successful installation preparation exercise should also record the mating parts and conditions used; otherwise, a later fit comparison may involve a changed assembly.

2. Release One Consistent Technical Package

The repeat-order package should identify the governing CAD model, drawing revision and associated specifications. Clarify how conflicts between the model and drawing are resolved. Remove superseded files from the active release package while retaining the revision history in the appropriate controlled system.

Use the following checklist as a discussion aid. It is not a substitute for an organization’s required release procedure.

Tolerances should follow function. Copying unusually tight prototype requirements onto every surface can add avoidable manufacturing and inspection work. Conversely, loosening a requirement because one sample fitted can remove protection against future variation. Any change needs design-authority review and documented approval.

Our CNC RFQ preparation guide helps organize the initial files. At the production stage, add the approval history and repeat-order controls rather than treating the earlier enquiry as a complete release package.

3. Confirm Whether the Manufacturing Route Will Change

A prototype route may prioritize speed and flexibility. Repeat orders may justify dedicated fixtures, multiple parts per setup, revised stock preparation or a different finishing sequence. Such changes can be reasonable, but the approved sample does not automatically validate every alternative route.

Ask which changes could influence critical characteristics. Different clamping contacts can affect a flexible wall. A revised cutting sequence can change when material support is removed. An outside finishing supplier can introduce a separate processing and handling stage. Identify the characteristics that require renewed verification after each relevant change.

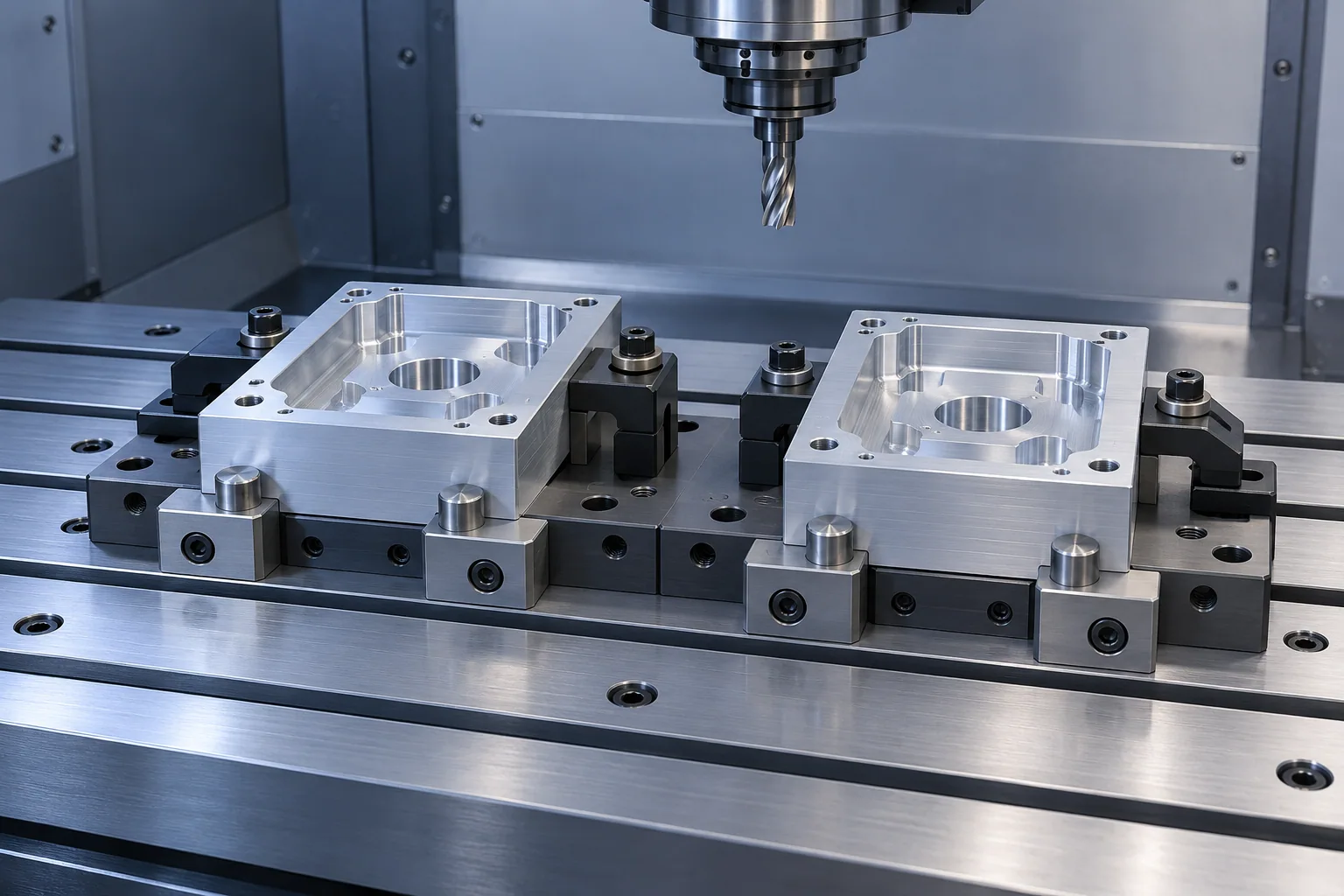

Fixture repeatability needs a defined setup

A repeatable fixture locates the part consistently and supports it appropriately during machining. The shop should have usable setup information, suitable contact surfaces and a method for checking the setup. Fixture ownership alone says little about its condition or the consistency of loading it.

For an illustrative thin-wall housing, a prototype held against broad temporary supports might be replaced by a faster production fixture. The buyer should ask how that change affects released-part geometry and inspection, rather than assuming that a shorter setup is either better or worse. Our thin-wall machining guide discusses that specific risk in more detail.

4. Understand What Quantity Changes in the Quote

Increasing quantity can distribute certain fixed activities over more parts. Programming, fixture development and initial setup may contribute less per unit when their cost is shared. Material, machining, finishing, inspection, handling and packaging still have recurring elements. Discounts therefore depend on the actual route and commercial scope.

A useful conceptual model is:

Quoted unit cost = allocated one-time work ÷ order quantity + recurring cost per part.

This is a way to ask better questions, not a universal supplier pricing formula. Capacity, material purchasing, yield assumptions, tooling, supplier margins and delivery requirements can also affect a quotation. There is no credible percentage reduction that applies to every prototype-to-production transition.

Protolabs’ CNC service information likewise identifies material, complexity, quantity and lead time as quotation factors. That supports checking the scope rather than extrapolating a prototype price. It does not establish YILIU’s prices, capacity, tolerances or delivery commitments.

Compare equivalent order scenarios

Ask for pricing at realistic quantities and release patterns. One order for a consolidated batch is different from a forecast with several small call-offs. Clarify whether setup, material certification, finish, inspection reports and freight are included. Separate nonrecurring charges from unit prices where the supplier’s quotation format permits.

Larger purchases also create inventory exposure. A lower unit price may be unattractive if a likely design change makes stock obsolete. Engineering stability, storage requirements and demand confidence belong in the buying decision alongside the machining quotation.

Send Your Repeat-Order Requirements for Review

Share the released model and drawing, prototype approval notes, material condition, expected batch quantities and inspection requirements. Identify any planned route or finish changes. Contact YILIU to discuss the information needed for a project-specific production quotation.

5. Keep Material and Finishing Requirements Consistent

Repeatability starts before cutting. Define the alloy and material condition using the applicable specification, together with the product form and documentation required for the application. A familiar trade description or a similar-looking certificate is not enough to authorize a substitution.

For example, a drawing specifying 2A12 aluminum still needs its required condition and applicable material requirements clarified. An alternative alloy should pass through the customer’s approval process. Do not assume that two grades are interchangeable because both are widely used for machined components.

Agree the traceability depth. Some projects require batch-level links between stock documents and finished parts; others need individual identification. Choose the arrangement according to customer requirements, risk and contractual obligations. Avoid requesting extensive records without explaining how they will be used.

Finishing needs equivalent attention. Define coating, color where relevant, masking, contact areas, edge condition and the stage at which dimensions are accepted. A prototype approved in the as-machined state may not reveal fit changes after treatment. Our anodizing tolerance guide covers questions to resolve before finalizing those requirements.

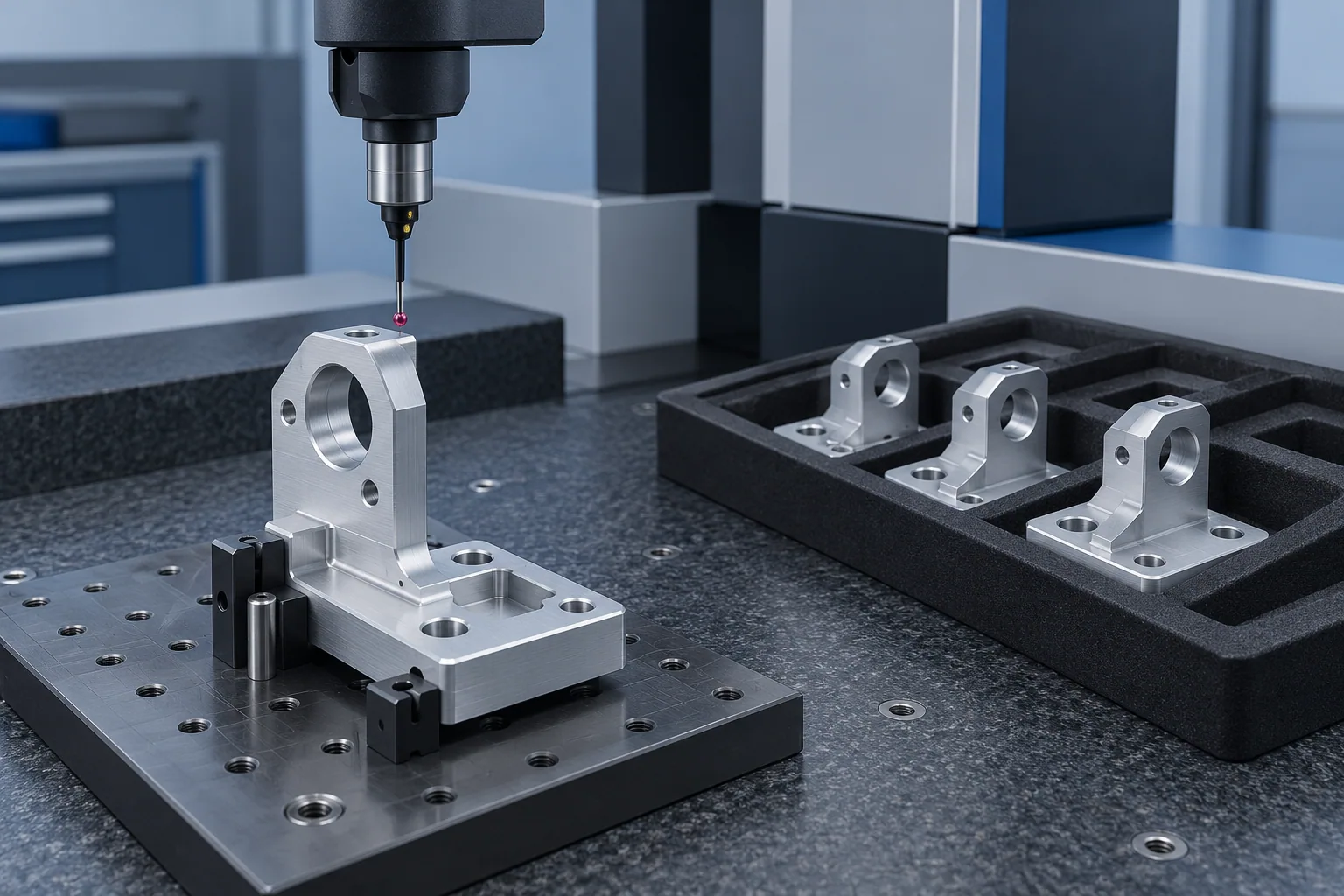

6. Build an Inspection Plan Beyond the First Sample

An inspection plan should identify what is checked, when it is checked, how it is measured and what happens when a result is unacceptable. Use the drawing’s functional characteristics and the risks introduced by the route. Avoid a generic checklist that says “quality checked” without naming the requirement.

Distinguish setup verification, in-process checks, final dimensional acceptance and functional testing. Factory testing is meaningful only when the specified activity and acceptance criteria are clear. A machined support bracket does not automatically need a pressure test, and a dimensional report does not establish fatigue performance.

First-article acceptance and batch acceptance differ

A first-article inspection can establish evidence about the initial manufactured item against a defined revision. Batch acceptance addresses the delivered population under the agreed plan. A passing first item is not a measurement of every subsequent piece. Tool wear, loading differences and other changes can occur later.

Discuss checks at appropriate stages, including after operations that can change the characteristic being accepted. A bore accepted before a finish that affects its size may require a separate final-stage decision. Keep results traceable to the correct batch, feature and drawing revision.

Our first-article inspection guide explains the report structure. The repeat-order discussion should extend that structure to ongoing verification and response rules, without assuming that more paperwork necessarily produces better control.

7. Use Process Data Carefully

A capability index is not a shortcut around a suitable measurement method or a stable process. NIST’s process capability guidance relates capability to the output of an in-control process compared with specification limits. Its guidance also cautions that estimates require adequate data. A few approved prototypes do not establish that evidence.

Ask which characteristic, data set, measurement method and production conditions support a reported index. Do not accept an unexplained number copied from a different part or machine. Equally, do not demand a generic capability threshold without identifying the customer requirement and statistical approach.

For small or intermittent orders, discuss practical risk-based verification with the supplier and quality team. A limited data set should be described honestly. Individual results, setup checks and traceable inspection may be useful even when a long-term capability claim is not justified.

Sampling and process control answer different questions

An acceptance sampling plan supports a decision about a lot under stated rules. Process monitoring looks for changes over time. Neither is a guarantee that every item conforms. Specify the plan, characteristics, acceptance rules and response to nonconformity; avoid writing “random inspection” as though it were a complete method.

8. Agree Change Control and Nonconformance Handling

Repeat orders can drift when small decisions accumulate without review. Examples include a changed material source, replacement fixture, revised program, alternate coating supplier or modification to an internal corner. Not every change has the same significance. Agree which changes require notification, approval or renewed verification.

Keep the approval route practical. Name the customer role that can authorize a deviation and identify the document or record that captures it. A commercial instruction to ship quickly should not be mistaken for engineering approval to change an interface.

If a nonconforming result is found, the response should identify affected work and prevent unintended release. Discuss containment, investigation, disposition and the evidence needed to resume supply. Rework should be assessed against its effect on the part, not treated as automatically harmless because the finished surface looks acceptable.

A temporary concession should have a defined scope. Record the affected revision, quantity or batch and any applicable conditions. The next repeat order should return to the released requirements unless a formal change has been approved. This prevents a one-time exception from becoming an undocumented production specification.

9. Plan Identification, Packaging and Shipment Release

Shipment inspection should connect physical parts with the documents that describe them. Check part identity, revision, quantity, finish condition and agreed records. If multiple revisions or material conditions are present, arrange clear segregation and identification to reduce mixing risk.

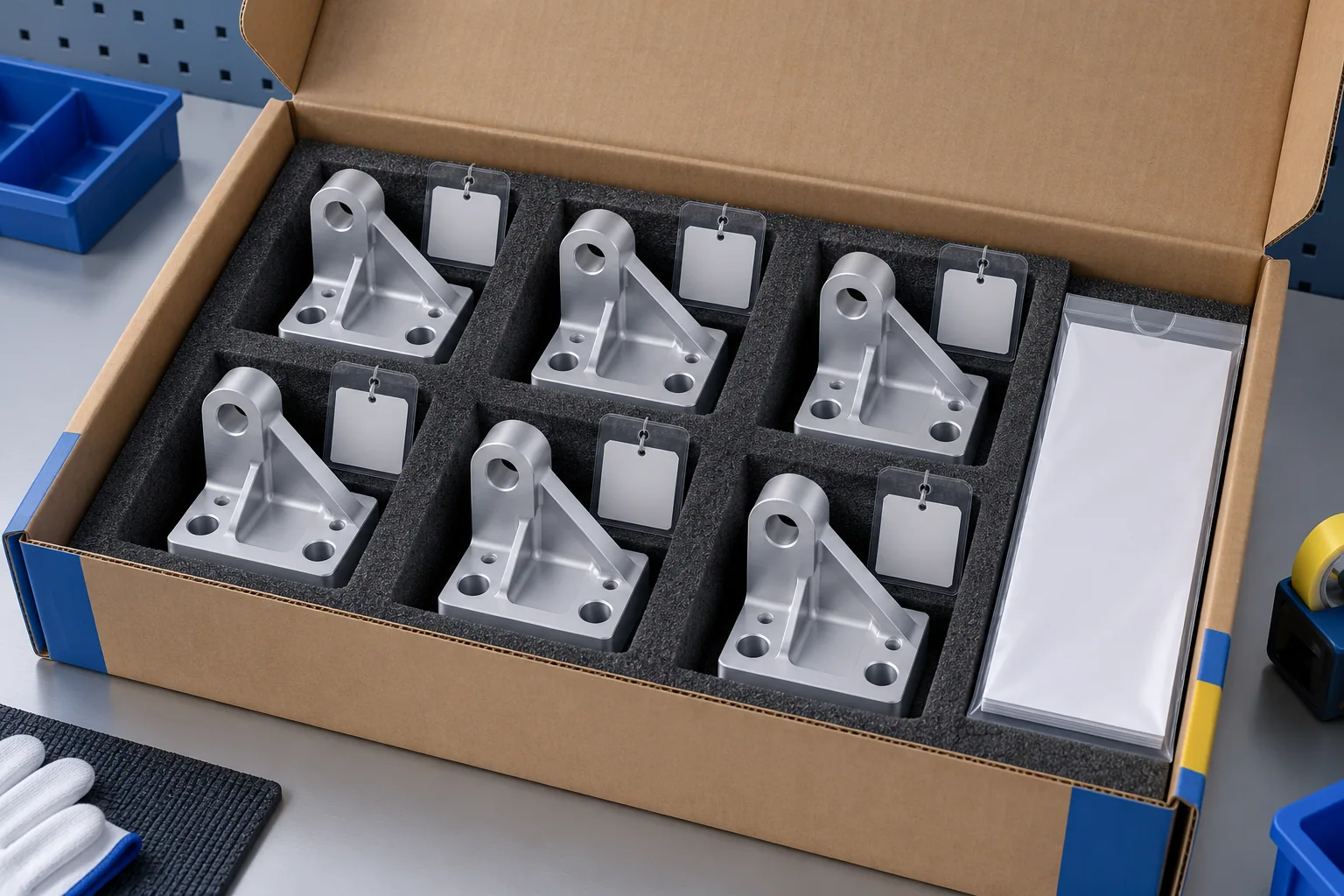

Packaging should protect the characteristics that matter. Thin edges may need support, cosmetic faces may require separation, and precision interfaces should not rub against adjacent parts. The appropriate packaging depends on part geometry, surface treatment, transport and storage conditions. Do not assume that the prototype’s temporary wrapping is suitable for a repeat batch.

Define the release documents before the goods are ready. Depending on the order, these might include material records, dimensional reports, finish documentation and an agreed conformity statement. Request only documents the supplier can legitimately issue and trace to the delivered work.

After receipt, record whether inspection and installation preparation found issues. Connect feedback to the relevant batch and revision. An orderly feedback loop helps distinguish a manufacturing deviation from a changed mating component or an incomplete drawing requirement, without assigning the cause prematurely.

FAQ

Does an approved CNC prototype authorize production automatically?

Only if the agreed approval explicitly covers production release. Record what the sample approval means, any remaining checks and any deviations. Fit approval, dimensional acceptance and authorization to manufacture a batch are separate decisions that should be clearly connected.

Will a larger CNC order always have a lower unit price?

No. Quantity may spread setup and development costs, but recurring work and delivery requirements still matter. Compare equivalent specifications, inspection scope and release patterns. Ask for actual quotations rather than applying an assumed discount to the sample price.

Can the supplier change fixtures for a repeat batch?

A revised fixture may be appropriate, subject to the agreed change rules. Review its effect on critical features and determine what verification is needed. Approval of the component design does not establish that every possible holding method produces equivalent results.

Is a first-article report enough for all repeat orders?

It provides evidence for the item and revision it covers. Continued supply needs an agreed inspection and release plan. Relevant changes or nonconformities may require renewed first-article work or other verification, depending on customer requirements.

What should buyers send for a production quotation?

Provide released CAD and drawings, material and finish specifications, quantities and release pattern, prototype findings, critical features, documentation and packaging requirements. Flag open questions. This allows quotation assumptions to be reviewed before they become order disagreements.

Should every CNC batch include a capability study?

Not automatically. Requirements depend on the characteristic, application, customer agreement and available data. A defensible study needs an appropriate method and relevant process evidence. Do not substitute a capability number for missing inspection or invent statistical confidence from a handful of samples.

Conclusion

The transition from CNC prototype to production is a controlled handoff between design evidence and repeatable supply. The useful question is not simply whether the sample passed, but whether the released requirements, route, inspection, changes and delivery arrangements support the next order.

Before committing to a batch, resolve temporary prototype conditions and quotation assumptions. Then agree how the supplier will identify, verify and release the work. This creates a clearer basis for cost comparisons and repeat orders while keeping acceptance tied to the actual application.
