2A12 Aluminum Cathode Bracket: Five-Axis Machining of Thin Walls

Introduction

A cathode bracket can look like a compact open enclosure, but its machining difficulty is not defined by its overall size alone. Thin angled walls, large openings, mounting holes on different faces, and local changes in section thickness create a part that can move under cutting and clamping loads.

The featured product is a cathode bracket made from 2A12 aluminum and machined using a five-axis process, as confirmed by the product owner. The supplied photographs show the actual parts in several orientations. The drawing adds important context: the geometry includes thin local regions, with a nominal 1 mm wall callout in one view, alongside separately defined features and thicknesses.

The direct answer: manufacturing this type of bracket requires the material condition, fixture support, removal sequence, tool access, and inspection condition to be planned together. Five-axis machining helps address multi-face geometry, but it does not automatically prevent a thin wall from deflecting or a released part from changing shape.

This article uses the actual bracket to explain what engineers and overseas buyers should review before quotation and production.

1. Read the Bracket as a Set of Related Features

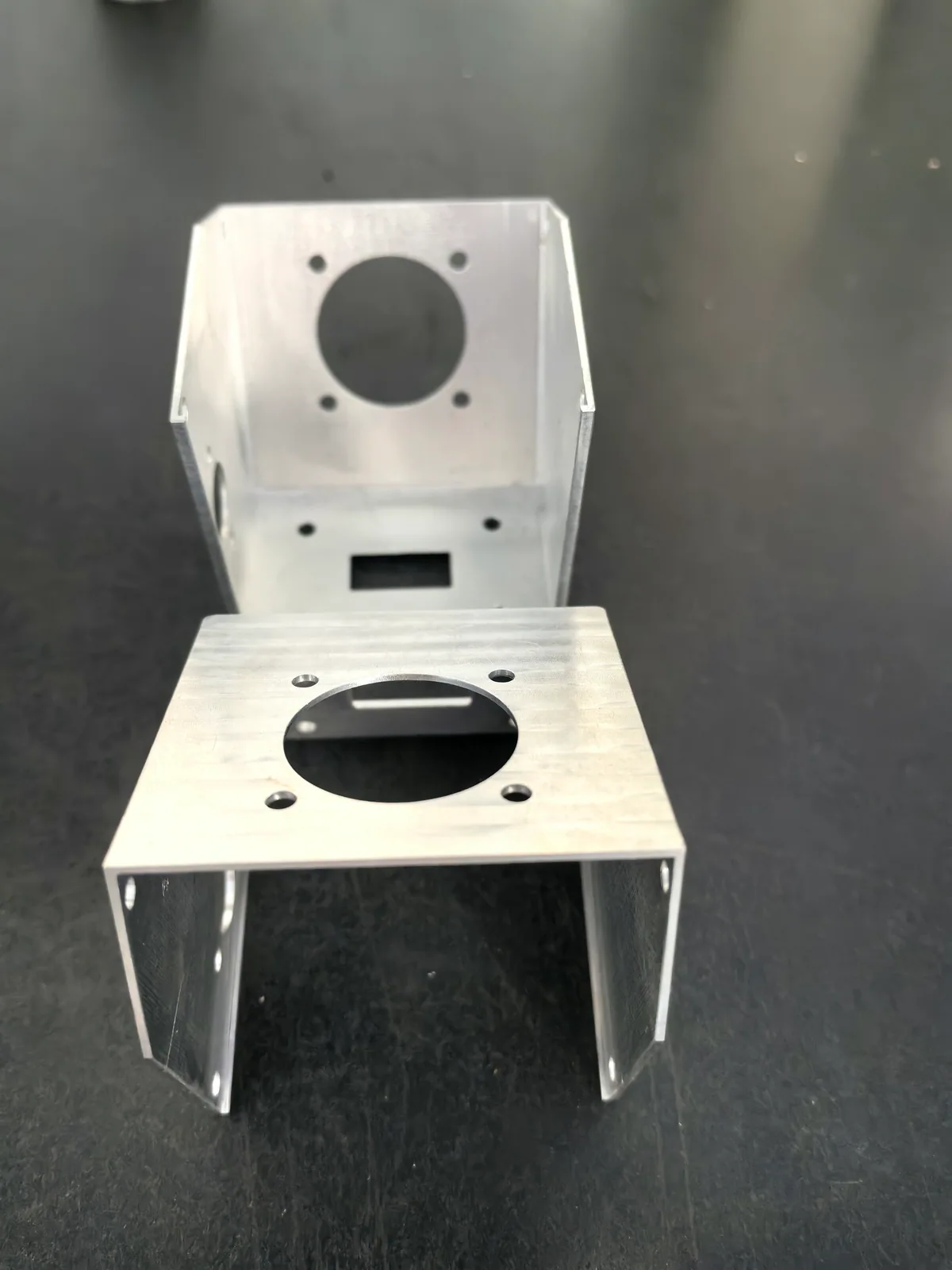

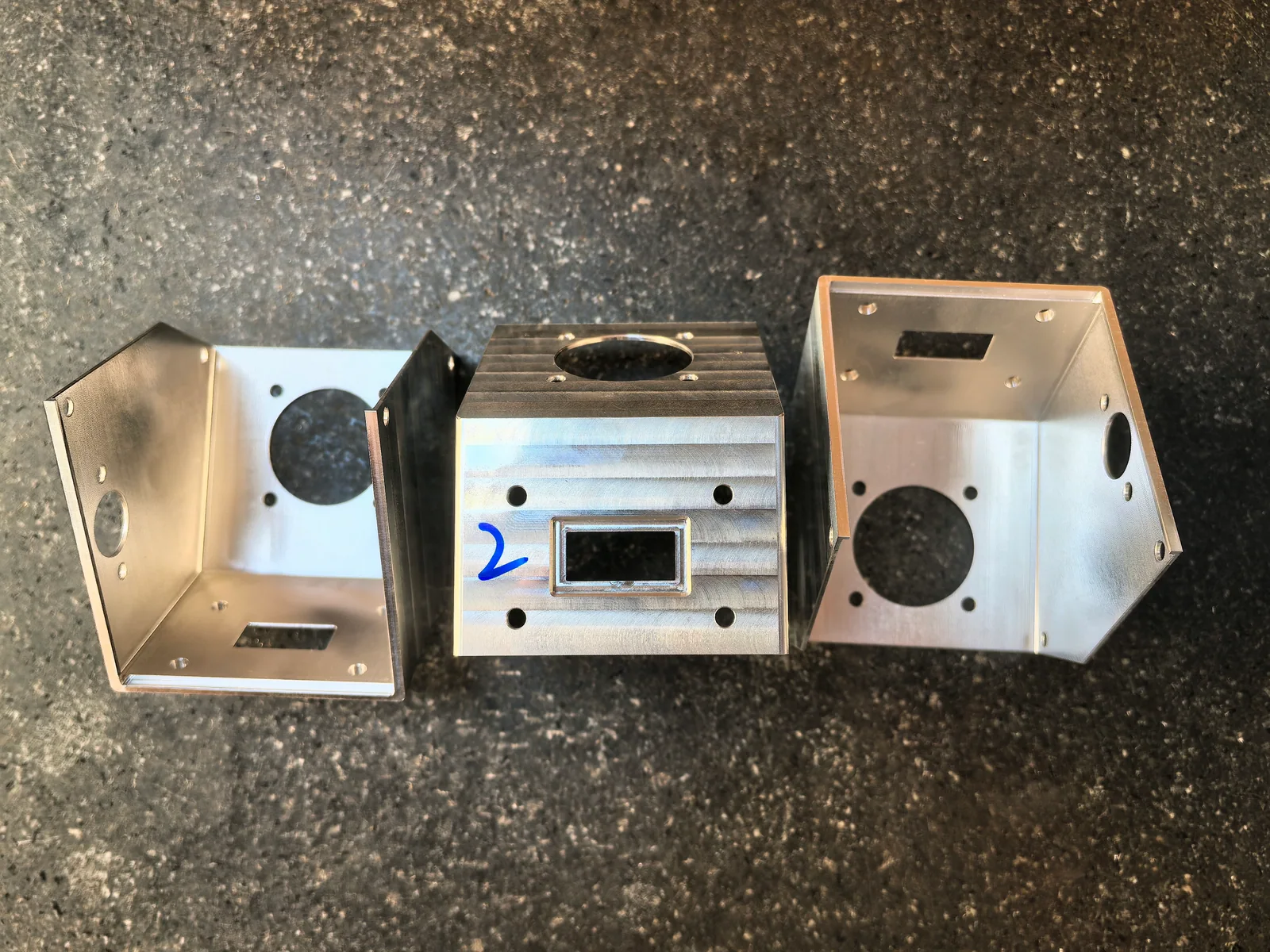

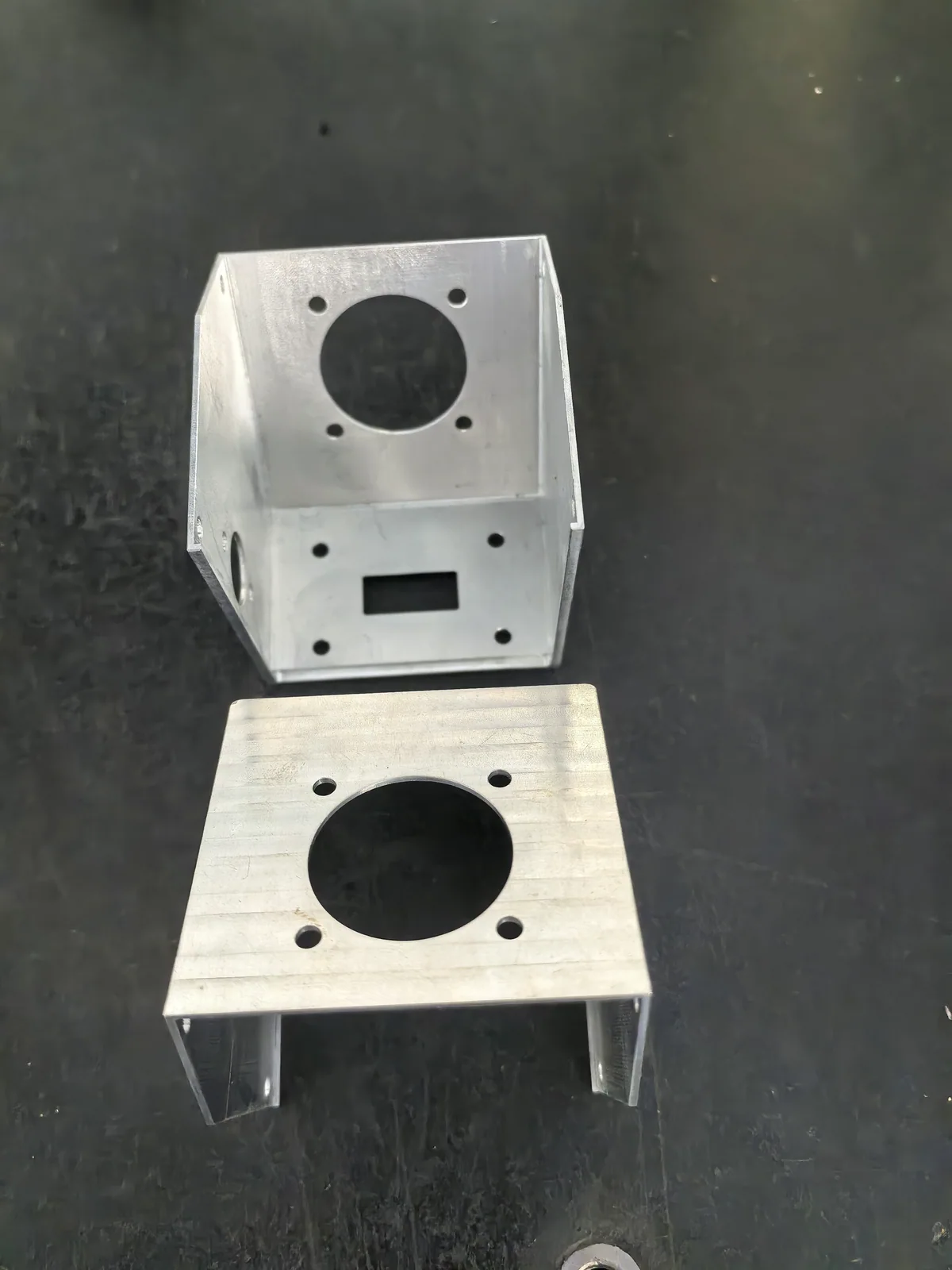

The photographs show open sections with circular openings, surrounding hole patterns, a rectangular window, and angled side regions. The drawing shows how these features relate across several views and a section. Each feature influences the machining plan around it.

Interpret local thickness correctly

The nominal 1 mm callout is a local drawing feature. It does not mean that every surface, edge, or supporting region has the same thickness. A process planner must read the sections and local details together rather than reducing the bracket to one minimum-thickness number.

The full drawing remains the production reference. Its complete dimension set and identifying marks are not reproduced here. A manufacturing quotation should use the controlled drawing and CAD model, including the applicable revision and any notes outside a cropped image.

This distinction matters because a thin wall beside a substantial local feature behaves differently from an isolated uniform plate. The order in which surrounding stock disappears can change the support available at the next machining stage.

2. Specify 2A12 Beyond the Alloy Name

The material supplied for this product is identified as 2A12 aluminum. That designation should be preserved in the RFQ rather than silently replaced with a more familiar overseas alloy number.

CHAL’s 2A12 material information identifies the alloy as part of the aluminum-copper family and lists multiple supply conditions. Its catalog is useful background, but it is not a material certificate for the brackets shown here. The drawing, order specification, and material documentation must establish the actual delivered grade and condition.

Confirm the condition and stock form

Ask for the required temper or condition, stock form, applicable material specification, and traceability requirements. These inputs affect what the supplier is being asked to manufacture and verify. The product owner has not supplied a temper or material-test certificate for this article, so no such condition is assigned to the featured parts.

Descriptions such as “aviation aluminum” communicate a broad material context. They do not independently define a procurement specification, an approved substitution, or a particular finished-part property. If an alternative grade is proposed, have the design owner assess and approve it against the actual application.

Avoid selecting stock solely by nominal strength. For a thin-wall machining review, the supplied condition and the geometry also belong in the discussion of dimensional stability. Do not add an unspecified heat treatment or stress-relief operation simply because another aluminum project used one.

3. Distinguish Cutting Deflection from Released-Part Movement

Several mechanisms can produce an apparent shape problem. They should not be treated as one interchangeable cause.

A wall can move elastically while the tool is cutting. A clamp can temporarily deform the bracket. Material removal can redistribute existing stress, and the machining process can introduce additional effects. Thermal conditions can also influence the observed geometry.

Diagnose the condition being observed

If a bracket appears correct in its fixture but changes after release, the review should include the holding condition and machining sequence. If only a local surface is affected, tool engagement, wall support, or another local factor may be relevant. Neither observation alone establishes the root cause.

Original research on machining strategies, residual stress, and thin-wall deformation examines 2024 T351 and 7050 T7451 aluminum specimens. It supports treating machining strategy and post-release geometry as related engineering questions. Its experimental results should not be presented as test results for this 2A12 bracket or copied directly into its process specification.

For the featured product, deformation susceptibility is the manufacturing difficulty identified by the owner. No measured distortion value, before-and-after comparison, or verified improvement percentage has been provided. A useful process review therefore focuses on the risks to address and the evidence required for acceptance.

4. Design Support Around the Changing Geometry

The open bracket has less support than a solid blank, particularly around its larger openings. Workholding should therefore be considered throughout the removal sequence, not selected once and assumed suitable for every stage.

Follow the clamping load path

Review where each holding force enters the component and where it is reacted by the fixture. A thin unsupported region may move even when the fixture itself is rigid. A local contact can also mark a surface that the drawing requires to remain suitable for assembly.

Discuss whether available thicker regions can provide useful support and how the fixture permits the required tool approaches. The correct arrangement depends on the blank, setup sequence, and finished geometry. It cannot be established by marking an arbitrary clamp position on a product photograph.

The phrase “clamp lightly” is not a complete process instruction. Retention, contact locations, loading sequence, and repeatability need a method appropriate to the operation. Reducing force until the workpiece is insecure is not a solution to distortion.

Retain useful material until it is no longer needed

A staged route may leave support or finishing allowance while nearby regions are machined, then remove it through an agreed later operation. The supplier should explain how this sequence preserves access and datum relationships without creating a new difficulty at release.

Sandvik Coromant’s thin-wall shoulder-milling guidance relates strategy to wall dimensions and the stability of both the tool and the wall. The relevant principle is to consider support and geometry together. Its example methods and cutting data are not a ready-made recipe for the bracket shown here.

Send Your Cathode Bracket Drawing for Review

Provide the released model and drawing with the 2A12 material condition, quantity, finish, critical dimensions, and required inspection records. Mark the functional interfaces and the thin regions that need particular attention.

If the receiving inspection uses a defined support or restraint condition, include it before quotation. Clarify who approves any proposed change to geometry, stock, machining route, or inspection method. The CNC RFQ checklist helps keep these inputs connected to one controlled revision.

This information lets the quotation address the complete delivered part instead of treating thin-wall support and final inspection as unpriced assumptions.

5. Use Five-Axis Access to Support the Feature Relationships

The cathode bracket includes features on different faces and angled regions. Additional tool orientations can help reach these surfaces and position the component for suitable cutting approaches. The benefit must be assessed against the actual geometry and required relationships.

Axis count does not define the whole route

Five-axis machining can include indexed positioning as well as coordinated movement. It does not imply that every feature is machined simultaneously, that the part is completed in one setup, or that no further operation is needed.

Ask how the supplier establishes and carries the important references between stages. A mounting hole pattern may be acceptable on one face while its relationship to another interface still needs verification. The datum plan should address that relationship explicitly.

Review the complete tool and holder envelope around the open walls. Access should include approach and withdrawal, not only the final cutting position. A short, stable cutting arrangement may be desirable where the geometry allows it, but the actual tooling must be selected for the component and operation.

The three-axis versus five-axis guide explains the broader process distinction. For this part, the important purchasing question is how the proposed five-axis route supports thin-wall stability and the drawing’s multi-face relationships.

6. Inspect the Released Bracket and Its Functional Relationships

An inspection result describes the part as presented to the instrument. If a support or clamp changes a flexible wall, a repeatable measurement can still describe a condition different from the one required by the drawing.

Define how the bracket is supported

Agree on the measurement orientation, support areas, permitted restraint, datum establishment, and inspection stage. A released-state check still requires a physical support arrangement; it does not mean the component is unaffected by gravity or contact forces.

If acceptance is intended under an assembly-like restraint, define that condition separately. Do not use an unspecified fixture force to pull a wall into a favorable shape. Where both released and restrained geometry matter, record distinct checks.

The owner-supplied photographs make the geometry understandable; they are not dimensional inspection reports. Visible tool marks also do not establish a numerical surface-roughness result.

Use the first-article inspection guide to organize characteristic numbers and evidence. Where a thin region is difficult to measure directly, demonstrate a suitable method before routine production rather than waiting for a disagreement at receiving.

7. Connect Edge Treatment and Finish to the Bracket’s Role

Thin edges, opening boundaries, and local corners need a defined delivered condition. Deburring should remove unwanted material without permitting uncontrolled rounding, loss of a narrow land, or changes to a specified opening.

The CNC deburring guide distinguishes general edge treatment from a defined chamfer or radius. Apply that distinction to the local features of the cathode bracket instead of polishing every edge to an operator’s preferred appearance.

Let the application define surface treatment

The product name alone does not establish which surfaces carry current, provide electrical isolation, locate another component, or require protection. The design owner should identify those functions and the associated treatment or masking requirements where applicable.

Do not select a finish solely because it is common on aluminum parts. Coordinate any specified treatment with fits, contact areas, appearance requirements, and final inspection. A pre-treatment inspection does not automatically settle acceptance of the delivered component.

Where factory testing is required for a function beyond geometry, define the configuration, method, and acceptance basis separately. A successful dimensional check cannot substitute for a specified electrical or other functional test, and no such test result is claimed for the photographed parts.

8. Make Prototype Approval Useful for Batch Production

A first article can establish that a proposed route produces an acceptable example under the agreed inspection conditions. It does not automatically demonstrate that every future bracket will meet the same requirements without continued control.

Retain the approved drawing revision, material condition, setup information relevant to repeatability, and inspection method. Define which characteristics require routine records, what sampling agreement applies, and which process changes need review.

When comparing quotations, check the scope behind the price. One offer may include a dedicated support fixture, released-state inspection, and reporting, while another may assume general visual acceptance. These differences should be resolved before comparing the commercial totals.

Ask the supplier to identify any requirement it cannot meet as drawn. A clearly marked proposal for review is more useful than an unsupported promise of zero deformation. The design owner should approve a change before it becomes part of the production route.

9. Preserve Thin-Wall Geometry Through Delivery

The bracket’s open sides and exposed edges also matter after machining. A component can be affected by stacking, a concentrated packaging load, impact, or inappropriate handling even after it has passed inspection.

Select support and separation around suitable regions of the actual geometry. Protect functional faces and prevent neighboring parts from rubbing against thin walls. The packaging should preserve any agreed cleanliness and surface condition.

During shipment inspection, reconcile part number, revision, quantity, material evidence, inspection status, and approved deviations. Photographing the actual pack arrangement can be useful when required, but the product photos in this article are not shipment records.

Installation preparation should follow the released assembly procedure. If a bracket does not seat as expected, compare the actual part, mating geometry, support conditions, and records before changing it. Avoid treating forced assembly or unapproved straightening as evidence that the original geometry was acceptable.

FAQ

Why is this cathode bracket difficult to machine?

Its thin open walls, larger openings, angled regions, and multi-face feature relationships require coordinated support, access, and inspection. The owner specifically identifies deformation susceptibility as the main manufacturing difficulty.

Is the whole bracket 1 mm thick?

No. The supplied drawing includes a local nominal 1 mm wall callout and separately defined sections and features. The complete drawing must be used to establish each region’s requirements.

Does five-axis machining eliminate deformation?

No. It provides tool-positioning options but does not remove cutting-force deflection, clamping effects, thermal effects, or stress-related movement. These must be addressed through the part-specific process and acceptance plan.

Which temper of 2A12 is used?

The exact material condition has not been supplied for this article. It must be confirmed from the drawing, order specification, and material documentation rather than assigned from a generic catalog.

What should an overseas buyer include in the RFQ?

Include the model, controlled drawing, 2A12 grade and condition, quantity, finish, critical interfaces, tolerances, measurement support conditions, inspection records, and packaging requirements. Explain any functional checks needed beyond dimensional acceptance.

Conclusion

This 2A12 cathode bracket shows how a compact irregular component can demand careful thin-wall planning. Its open geometry and local features connect workholding, material removal, multi-face access, released-state inspection, and handling.

A useful manufacturing review treats those requirements as one coordinated plan. Five-axis machining supports access; the drawing, process controls, and inspection evidence establish what an acceptable delivered bracket must be.

Get a Quote for Your Cathode Bracket

Send YILIU your cathode bracket drawing, CAD model, 2A12 material requirements, quantity, finish, and acceptance criteria. Identify thin regions and critical functional relationships so the discussion can address machining feasibility, inspection, and delivery. Send your requirements to begin the review.
