Introduction
A closed impeller can look like a single circular component, yet its manufacturing requirements extend across repeated blade features, restricted spaces, mounting interfaces, and the relationship between opposite faces. For a UAV equipment buyer, the challenge is to order that geometry with an inspection and delivery plan that matches the actual application.
The product featured here is a closed-type impeller intended for a UAV application and produced using five-axis machining, as identified by the product owner. The workshop photograph and product video show its annular form, repeated blade regions, central opening, and views from different orientations.
Why use five-axis machining for a closed impeller? Additional tool orientations can help reach complex surfaces and approach features around the component while managing tool and holder clearance. Their value depends on the actual geometry. Five-axis capability does not remove every access restriction or, by itself, establish balance, operating performance, or readiness for use.
This article examines the manufacturing and procurement priorities behind this component, from the CAD review to inspection, balancing requirements, and protected delivery.
1. Start with the Actual Product Geometry

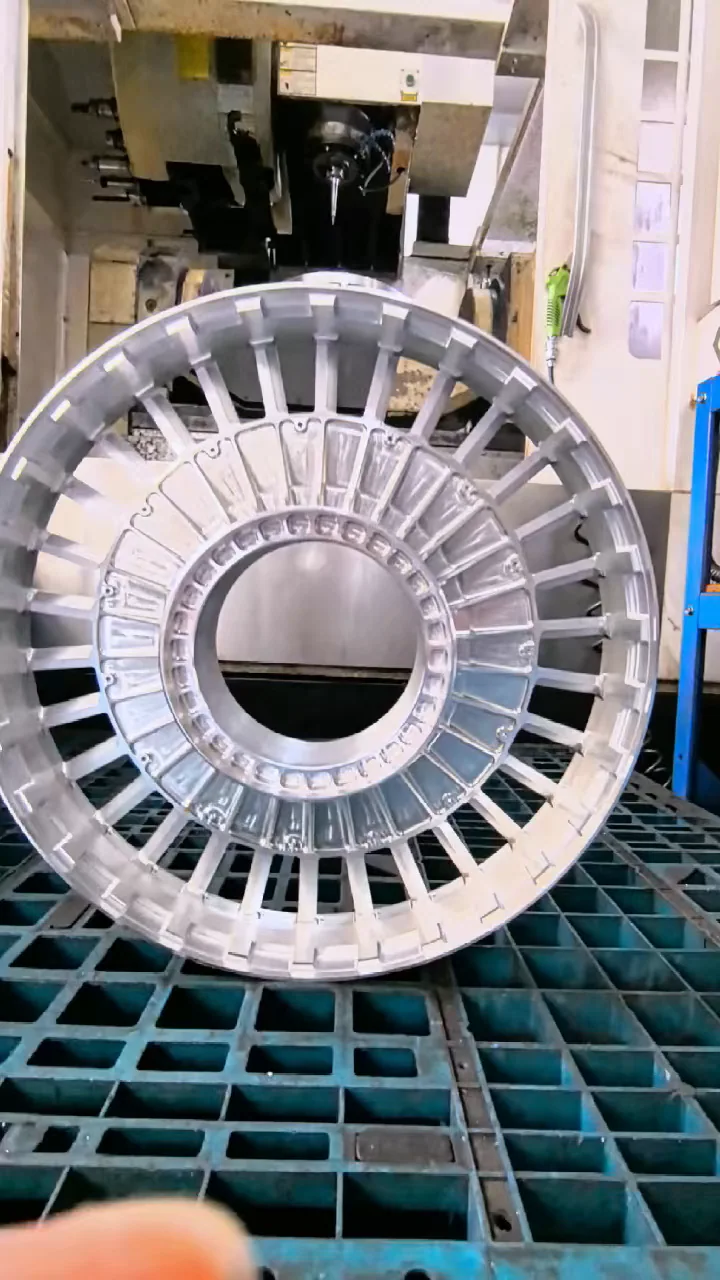

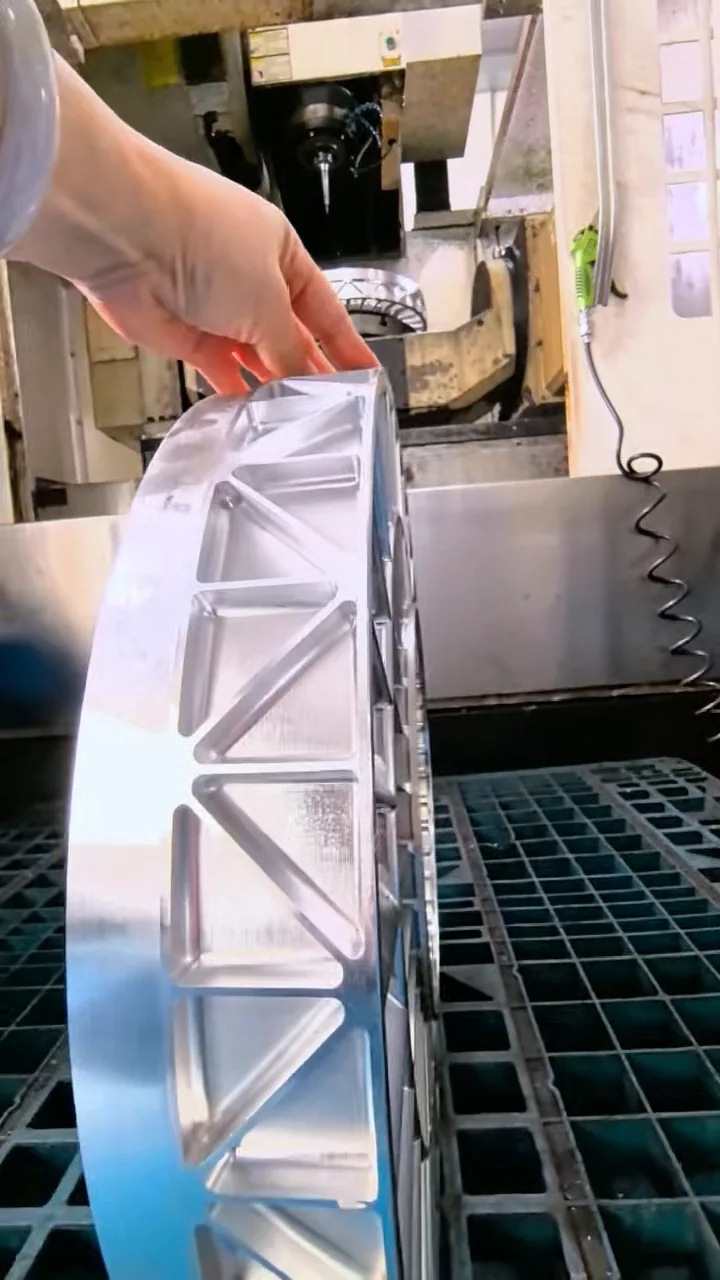

The accompanying images provide a useful starting point for a manufacturing conversation. They show a circular part with repeated circumferential features, slender sections, an outer ring, and machined surfaces. The video rotates the component so that buyers can examine more than one face rather than judging it from a single photograph.
These views help explain why the part deserves a geometry-specific process review. They do not replace the released model or drawing. A central fastening element or cover visible during a workshop setup may belong to the fixture rather than the delivered component; the final assembly definition must distinguish tooling from product geometry.
What the product description establishes
| Product information | Basis for the article |
|---|---|
| Product category | Closed-type impeller, identified by the product owner |
| Intended application | UAV equipment, identified by the product owner |
| Manufacturing approach | Five-axis machining, identified by the product owner |
| Visible features | Annular geometry, repeated blade regions, central opening, and machined surfaces |
| Material and operating specifications | To be established from the controlled drawing and project requirements |
The term “closed impeller” should be interpreted alongside the actual CAD assembly and the customer’s terminology. It should not lead a supplier to substitute a generic pump-impeller model or assume a particular flow direction. For this product, the released geometry remains the basis for quotation and acceptance.
2. Why Tool Orientation Matters
Impeller machining brings the cutting tool close to adjacent surfaces, slender features, and surrounding structure. The cutter tip may reach a target surface while its shank or holder cannot clear the neighboring geometry. A practical review therefore considers the complete tool assembly and machine movement.
Five-axis machining provides more orientation choices than a fixed tool axis. Depending on the part, those choices can support access to inclined surfaces, repeated features around the circumference, and transitions that would otherwise require a different setup or approach.
Sandvik Coromant’s guidance on closed pockets and angles uses blisk and impeller machining as an application example of restricted-angle milling. Its discussion supports the importance of geometry and tool approach, rather than a claim that every closed impeller can be completely machined by the same method.
Indexed and simultaneous machining serve different needs
A five-axis machine can position the part at a selected orientation or coordinate several axes during a cutting move. The process plan should identify which approach each feature requires. The presence of a five-axis machine does not mean that every operation uses simultaneous motion.
For technical buyers, the useful question is whether the proposed route can produce and verify the specified geometry. Ask about access limitations, setup transitions, and the surfaces that require special attention. See the three-axis versus five-axis machining guide for the broader process comparison.
3. Review Access Before Committing to the Manufacturing Route
Closed or shrouded features can restrict the available approach. A channel entrance may be narrower than a region deeper inside, while a nearby wall can limit tool tilt. These conditions should be reviewed in the model before promising a complete machining route.
Check the complete machining envelope
Review tool reach, holder clearance, fixture access, and the machine’s achievable orientations together. Include entry and withdrawal movements, not only the final cutting position. A toolpath that looks acceptable when shown without its holder may conceal a collision risk.
The process review should also establish whether the supplied design is intended as a single-piece component or includes an approved assembly route. Do not infer a welded cover, bonded element, casting, or additive process from the appearance of a finished part. Any alternative route requires an explicit technical agreement.
OPEN MIND’s published impeller-manufacturing case study describes the importance of manufacturing expertise, CAM, and machine tools for closed impellers. It is background evidence from another manufacturer, not a description of YILIU’s software, equipment, or customer results.
For the featured UAV impeller, the next useful input is the controlled CAD model and a drawing that identifies functional surfaces. That combination lets the manufacturer assess the actual part instead of estimating a route from photographs alone.
4. Plan the Sequence Around Slender Features
As material is removed, the component’s stiffness changes. A region supported during roughing may become more flexible when surrounding stock is gone. Slender blades and narrow connections need a process sequence that considers this changing condition.
Preserve support while approaching final geometry
The supplier should explain how roughing, intermediate operations, finishing allowances, and setup changes address the sensitive regions. The correct sequence is specific to the material, blank, geometry, and tolerance requirements; there is no universal cutting recipe for every impeller.
Workholding belongs in the same discussion. A convenient clamping position can still introduce distortion or obstruct the next operation. The fixture must retain the component securely while respecting the required geometry and protected surfaces.

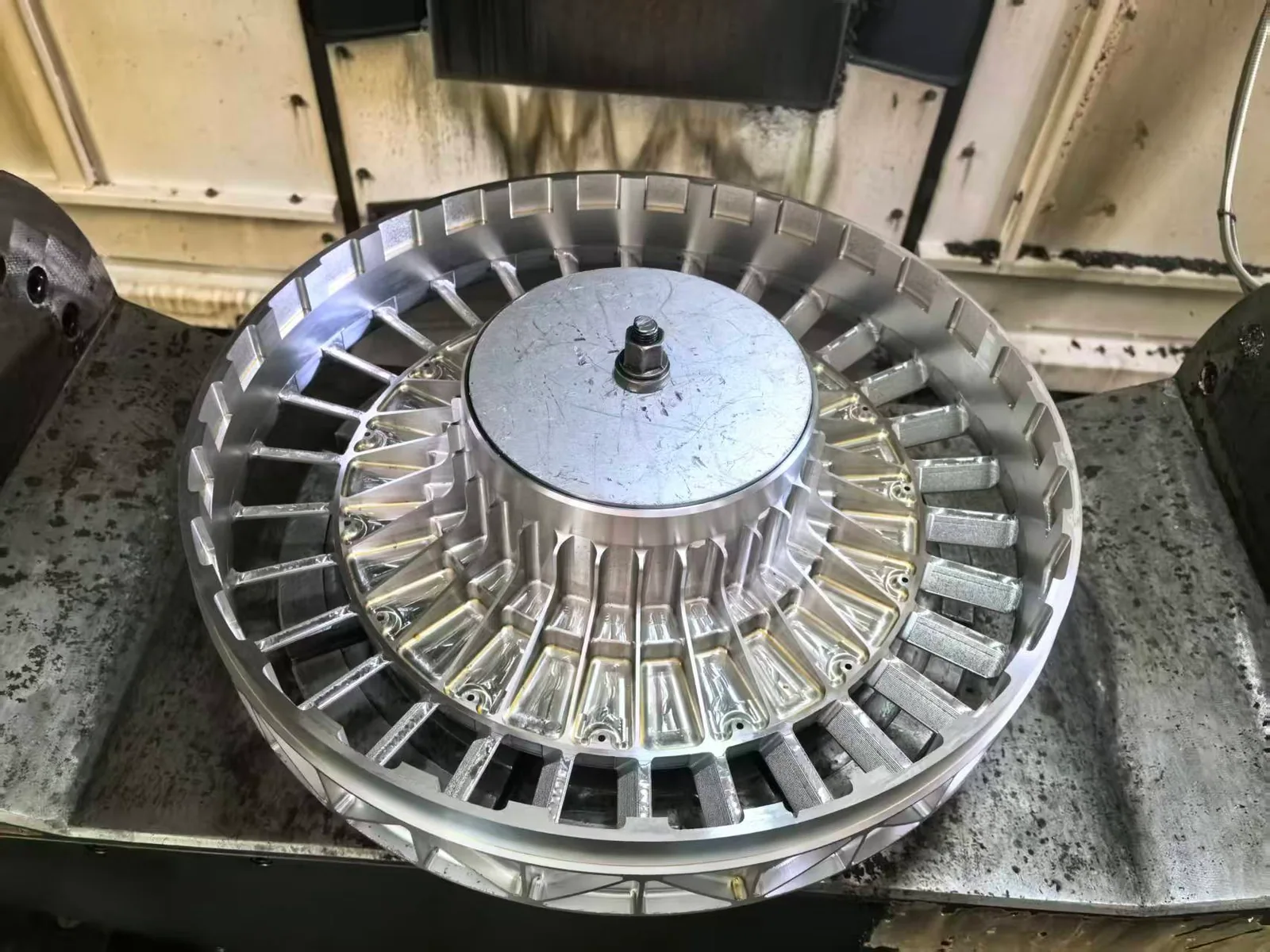

The workshop photograph shows the featured part in a machine setup. That is useful context for discussing workholding, but the image does not establish the clamp load, datum scheme, or released-state inspection result. Those details should come from the process and inspection records.
The thin-wall CNC machining guide explains why supported and released conditions can produce different observations. For an impeller, the inspection plan should address the condition required by the drawing rather than whichever fixture makes the part easiest to measure.
Discuss Your Closed-Impeller Requirements
Send the released CAD model and drawing together with material grade and condition, quantity, finish, mounting details, critical tolerances, and the intended equipment application. Identify the surfaces that control fit and any regions where tooling or inspection access may be restricted.
If balancing, additional factory testing, or special inspection records are required, include them in the initial RFQ. This allows the quotation to describe the complete delivery scope. Use the CNC RFQ checklist to keep the technical and commercial inputs aligned.
Send your CAD model, drawing, material condition, quantity, finish, mounting details, and inspection or balancing requirements.
Open the full RFQ form →5. Define Material and Surface Requirements Explicitly
A photograph cannot establish the exact material grade, condition, or certification. Select these from the application requirements and record them on the controlled documentation. Do not substitute an alloy merely because it has a similar appearance or is familiar to the shop.
Material selection can affect the machining approach, component mass, surface treatment options, and required evidence. If the design owner permits alternatives, compare them against the actual functional requirements and approve the selected option before manufacture.
Specify surfaces by their role
An impeller may contain surfaces with different priorities: a mounting face, a bore, blade regions, transitions, and exterior surfaces do not necessarily need identical texture requirements. Identify the controlled areas and the method used to evaluate them.

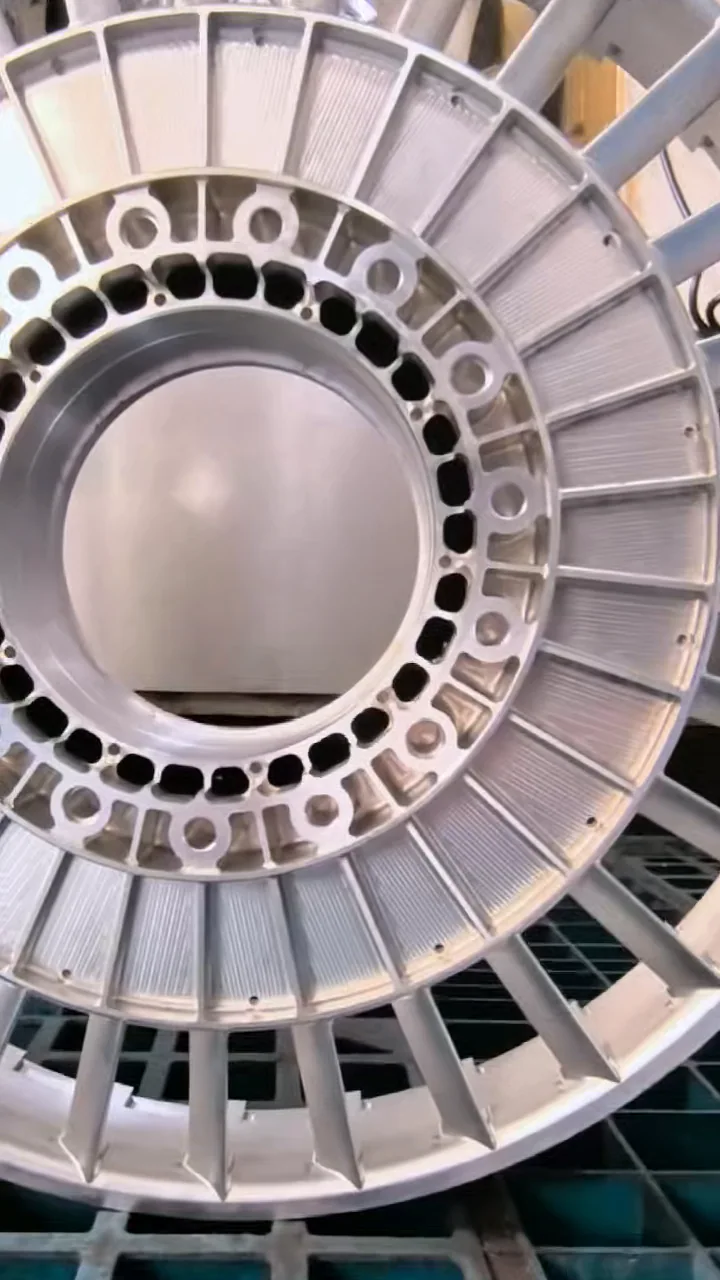

Visible machining marks are not a numerical roughness measurement. Likewise, a bright surface is not evidence of a particular coating or a defect-free subsurface condition. Define any required treatment and the final condition in which dimensions and surfaces will be accepted.
Edges require similar care. Deburring should remove unwanted material without allowing uncontrolled changes to the released blade geometry or narrow functional regions. The CNC deburring guide provides a framework for distinguishing general edge treatment from a specified chamfer or radius.
6. Build an Inspection Plan Around Functional Relationships
Repeated blade geometry is visually distinctive, but a procurement inspection must also address the interfaces that locate and retain the component. The drawing should identify the datum system and the characteristics that matter to the assembly.
| Characteristic group | What to define before production |
|---|---|
| Mounting interface | Relevant fits, locating surfaces, and acceptance criteria |
| Axial and radial relationships | Required runout or other geometric controls relative to specified datums |
| Blade and channel regions | Controlled profiles, dimensions, and inspection coverage |
| Slender features | Relevant thickness requirements and measurement conditions |
| Surfaces and edges | Local requirements, access, and permitted edge modification |
| Traceability | Part identification, revision, material evidence, and reporting scope |
Match the method to the characteristic
External access may allow direct measurement, while a restricted region may require another agreed approach. Consider the coverage, limitations, and suitability of the method for the specified feature. An instrument’s display resolution alone does not establish the uncertainty or completeness of an inspection.
Agree on how first-article results will be documented, how deviations will be resolved, and which checks continue during batch production. If a characteristic cannot be verified as proposed, address the gap before the production route is approved.
The first-article inspection guide can help organize drawing characteristics, results, and supporting records. The aim is a reviewable connection between the supplied impeller and its acceptance requirements, rather than a generic inspection sheet.
7. Treat Rotor Balancing as a Separate Requirement
Dimensional inspection and rotor balancing answer different questions. A component can match selected dimensions without having documented balance acceptance. Conversely, an acceptable balance result does not verify every blade surface or mounting feature.
ISO 21940-11:2016 addresses balancing procedures and tolerances for rotors with rigid behaviour. Its scope does not cover rotors with flexible behaviour. The responsible engineer must determine the applicable specification, edition and amendments, rotor behaviour, and acceptance basis for the actual system.
Define the configuration being accepted
Clarify whether balancing concerns the individual impeller or a defined assembly. Identify relevant mounting components, required records, and any permitted correction locations through the engineering specification. A balance statement without its configuration and acceptance criteria is difficult to assess.
No balance grade, operating speed, correction result, or test outcome has been supplied for the featured product. Accordingly, this article does not assign one. If balancing is part of the order, its availability, responsibilities, and documentation should be confirmed in the quotation.
Do not treat a product rotation video as a balance test. The supplied clip shows the component being turned for visual presentation; it does not document operation at its specified service condition.
8. Connect the Impeller to the UAV System Requirements
“Used in a UAV” identifies the application context but not the component’s exact operating role. The released system design must define what the impeller handles, how it is mounted, the relevant operating environment, and the required verification.
Machining quality supports dimensional conformity. Claims about airflow, efficiency, noise, endurance, vibration, or other equipment performance require appropriate engineering evidence. They cannot be established from the component’s appearance or the use of five-axis machining alone.
Where functional testing is required, agree on the test configuration, procedure, acceptance limits, and reporting responsibility. Keep dimensional inspection, balancing, and system validation distinguishable so that each record supports the conclusion it actually measures.
9. Protect the Finished Geometry Through Delivery
Repeated slender features and treated edges can be vulnerable during handling. Plan how the component will be supported, separated from other items, protected from impacts, and identified throughout delivery.
Avoid placing packaging loads on delicate regions simply because they are easy to contact. The support arrangement should suit the actual geometry and finish. Include any cleanliness requirements and protection of mounting interfaces in the packaging agreement.
During shipment inspection, reconcile the part number, revision, inspection status, material documentation, and any balancing or test records required by the order. Keep accepted deviations tied to the delivered component or batch.
Installation preparation should preserve that control. Inspect for transport damage, remove temporary protectors as instructed, and follow the approved mounting procedure. Unexpected fit or geometry concerns should be reviewed rather than corrected through unapproved polishing, straightening, or material removal.
FAQ
Why is five-axis machining relevant to this impeller?
Its value lies in the available tool orientations for complex surfaces and features around the component. The process still needs a geometry-specific review of access, tool and holder clearance, workholding, and inspection.
Can every closed impeller be machined as one piece?
That cannot be assumed. Feasibility depends on the complete geometry, available access, tooling, machine movement, material, and required tolerances. Review the released model before committing to a manufacturing route.
What material is used for the featured UAV impeller?
The exact material grade and condition have not been provided. They should be established from the project documentation. The surface appearance in the photograph is not sufficient evidence for an alloy designation.
Does five-axis machining guarantee rotor balance?
No. Balancing is a separate acceptance requirement with its own configuration, procedure, and criteria. Confirm its scope and records independently of dimensional inspection.
What should an overseas buyer send for a quotation?
Provide the model, controlled drawing, material condition, quantity, finish, mounting details, critical tolerances, and required inspection, balancing, testing, and packaging scope. Flag restricted-access features and any required documentation.
Conclusion
The featured closed-type UAV impeller illustrates why a complex circular part needs more than a machine-axis count. Tool access, changing stiffness, functional datums, surface requirements, inspection, balancing, and delivery all belong in the manufacturing conversation.
Five-axis machining can support a suitable route for the released geometry. A clear RFQ and an agreed acceptance plan make that route easier for engineers, buyers, and quality teams to review.
