Introduction

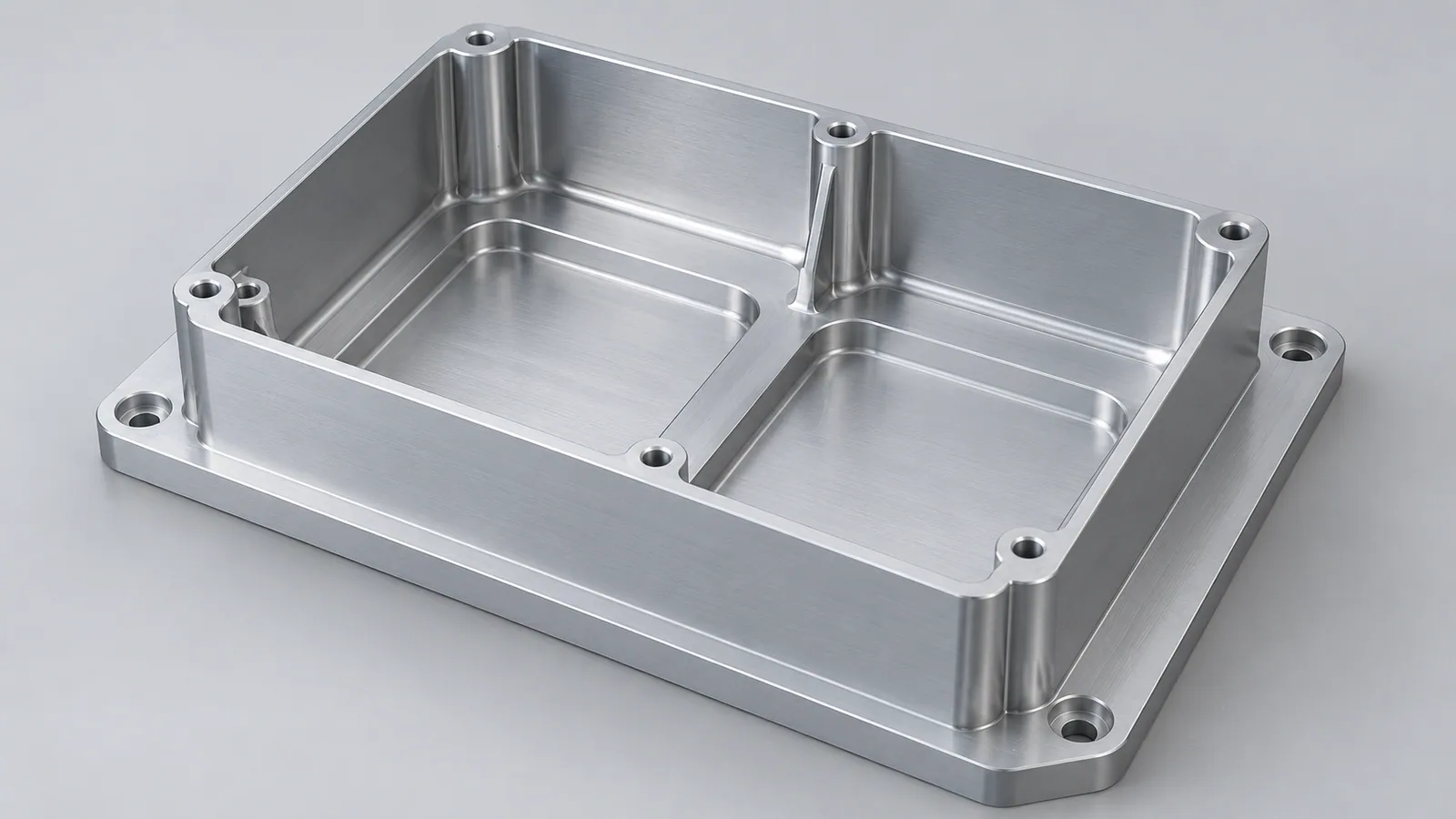

A lightweight housing can look correct while secured in a machining fixture, then change shape after release. A cover can appear flat when pressed onto a measurement table yet rock on its assembly face. These observations do not automatically identify a bad machine or an unsuitable material. They show why thin-wall procurement needs clearly defined conditions.
The direct answer: specify the required geometry together with the condition in which it must be verified. Identify the datums, support locations, permitted restraint, material condition, finishing state, and acceptance method. Review the manufacturing load path and release sequence before ordering. A precise machine cannot, by itself, prevent a flexible workpiece from moving.
This guide helps OEM engineers, technical buyers, and quality teams purchase thin-wall housings, frames, and covers. It focuses on the agreement between drawing, process, inspection, and delivery. Examples are planning scenarios rather than YILIU customer results. For broader cost decisions, start with the aluminum-part DFM guide.
1. Identify Which Kind of Movement Matters
Thin-wall problems can involve several mechanisms. Distinguishing them makes the supplier discussion more useful than a general request to “avoid warping.”
| Mechanism | What it can affect | Question for the review |
|---|---|---|
| Cutting-force deflection | Local wall thickness, form, and surface texture | How is the wall supported while material is removed? |
| Clamping deformation | Geometry held during machining or measurement | Does the clamp load bend the functional surface? |
| Stress redistribution | Shape after substantial material removal | What stock condition and machining sequence are proposed? |
| Thermal movement | Dimensions or shape during processing and inspection | How are temperature conditions controlled and recorded? |
| Handling damage | Delivered geometry and cosmetic condition | Where may the part be lifted, supported, and packaged? |
A workpiece can experience more than one mechanism. An extra finishing pass might address a local cutting issue while leaving a release-related shape change unresolved. Conversely, changing stock will not correct an inspection fixture that forcibly flattens the part.
The research paper In-Process Deformation Measurement of Thin-walled Workpieces distinguishes mechanical and thermal influences during finish milling. That distinction supports separating possible causes; it does not establish the cause of a particular buyer’s rejected batch or imply that YILIU uses the study’s measurement equipment.
2. Define Geometry and the Acceptance Condition
Wall thickness alone is an incomplete description of stiffness. Height, unsupported span, pocket layout, corner geometry, ribs, mounting flanges, and material all contribute. There is no single minimum wall thickness that guarantees every CNC part is feasible.
Protolabs’ CNC design discussion describes difficulties with tall thin walls, including deflection and surface problems. Its published service limits belong to its own offering. They should not become a universal design rule or an assumed YILIU capability.
Describe the functional requirement
Flatness, parallelism, profile, wall thickness, and hole position address different characteristics. A surface may have acceptable local thickness while its overall form is unacceptable. A flat face can still be incorrectly oriented relative to another feature. Use the drawing’s specified standards and have the responsible engineer resolve ambiguous controls.
Consider an illustrative cover that must seal against a housing. The design owner should identify the sealing area, permissible geometry, gasket relationship, and assembly constraints. The requirement should not be reduced to “make the whole cover flat” if a different functional relationship is intended.
Separate supported and restrained conditions
A minimally restrained inspection still requires an orientation and support arrangement; gravity does not disappear. A restrained inspection deliberately applies an agreed constraint. Neither description is complete without explaining how the part is positioned and loaded.
If acceptance is intended in an assembly-like condition, define that condition explicitly. Specify relevant contact areas, restraint sequence, and controlled loading method as appropriate. Do not let an inspector invent enough clamp force to obtain a favorable result. If both released and restrained geometry matter, document two distinct checks.
3. Review the Fixture Load Path
A useful workholding review follows the force from each clamp contact, through the part, into the support and fixture. Ask where that load passes through a thin section and where a broad contact or additional support might be needed.
Carr Lane’s fixture-design resources organize locating, clamping, and force calculations as related engineering topics. For a buyer, the practical implication is to request a coherent fixture concept for sensitive features rather than judging the setup solely by how tightly the component appears held.
Protect the functional surfaces

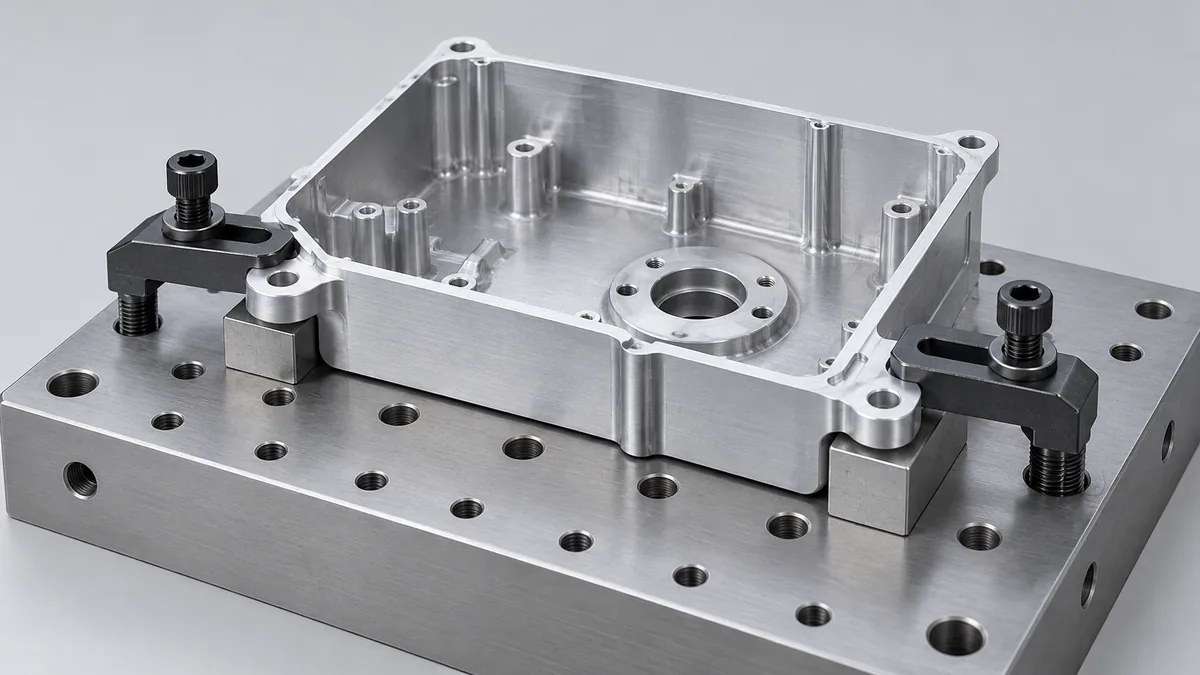

A thick mounting flange may offer a more suitable holding region than an unsupported upper wall. That is a candidate approach, not a rule for every housing. Tool access, datum strategy, material removal, and contact damage must also be considered. Clearly identify surfaces that cannot carry clamp marks.
Ask how repeatability is controlled between setups and batches. “Clamp lightly” is difficult to reproduce without a method. Depending on the chosen fixture, the process may need documented settings, contact locations, a loading sequence, or checks for proper seating.
Do not resolve distortion by loosening the workpiece until it is insecure. Adequate retention and acceptable deformation must be achieved together through a suitable fixture and cutting plan. Manufacturing personnel should validate the setup for the actual operation.
For example, a hypothetical housing with two mounting ears might be held through those ears while its thin walls remain untouched. The review should still examine whether the ears are supported underneath, whether the base is being pulled down, and what happens when the fixture is released. A favorable contact location alone does not prove a complete solution.
4. Discuss the Machining and Release Sequence
The part becomes less rigid as supporting material is removed. A process that works during roughing may behave differently when the remaining wall is close to final thickness.
Sandvik Coromant’s shoulder-milling guidance treats thin-wall strategy as dependent on wall height and thickness and considers both cutter and wall stability. It describes staged approaches that retain support during machining. These are useful process-review principles, not fixed cutting parameters to copy into a purchase order.
Ask for the sequence, not a guaranteed recipe
Discuss how roughing, intermediate operations, release, re-fixturing, and finishing address the critical geometry. Ask where sufficient stock remains for later operations and how datum relationships are maintained. Extra stages can have cost consequences, so compare proposals against the same requirements.
Material condition also belongs in this review. The original study Techniques for Thin-Walled Element Milling examines machining technique and semi-finished-product history for EN AW-2024 T351 aluminum. Its results should not be transferred directly to every alloy, temper, thickness, or housing geometry. The relevant buyer question is whether the proposed stock and route are suitable for the specific part.
Do not add heat treatment, straightening, or stress-relief operations informally. Such changes may affect material properties, dimensions, finish, and traceability. Any required operation and its acceptance basis should be agreed with the design owner. The 6061-versus-7075 guide can support the separate material-selection discussion.
Send Your Thin-Wall Part Requirements
Send a controlled model and drawing with the material grade and condition, quantity, finish, functional surfaces, and critical dimensions. Include the measurement condition instead of leaving it to be inferred from a CAD shape.
If the design must fit an existing assembly, supply the relevant mating geometry and installation constraints. Explain whether visible surface marks, temporary manufacturing features, or fixture contact on certain regions are acceptable. Identify the person or process responsible for approving deviations.
Use the CNC RFQ checklist to keep revision, quantity, inspection, and packaging information together. A supplier can then propose a reviewable route and raise limitations before quotation rather than discovering conflicting expectations at receiving.
Send your drawing, CAD model, material condition, quantity, finish, critical tolerances, and required measurement support conditions. Discuss machining, inspection, and delivery requirements before quotation.
Open the full RFQ form →5. Agree on a Measurement Procedure
An inspection instrument measures the component as presented to it. If the support fixture or contact force changes a flexible surface, a highly repeatable result may still describe the wrong condition.
Make the setup reproducible
Define the part orientation, support areas, datum establishment, restraint, inspection stage, and handling precautions. Record enough detail for the supplier and receiving team to reproduce the intended condition. If temperature stabilization matters to the requirement, agree on appropriate conditions rather than inventing a universal waiting period.
Identify where measurements are taken and how the reported characteristic is evaluated. A few points on a large surface may miss a local issue. Conversely, more points do not fix an incorrect setup or evaluation method. Choose coverage that addresses the functional geometry.

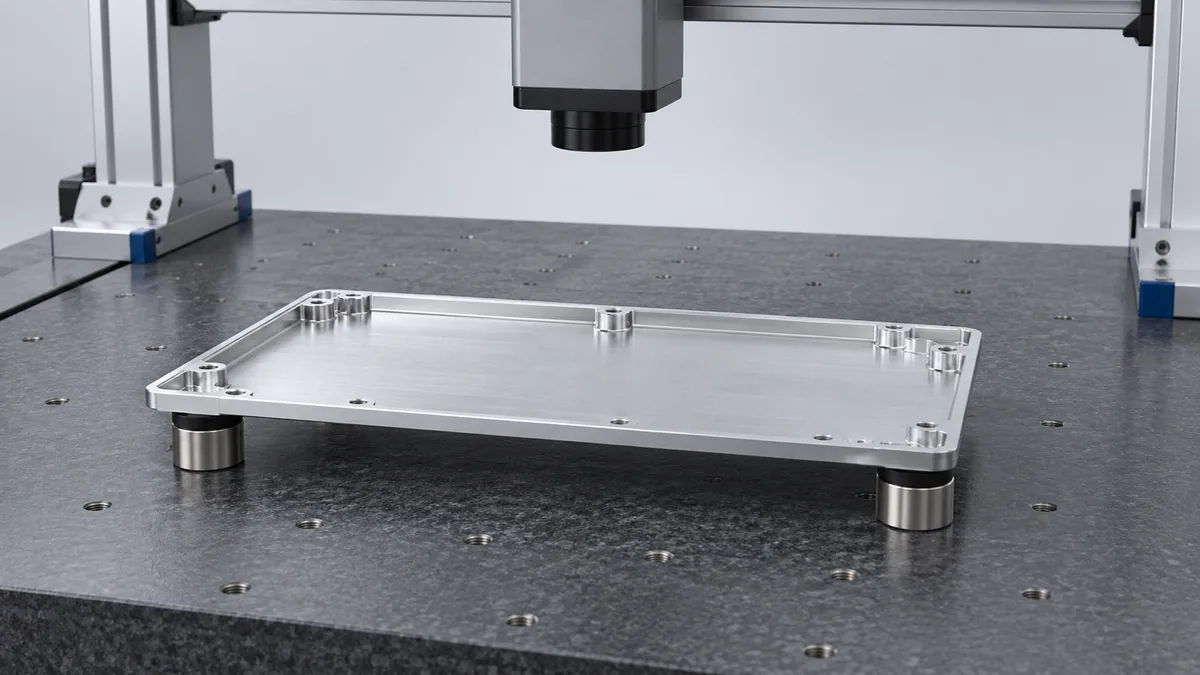

Contact measurement deserves attention on a flexible wall. Probe or indicator contact can contribute to movement; a non-contact method introduces its own access, surface, and validation considerations. Select and demonstrate a suitable method rather than declaring one instrument type automatically superior.
Handle disagreement with a shared check
If the supplier reports a pass and receiving reports a failure, first compare revision, finishing state, orientation, supports, restraint, measurement locations, and evaluation settings. Preserve the part identification and original records. Do not average incompatible results or force the part flat merely to reconcile reports.
For an important first article, agree on a common measurement demonstration and retain setup photographs or a controlled setup description where useful. These records provide evidence of how the check was performed; they do not replace the specified acceptance criteria. See the first-article inspection guide for organizing characteristics and results.
6. Carry the Requirements Through Finishing
Acceptance should refer to the delivered condition. Surface treatment, masking, additional handling, and subsequent machining can change which dimensions or surfaces need verification. A report on the unfinished component may not settle final acceptance.
For aluminum, coordinate the anodizing and tolerance plan with the thin-wall inspection plan. Define any protected contact surfaces, electrical requirements where applicable, and restrictions on post-treatment rework. Do not assume that flattening or machining after finishing is automatically permitted.
If the product application requires a separate assembly, sealing, or retention check, specify it independently. Factory testing should have an agreed configuration, procedure, and acceptance basis. A flatness measurement alone does not prove sealing, and a successful assembly check alone does not verify every drawing dimension.
Distinguish first-article approval from routine batch control. The production order should say which characteristics require records, what sampling agreement applies, how changes are reviewed, and how nonconforming material is segregated. Avoid presenting a single approved sample as proof of indefinite process capability.
7. Preserve Geometry Through Shipment and Installation
A thin wall that survives machining can still be bent by lifting, tight straps, stacked parts, or a poorly fitted package. Include handling and packaging in the review before the batch is ready for shipment.

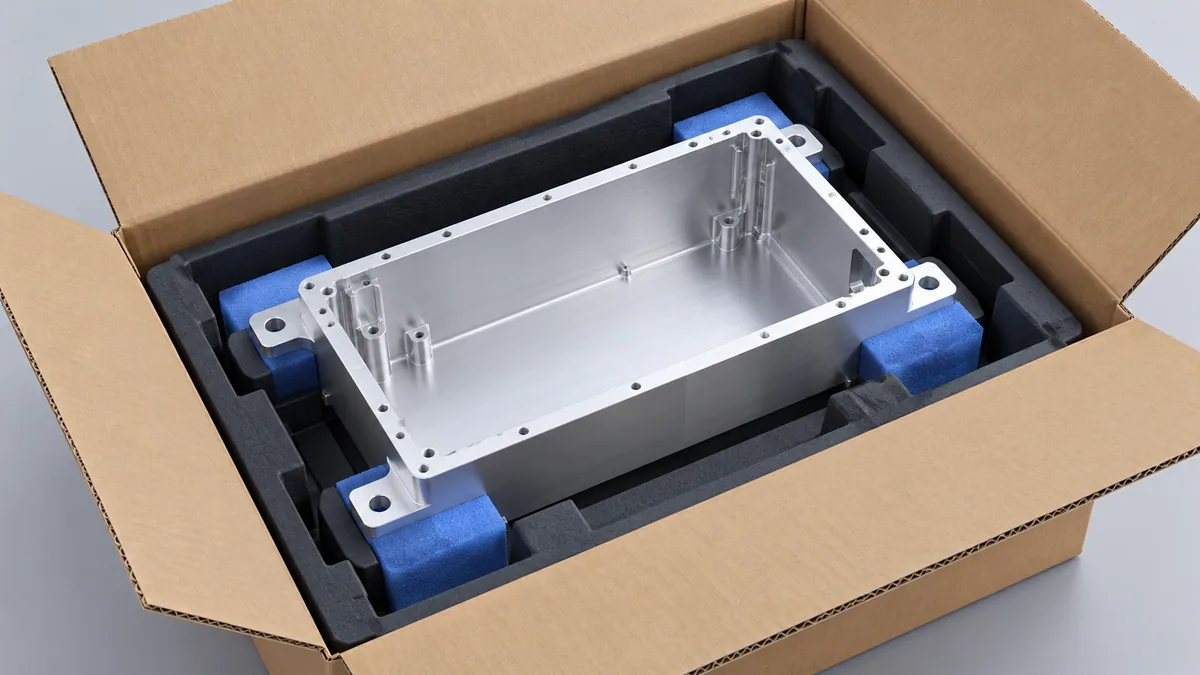

Support the component at suitable robust regions and protect functional surfaces from contact. Where the design includes a broad flange, a fitted tray may be considered, but the packaging must suit the actual weight, geometry, finish, and shipping route. Soft material is not automatically protective if it places pressure on a delicate wall.
During shipment inspection, verify part revision, quantity, traceability, inspection status, and the agreed pack arrangement. Consider photographs of the actual packed batch as handling evidence when required. The AI illustrations in this article explain concepts and cannot serve as shipment evidence.
Receiving and installation preparation should preserve the same care. Identify permitted lifting and support points, check for transport damage, and follow the released assembly procedure. Tightening fasteners to pull a visibly distorted cover into place can conceal a problem or introduce another one. Refer unexpected fit or shape conditions for review instead of applying unapproved straightening or extra torque.
8. Compare Quotes Against One Acceptance Plan
The lowest quoted machining price may exclude work that another proposal includes. Compare the scope before deciding which offer meets the requirement.
| Quote item | What to clarify |
|---|---|
| Material | Grade, condition, stock form, and required evidence |
| Fixture and setup | Dedicated tooling, sensitive contacts, and repeat-order assumptions |
| Process | Necessary stages, any approved additional treatment, and limitations |
| Inspection | Delivered condition, measurement setup, reporting, and sampling |
| Deviations | Which requirements cannot be met as drawn and who approves changes |
| Delivery | Packaging, identification, and handling requirements |
Allow a supplier to propose a manufacturable change, such as a more supportive flange or a larger internal radius, when function permits. Ask for the affected geometry to be marked clearly. Assess the proposal through the design owner rather than silently allowing the drawing and supplied component to diverge.
For custom CNC milling in aluminum, feasibility, inspection effort, price, and delivery should be reviewed against the actual drawing and order. General website guidance cannot replace that agreement.
FAQ
Why can a thin-wall part move after unclamping?
Clamping may hold it in an elastically deformed shape, and material removal can redistribute stress. Thermal conditions or handling may also contribute. Identify the mechanism through a controlled review rather than assuming every change has the same cause.
Should flatness be checked free or restrained?
Use the condition required by the controlled drawing and applicable specification. Define orientation and supports in either case. If restraint represents assembly, document how it is applied; do not let the inspection setup supply an unspecified flattening force.
What is the minimum wall thickness for CNC machining?
There is no universal value. Wall height, unsupported span, material, geometry, tooling access, tolerances, and process all matter. Ask the supplier to review your model and requirements rather than adopting another service’s published limit.
Can a CMM eliminate fixture-related measurement errors?
No instrument eliminates an unsuitable setup. A coordinate measuring machine can measure the shape held in its fixture, including deformation caused by that fixture. The support, restraint, probing approach, and evaluation method must match the intended acceptance condition.
Are additional machining stages always necessary?
No. Their value depends on the part and required outcome. Ask how the proposed sequence controls the identified risk and what evidence will support acceptance. Avoid demanding extra operations that have no agreed functional purpose.
Conclusion
Reliable thin-wall procurement connects geometry with the condition in which it must perform and be measured. Review the fixture load path, machining sequence, material condition, inspection setup, finishing, and handling as one plan. Clear acceptance conditions make supplier quotations and receiving decisions easier to compare.
Get a Quote for Your Thin-Wall CNC Part
Send YILIU your drawing, model, material condition, quantity, finish, critical tolerances, and support or restraint requirements. Include assembly information where it affects acceptance. Send your requirements to discuss machining feasibility, inspection, and delivery before quotation.
