Blind Tapped Holes in CNC Parts: Thread Depth, Drill Depth, and Buyer Checks

Introduction

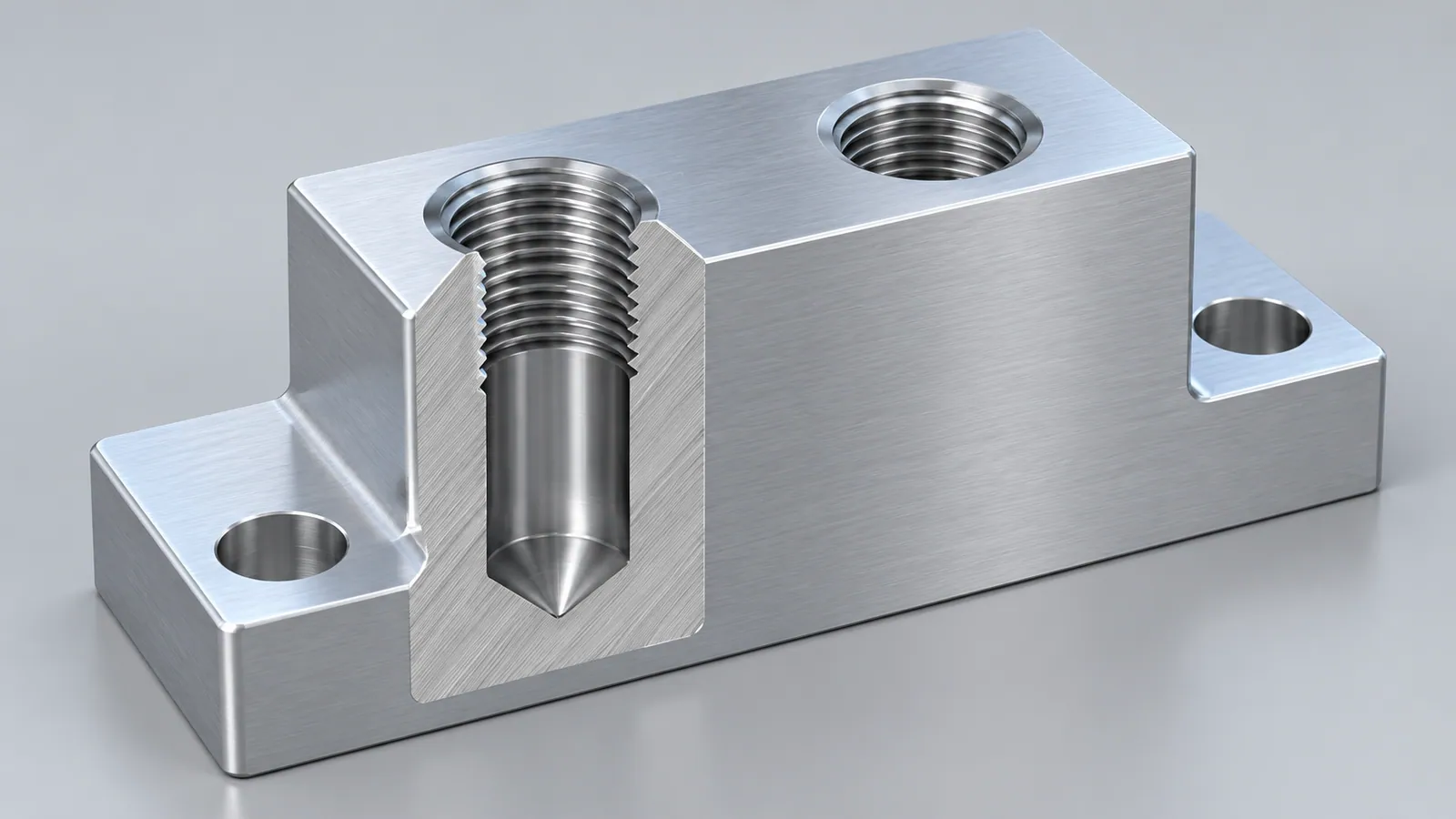

A blind tapped hole looks straightforward in a CAD model. In an assembly, however, the screw must develop the intended engagement without hitting the bottom, damaging the entrance, or trapping debris. A purchase order that says only “M6 blind hole” leaves several decisions unresolved.

The direct answer: specify the required usable full-thread depth separately from the permitted drilled-hole depth. Identify the reference face, thread designation and tolerance, entrance geometry, finish condition, and acceptance method. The extra drilling allowance depends on the selected tool, thread-making process, chip space, and remaining wall; it is not one universal number.

This guide addresses fastening threads in custom CNC components, including mounting blocks, brackets, and equipment housings. It does not establish a joint load rating or a machining capability guarantee. The examples are engineering planning scenarios, not reports of completed customer projects. For sealing connections, use the separate NPT, BSPT, and BSPP guide.

1. Separate the Four Depths Before Quotation

Four different lengths can appear in a discussion about one blind hole. State which one the drawing controls.

Define the measurement origin

A chamfer, counterbore, or recessed seating face changes where usable thread starts. A depth measured from the exterior surface can include an unthreaded entrance. If the assembly needs a minimum length of complete thread below a counterbore, show that relationship explicitly.

Include a section view when the bottom wall or an intersecting passage matters. A model that ends a cylindrical hole at a flat plane may not communicate whether a drill-point extension is permitted. The engineer should control the functional boundaries; the supplier should confirm a workable process inside those boundaries.

For a useful thought experiment, imagine two holes with equal overall depth. One has a long entrance counterbore, while the other starts threading near the top face. Their available engagement can differ even though a depth probe reaches the same bottom position. Overall depth alone cannot settle acceptance.

2. Allow Space for the Actual Threading Process

The machining route affects the bottom region. Asking for complete thread exactly to the drilled bottom can create a requirement that the proposed tool cannot meet.

Cutting taps and bottoming taps

A cutting tap has a lead or chamfer region that progressively forms the thread. Its first cutting teeth do not produce a complete profile immediately. A bottoming design shortens this region, but still needs clearance for its geometry and safe motion. Do not interpret “bottoming” as permission for the tool to strike the hole bottom.

Tap style also influences chip movement. OSG’s tap terminology and application information distinguishes spiral-flute taps used to draw suitable chips back from blind holes, spiral-point tools that tend to drive chips forward, and forming taps that displace suitable material rather than cutting chips. These are process-selection considerations, not interchangeable choices for every alloy.

Thread milling and forming

Thread milling can offer an alternative when access, machine motion, and hole size permit. Its cutter still has an envelope, an approach path, and a reach limit. Ask the supplier to confirm the achievable full-thread depth rather than assuming a change of process removes every clearance constraint.

The Sandvik Coromant threading application guide discusses thread milling as an alternative to tapping, including chip-control and tooling considerations. Selection remains specific to the part and production plan. Form tapping additionally requires suitable material and a correctly controlled pre-hole; a cutting-tap drill specification should not simply be reused.

When reviewing a quote, ask whether the supplier is proposing a different thread-making method and whether that changes any agreed inspection or surface requirements. Control the resulting feature without prescribing an unnecessary production restriction.

The Protolabs threading design guidance illustrates how a manufacturer’s tooling and access rules shape its offered features. Those service-specific limits are not universal machining limits or YILIU specifications. Discuss the actual part through CNC milling and its aluminum material requirements where relevant.

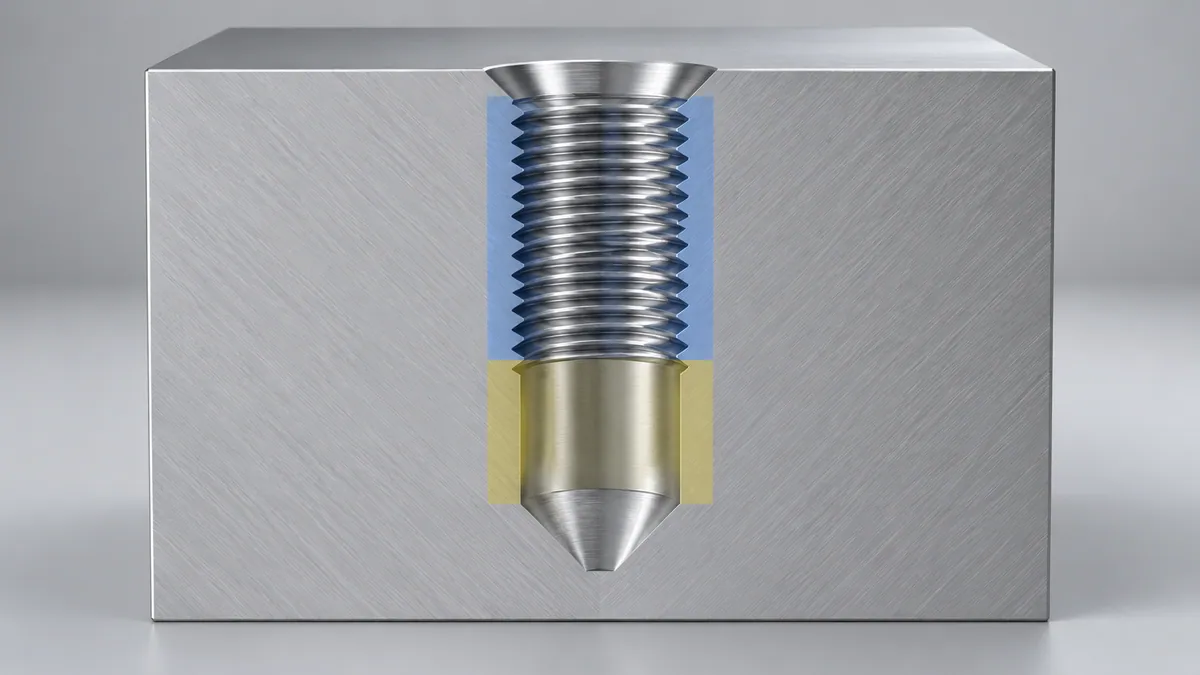

3. Set Drill Clearance Without Losing the Bottom Wall

A practical depth review works from two directions: enough room below the required complete thread, and enough material beyond the deepest permitted drilling. Both must hold throughout the tolerances.

The allowance below usable thread must accommodate the actual process. Relevant inputs include the tool’s lead geometry, incomplete thread region, drilling point, chip-management approach, and machine clearance. Sandvik’s tapping operation guidance emphasizes matching the tap, drill, clamping, and coolant approach to the application. It does not provide a universal extra depth for every blind hole.

Use a depth envelope

Ask the supplier to identify the minimum process space needed below the required complete thread and the deepest resulting material removal. Compare that envelope with the nearest external surface, pocket, or internal passage. A section through the actual closest feature is more useful than checking only the part’s nominal thickness.

Avoid resolving a conflict by silently reducing thread depth or allowing breakthrough. Options might include a different tool, a shorter screw and redesigned joint, a through hole where function permits, or a revised local wall. The design owner should approve the functional change.

Record whether the maximum hole depth is measured to the drill point or the full-diameter shoulder. These limits protect different geometry. If a thin wall separates the hole from a fluid passage, specify the remaining material requirement and any additional integrity test separately; thread inspection does not establish pressure containment.

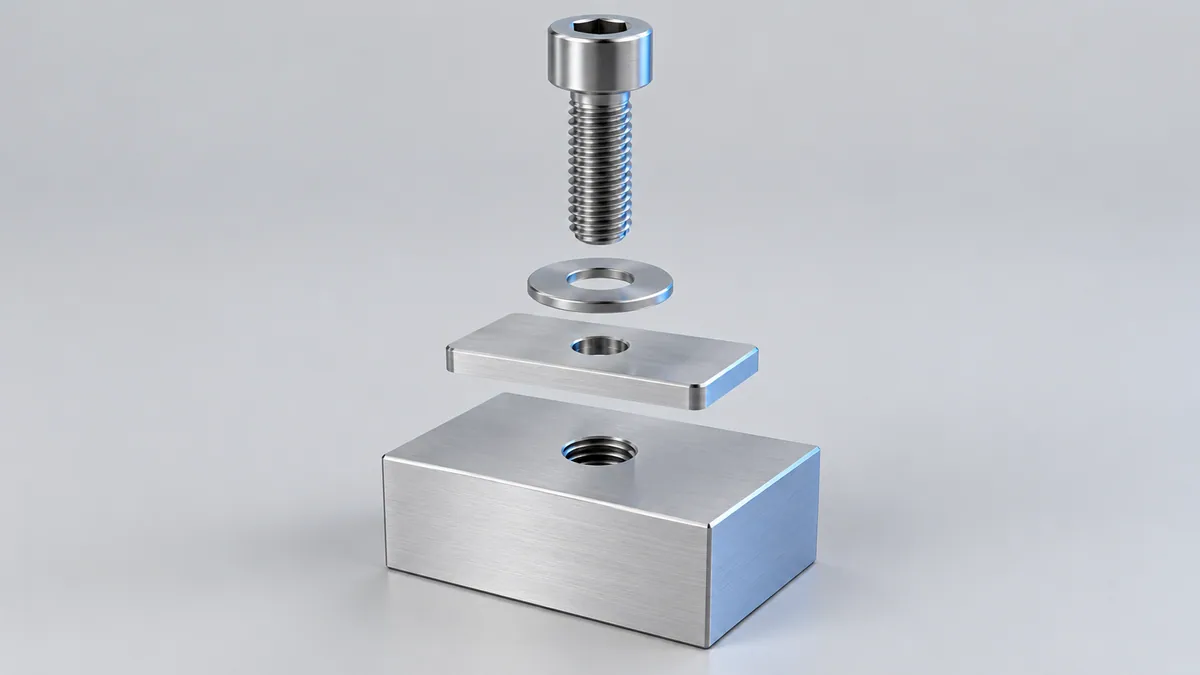

4. Check the Screw and the Assembly Stack

Usable internal thread is only one side of the connection. The mating screw, washer, bracket, and seating surfaces determine how much of it is actually engaged.

In a simplified stack, screw penetration below the tapped face equals the screw length under its head minus the clamped stack thickness. That is a starting geometry relationship, not a complete strength calculation. Thread runout, screw-tip shape, internal entrance chamfer, countersinks, and positional relationships can reduce effective engagement.

Review both tolerance extremes

The longest screw combined with the thinnest stack creates the greatest penetration and potential bottoming risk. The shortest screw combined with the thickest stack creates the least penetration and potential loss of engagement. Check both, using the actual fastener specification and drawing tolerances.

A screw that stops rotating can be contacting the hole bottom rather than clamping the bracket. Tightening torque alone should not be treated as proof of correct assembly. Installation preparation should therefore include screw-length verification, clean interfaces, and the approved tightening procedure.

Bossard’s engagement-length guidance explains that required engagement depends on the material strength of the internally threaded component. Its engagement calculator also distinguishes effective overlap from non-effective entrance and end regions. Do not substitute a simple diameter multiple for a joint assessment involving load, fastener strength, fatigue, or repeated assembly.

Send a Reviewable Tapped-Hole RFQ

Provide a controlled drawing and model, then attach the assembly constraints that the model cannot express clearly. Start with the CNC RFQ checklist and flag blind threads as characteristics requiring review.

• Complete thread designation, pitch, hand, tolerance class, quantity, and drawing revision.
• Minimum usable full-thread depth, measurement origin, and permitted entrance geometry.
• Maximum drilled depth, its definition, and critical remaining wall or forbidden breakthrough zones.
• Material grade, condition, surface finish, and whether thread acceptance applies after finishing.
• Mating fastener specification, clamped-stack range, and functional assembly concerns.
• Inspection requirements, sampling agreement, reporting format, packaging, and order quantity.

Request written clarification of any proposed departure before approving manufacture. If the supplier cannot meet the depth envelope, ask for a marked-up alternative with the affected feature identified. A documented decision is easier to review than an ambiguous note to “tap as deep as possible.”

For example, consider a housing where the same screw passes through either of two interchangeable brackets. The thicker bracket may govern minimum engagement, while the thinner bracket governs maximum penetration. Sending only the housing model hides that relationship. A short assembly note identifying both approved stack conditions gives the manufacturer a more useful review boundary. It also helps purchasing compare quotations against the same requirement instead of accepting one supplier’s interpretation of a nominal hole depth. This is a hypothetical review scenario, not a completed YILIU project.

5. Include Finishing, Burrs, and Cleanliness

The final delivered condition must match the condition used to define thread acceptance. Coatings and treatments can affect fit and geometry. For aluminum parts, connect the thread note with the anodizing tolerance plan rather than treating finishing as a separate cosmetic step.

Clarify whether masking, process allowance, or another approved method is required. Do not assume that chasing a thread after finishing is acceptable: it can remove protection and alter the specified delivered condition. The responsible parties should agree on the sequence and its consequences.

Make hidden contamination reviewable

A blind hole can retain cutting fluid or loose chips that are difficult to notice from the entrance. Customer requirements should describe the needed delivered state and any objective cleanliness acceptance criteria. “Clean” alone may be too subjective for a component assembled near sensitive equipment.

Define entrance deburring without allowing uncontrolled material removal from usable threads. Where a drilled passage intersects the threaded feature, include that intersection in the burr review. If the product application has special cleanliness needs, agree on a suitable inspection method and packaging protection. Do not claim that ordinary visual inspection certifies the absence of every internal particle.

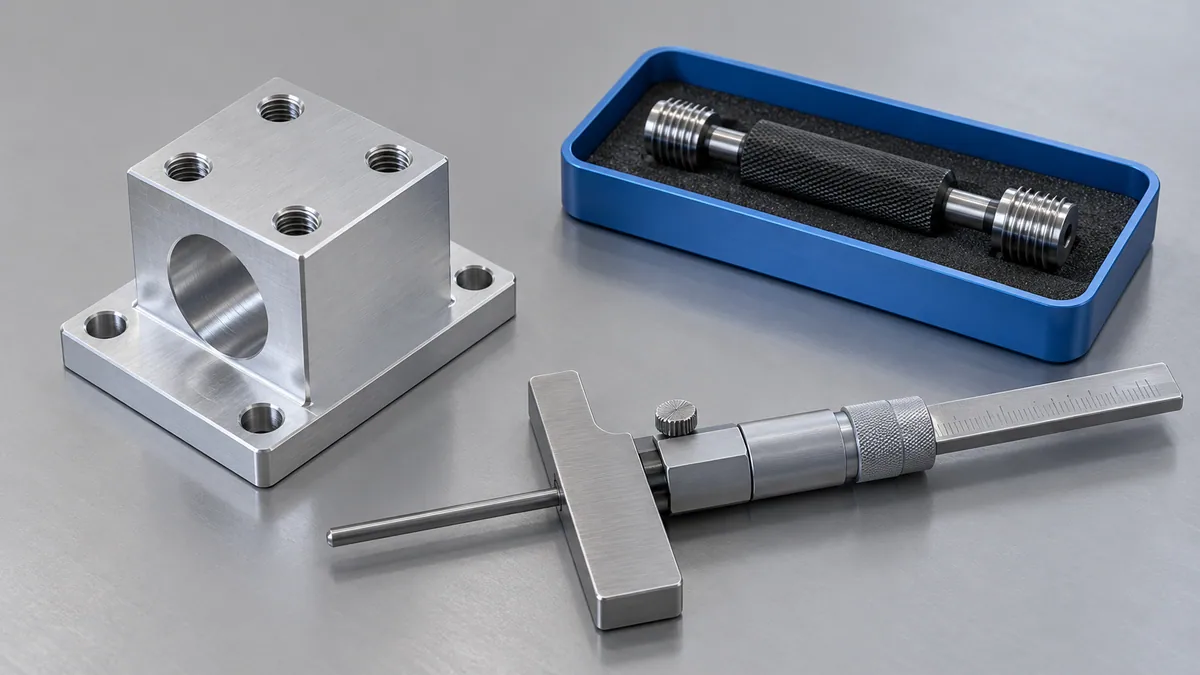

6. Define Inspection Before Production

A sensible inspection plan separates thread conformance, depth, location, and assembly function. One successful check rarely proves all four.

Understand the gauge’s limits

A thread plug gauge is not automatically a depth-measuring instrument. A gauge can reach a region containing incomplete threads, or stop because of debris, damage, or bottom contact. A depth determination must account for the gauge’s own lead and the definition being checked. Agree on the method instead of reporting insertion length as usable thread without qualification.

Similarly, a depth probe reaching the drill tip does not prove full-diameter clearance or complete thread length. Select the measurement approach around the specified characteristic and available access. If direct measurement is difficult, discuss suitable verification during first-article planning before the batch is underway.

The first-article inspection guide can help organize characteristic numbers, results, and deviations. Factory testing for assembly, retention, or another function should have its own agreed procedure and acceptance limits. No gauge result alone proves joint strength or successful service operation.

7. Prevent Rework at Shipment and Receiving

Before shipment inspection, reconcile the part revision, finishing status, and inspection record. Keep a clear link between the delivered batch and any accepted deviation. A record for an earlier revision should not silently stand in for the current order.

Protect threaded entrances from impact and keep the agreed cleaned condition through handling. Any plugs or caps must be suitable for the finish and should not introduce debris. Separate parts where contact could damage functional surfaces; identify the material and revision through the agreed labeling system.

Receiving teams should check more than whether a sample screw enters the hole. Confirm the applicable inspection evidence, inspect for handling damage, and use the agreed acceptance method. A production screw can reveal a fit concern, but it does not replace a controlled thread gauge or depth check.

Where an assembly issue appears, retain the affected screw, washer, and bracket information alongside the part identification. This makes it possible to distinguish inadequate thread depth from an incorrect fastener or stack change. Route corrective action through a documented review rather than modifying the hole during receiving without approval.

FAQ

How much deeper should I drill a blind tapped hole?

There is no universal allowance. Start with the required complete-thread depth, then have the supplier confirm the selected tool’s lead, incomplete-thread region, clearance, chip-management needs, and drill-point geometry. Check the deepest permitted removal against the remaining wall.

Can a bottoming tap produce full thread to the bottom?

It can reduce the incomplete-thread region compared with a longer-lead tap, but it still has geometry and clearance requirements. Specify the usable thread you need and confirm feasibility; do not assume the name guarantees zero bottom clearance.

Is deeper thread always stronger?

No simple depth rule establishes joint strength. Engagement requirements depend on the fastener, internal-thread material, geometry, loading, and failure criteria. Additional depth can also increase manufacturing difficulty. Have the design owner establish the required effective engagement.

Should the holes be checked after finishing?

Acceptance should address the specified delivered condition. Define which checks occur before and after treatment and how masking or any subsequent machining is controlled. An acceptable uncoated thread does not by itself prove an acceptable coated thread.

What should a buyer do if a screw bottoms out?

Stop and compare the actual screw length, clamped stack, hole geometry, and debris condition against the released requirements. Do not assume the hole alone is wrong or shorten the fastener without engineering approval. Record the findings and agree on corrective action.

Conclusion

A reliable blind tapped-hole specification connects usable thread, drilled depth, assembly engagement, finishing, and inspection. Define each characteristic from a clear origin and resolve tool-clearance conflicts before production. Keep the load assessment separate from dimensional acceptance, then preserve the approved requirements through shipment and installation.
