NPT vs. BSPT vs. BSPP Threads for CNC Parts: A Buyer’s Guide

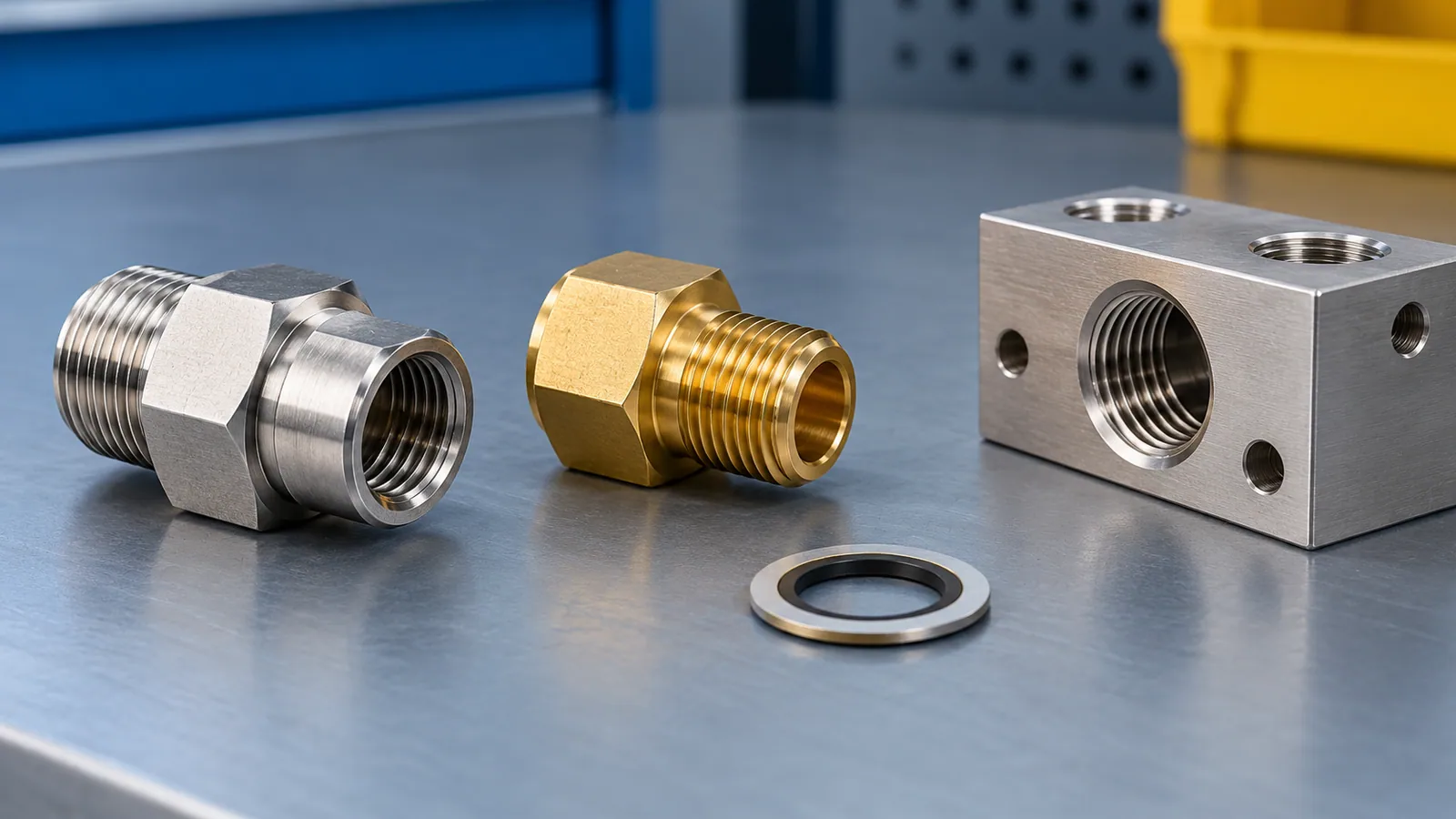

Introduction

A threaded connector can look correct, enter a mating port, and still be the wrong component. For overseas CNC purchases, an incomplete callout such as “quarter-inch pipe thread” leaves the supplier to interpret the thread system, sealing arrangement, and acceptance method. Those assumptions can become an assembly problem after the parts arrive.

NPT, BSPT, and BSPP describe different thread requirements. Choosing among them begins with the mating connection and product application, rather than the destination country alone. A machine sold in Europe may contain an NPT instrument, while a North American assembly may use a parallel connection specified by its equipment manufacturer.

This guide explains the differences and the information buyers should put into drawings, quotations, inspection plans, and receiving instructions. The purchasing scenarios are illustrative. They are not completed customer projects or evidence that a particular connection has passed testing.

Quick Answer: Are NPT, BSPT, and BSPP Interchangeable?

Do not specify NPT, BSPT, and BSPP as interchangeable threads. NPT uses a different thread profile from the BSP systems. BSPP is parallel, while ISO 7 connections commonly called BSPT use a tapered external thread with a specified mating internal form. Confirm the complete connection, including where it seals.

The profile comparison is discussed in Swagelok’s explanation of basic pipe threads. The contracted drawing and applicable standards determine manufacturing acceptance.

1. Identify the Connection Before Choosing a Thread

Start with the approved mating component. Record its manufacturer part number, drawing, connection designation, and relevant interface requirements. A replacement part should reproduce the required connection, including any seat, shoulder, gasket face, or seal location.

Do Not Select by Geography Alone

Regional conventions can suggest questions to ask, but they cannot replace the equipment specification. A procurement note saying “US version” is insufficient when an assembly includes components from several sources.

If a product needs separate versions, assign controlled part numbers or clearly defined configuration options. Identify each port individually when one manifold contains more than one thread system. The purchasing team should not have to reconstruct a mixed-port design from email history.

Locate the Sealing Surface

Ask where the joint is intended to become pressure tight. In a conventional thread-sealing connection, the thread relationship and approved sealing material are part of the arrangement. With a parallel fastening thread, another feature generally provides the seal.

The distinction is explicit in the scopes of ISO 7-1 and ISO 228-1. A matching thread designation by itself does not define every feature of the assembled connection.

2. Understand the Differences That Affect Compatibility

NPT and BSP tapered connections can be difficult to distinguish visually. Similar diameters, common nominal size names, and partial engagement can create false confidence. The profile, pitch, taper, and connection geometry must agree with the specified system.

Nominal Size Is Not a Caliper Dimension

A nominal pipe size is a designation, not an instruction to machine that number as the thread outside diameter. A request for a “1/4-inch thread” must identify which system and size designation it means.

At a nominal quarter-inch size, NPT uses 18 threads per inch, while the corresponding BSP forms use 19. The Swagelok identification tables also show that some other sizes share a pitch across systems, so a pitch match alone is still insufficient. Use a controlled reference rather than identifying a thread from one measurement.

Distinguish BSPT from BSPP and Rp

BSPP commonly refers to parallel G threads under ISO 228-1. For ISO 7-1 connections, R identifies an external taper thread, Rc an internal taper thread, and Rp an internal parallel thread. The drawing should name the required form rather than simply saying “BSP.”

An Rp thread should not be assumed equivalent to a G thread because both are parallel. They belong to different specification contexts. Resolve the actual mating arrangement before manufacturing a replacement or approving a substitution.

3. Specify the Complete Threaded Connection

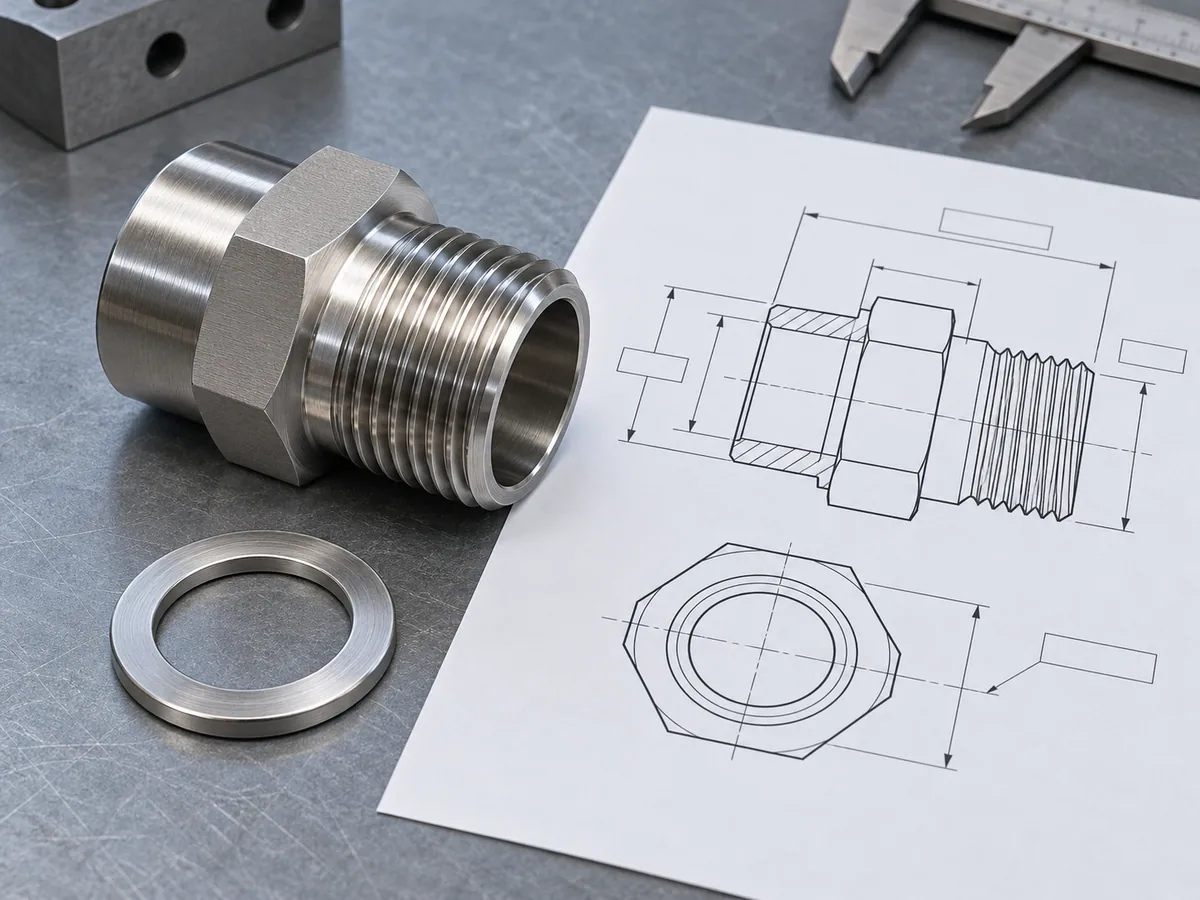

The callout must let the supplier identify the requirement without guessing. Include the governing thread standard, size and pitch where applicable, internal or external form, and any required tolerance designation. Specify the applicable revision through the purchasing documents.

Treat Short Callouts as Starting Points

Examples such as 1/4-18 NPT, R 1/4, Rc 1/4, Rp 1/4, and G 1/4 identify different requirements. They are examples of designations, not complete manufacturing instructions for an arbitrary connector.

The drawing also needs usable thread length or depth, port orientation, access, entry details, and relevant sealing geometry. Show how the threaded feature relates to the part datums where assembly alignment matters.

Define Sealing Features Separately

For a parallel connection, identify the approved seal arrangement and associated dimensions. A sealing face may need flatness, texture, or defect limits that are not established by the G thread alone.

For example, ISO 1179-1 addresses threaded ports used with ISO 228-1 threads and specified sealing arrangements. Determine whether that or another connection specification applies to the design rather than adding a generic washer assumption.

Control Model and Drawing Differences

Models may use simplified or cosmetic thread representations. Establish which document controls the manufactured thread. Keep drawing revision, model revision, and purchasing clarifications connected to the production order.

4. Review CNC Manufacturing Access and Material

A clear thread callout is necessary, but the surrounding component must also be manufacturable. Blind ports, intersecting passages, narrow shoulders, and closely spaced features can affect tools, workholding, and inspection access.

Separate Hole Depth from Usable Thread Depth

The total drilled depth and the available functional thread length are different requirements. Entry geometry, incomplete thread regions, and tool clearance can reduce the usable length in a blind feature.

State the required engagement or usable depth using the drawing convention appropriate to the design. Ask the supplier to identify conflicts between the requested depth and the available wall or passage geometry. Do not resolve them by silently shortening the requirement.

Include Material and Surface Condition

Specify the alloy, condition, and any finishing operation. Stainless steel, brass, and aluminum do not have identical machining and handling considerations. Burr removal and cleanliness also matter where threads intersect internal passages.

If the part is anodized or plated, define the finished thread requirement and inspection stage. Treatment can change the available fit. The anodizing tolerance guide explains why final dimensions and masking need to be considered before machining.

Send Your Thread and Connection Requirements

Send YILIU your model, controlled drawing, thread designations, mating-part information, material, quantity, and surface requirements. Identify the sealing arrangement and any unresolved interface questions. Request a quotation that states manufacturing assumptions and inspection scope clearly.

For the complete submission package, use the CNC RFQ preparation guide.

5. Compare Quotations on the Same Basis

Two offers for a “threaded fitting” may include different features, gauges, treatments, or records. Compare the complete finished requirement before comparing unit prices.

Ask What the Quotation Includes

Confirm the thread system at each end, the specified material condition, sealing features, finishing, deburring, cleaning, and inspection. If seals or washers are part of the supply, identify their approved specification and who is responsible for selection.

A supplier should not be expected to choose a seal material from the thread size alone. Media, temperature, mating geometry, and application requirements must be evaluated by the responsible design owner.

Keep Alternatives Distinguishable

If an alternative thread or adapter arrangement is proposed, treat it as a separate technical proposal. Document the affected interfaces and obtain approval before changing the drawing or order.

A lower-cost quotation with a different connection is not an equivalent offer. An approved alternative can be useful, but the buyer must understand which part of the assembly changes and what verification follows.

6. Plan Thread Inspection and Functional Testing

Inspection should verify the specified thread and the features needed for the connection. A photograph of clean threads or a sample fitting screwed into a port does not establish complete conformance.

Use Suitable Gauges and Procedures

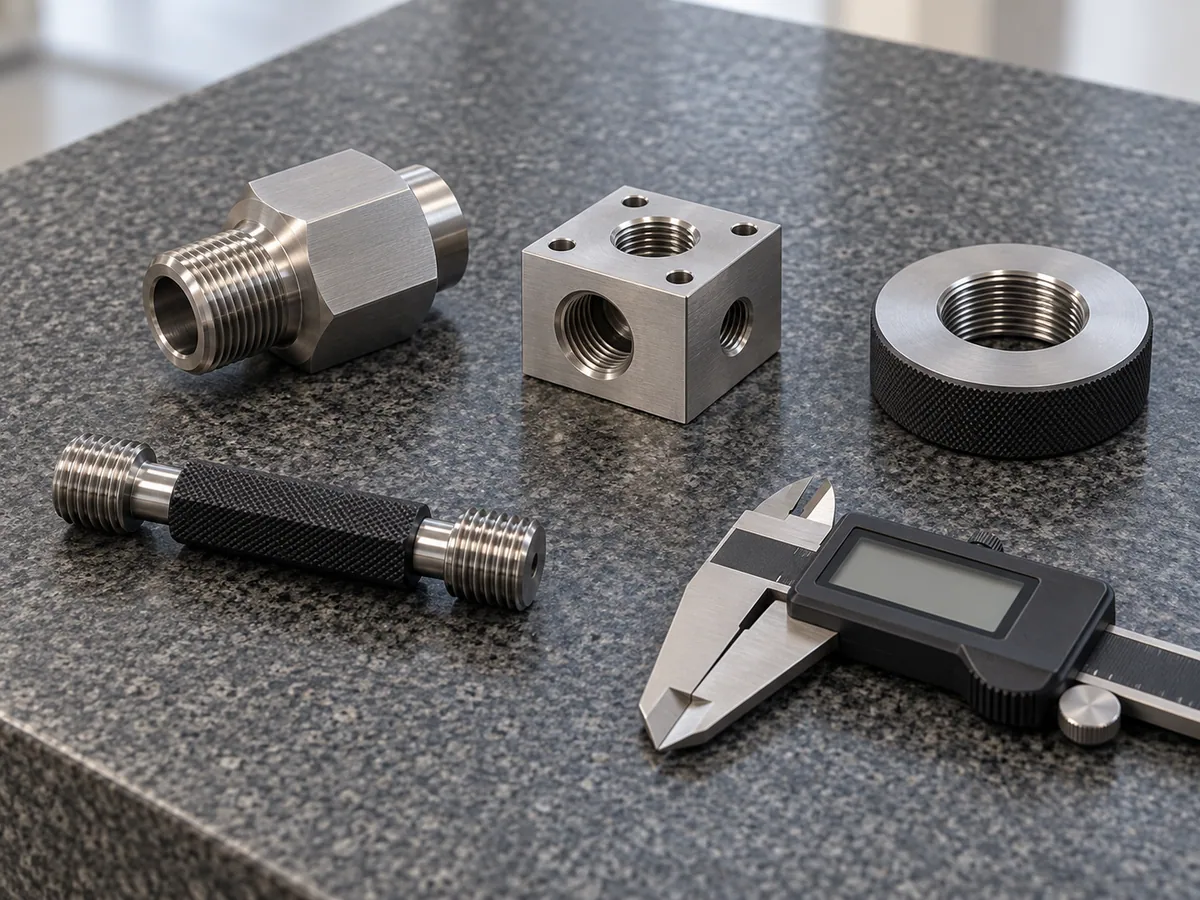

Agree on the applicable plug, ring, or other gauges and their inspection procedure. Taper-thread acceptance must follow the required gauge interpretation, not a universal rule about how many turns a gauge should enter.

The ASME B1.20.1 overview identifies dimensions and gauging as part of the standard’s scope. Gauge identity, condition, calibration control, and the required acceptance stage belong in the inspection plan.

Define Factory Testing as a Separate Activity

If factory testing includes a leak or pressure test, agree on the authorized procedure, test medium, conditions, sample quantity, acceptance criterion, and report. Identify any required mating hardware and sealing materials.

Thread inspection does not establish a pressure rating for the assembled system. Likewise, a leak result under one agreed condition does not prove every dimension or every operating condition. Keep each result connected to the specific part and test scope.

Make Sample Approval Traceable

For a first order, identify the sample, drawing revision, material lot where required, finishing condition, and report. If the process changes after sample approval, review whether additional evidence is needed. See the first article inspection guide for a broader release checklist.

7. Resolve Assembly Problems Without Unapproved Rework

If a connector stops unexpectedly or shows unusual engagement, stop the assembly attempt and compare the controlled requirements. Forcing a connection can damage threads and obscure the original condition.

Check Identity Before Adjusting the Part

Verify part number, revision, thread designation, mating component, and final surface condition. Examine whether protection or contamination affects the interface. Compare the inspection method if receiving and supplier results disagree.

Do not assume that adding more sealant makes incompatible threads acceptable. Similarly, chasing a treated thread can remove coating and change the supplied condition. Any rework needs an approved route and verification of the affected requirements.

Keep Deviations Limited to Their Approval

If a customer accepts a particular deviation, record the quantity, affected characteristic, and conditions. A one-time acceptance should not become the undocumented basis for later orders.

Update the controlled specification when a permanent engineering change is approved. Retain enough history to explain which drawings and records apply to each supplied lot.

8. Prepare the Shipment and Receiving Check

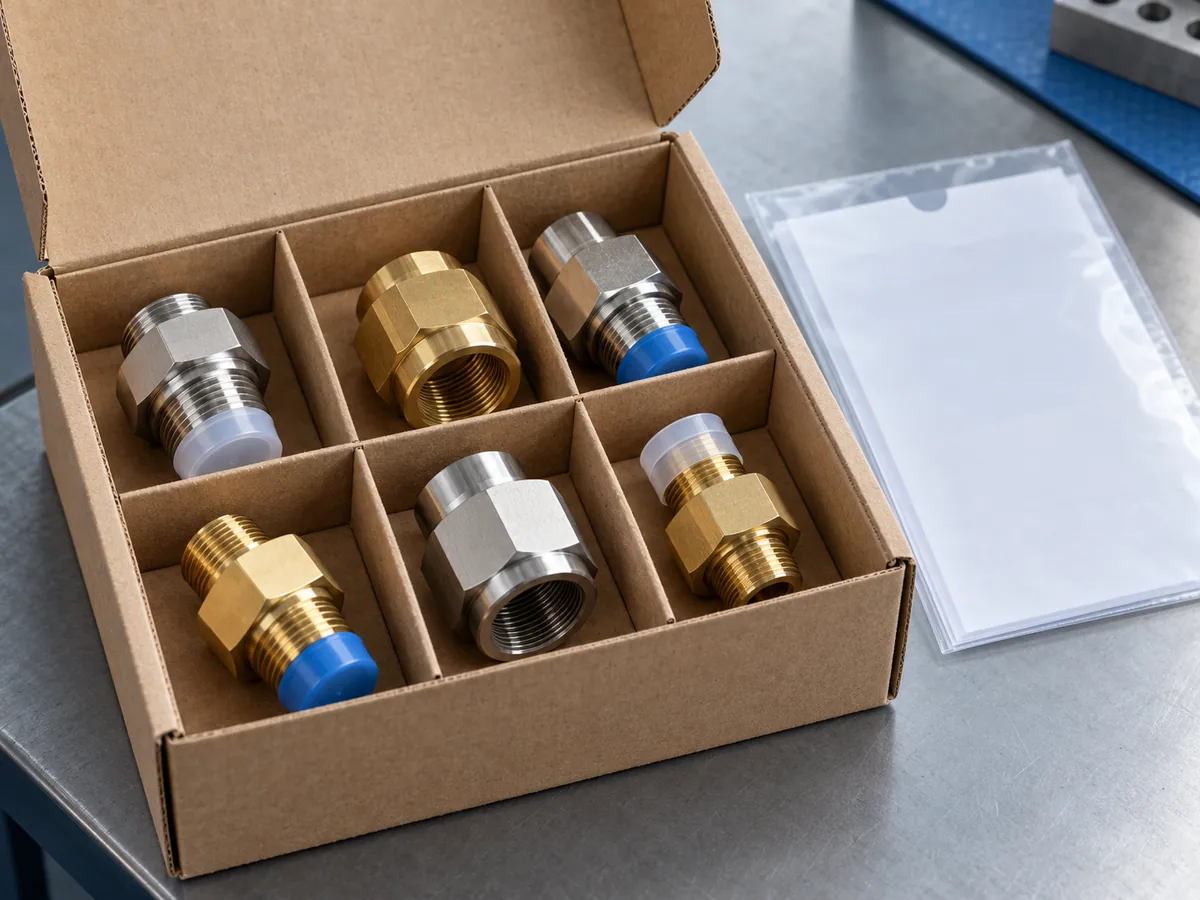

Thread protection and identification deserve attention before dispatch. Different connections may look similar when packed together, and exposed threads or sealing faces can be damaged during handling.

Include Shipment Inspection

Verify part number, revision, quantity, thread variant, final surface condition, and required documents. Keep mixed-port or regional variants distinguishable. Protect delicate external threads and keep loose parts from contacting sealing surfaces.

Packaging photographs can show separation, caps, and identification when agreed. They cannot prove thread conformance or substitute for a required test report. AI-generated packaging illustrations describe a concept and must not be used as evidence of an actual shipment.

Explain Installation Preparation

Tell the receiving team how to identify the variants, remove temporary protection, and check cleanliness before assembly. Refer to the approved connection and equipment instructions for sealing materials and assembly procedures.

Avoid supplying an assumed universal torque or engagement count. Those instructions depend on the connection, material, seal arrangement, and application. If the requirements remain unresolved, address them before installation begins.

Three Practical Purchasing Scenarios

Replacing a Connector from a Physical Sample

A buyer has a sample but no reliable callout. Measure it using suitable identification tools and compare the mating equipment records. Treat the result as an identification exercise requiring confirmation, rather than assuming the first fitting that enters is correct.

Ordering a Manifold with Different Port Types

Identify every port on the drawing and link it to its exact connection requirement. Include machining access, internal passage deburring, sealing faces, and inspection. Assign unambiguous configuration identification for future orders.

Changing a Coated Aluminum Adapter

Confirm the material, treatment, final thread condition, and mating interface before approving a substitute. Evaluate inspection after treatment and the effect of any proposed rework on protection or sealing features.

FAQ

Can NPT and BSPT threads be connected directly?

Do not treat them as interchangeable. Similar size or partial engagement does not establish the correct profile, dimensions, sealing behavior, or connection suitability.

Is BSPP the same as BSPT?

No. BSPP commonly refers to parallel G threads under ISO 228-1. ISO 7-1 connections commonly called BSPT require the specified external and internal forms. Confirm the full designation.

Can a caliper identify the correct thread?

A caliper provides useful dimensional clues, but one diameter reading cannot establish thread identity or conformance. Consider pitch, form, taper, connection geometry, and controlled reference information.

Does a G thread define the sealing washer?

No. Specify the complete sealing arrangement and any applicable connection standard. The thread designation alone does not select the seal material or define all sealing surfaces.

Is NPTF simply another name for NPT?

No. Treat a dryseal requirement as its own specified thread and gauging obligation. Do not substitute a different designation without engineering approval.

Does passing thread inspection prove leak-tight operation?

No. It verifies the agreed thread requirements. Functional testing and application qualification need their own defined procedures and acceptance conditions.

Conclusion

Reliable CNC threaded parts start with a complete connection specification. Identify the mating interface, thread system, form, sealing geometry, material, finished condition, and inspection requirements before ordering.

Keep those requirements connected through quotation, sample approval, shipment inspection, and receiving. Clear documents make competing offers easier to compare and reduce the need for assumptions at assembly.

Request a Quote for Custom Threaded Parts

Share your drawing, model, exact thread requirements, mating-part information, material, quantity, finish, and required reports with YILIU. Describe the product application and any functional tests required by the approved specification so the manufacturing and inspection scope can be reviewed together.

Explore Swiss-turned connectors, CNC turning, and stainless steel machining for related capabilities.
